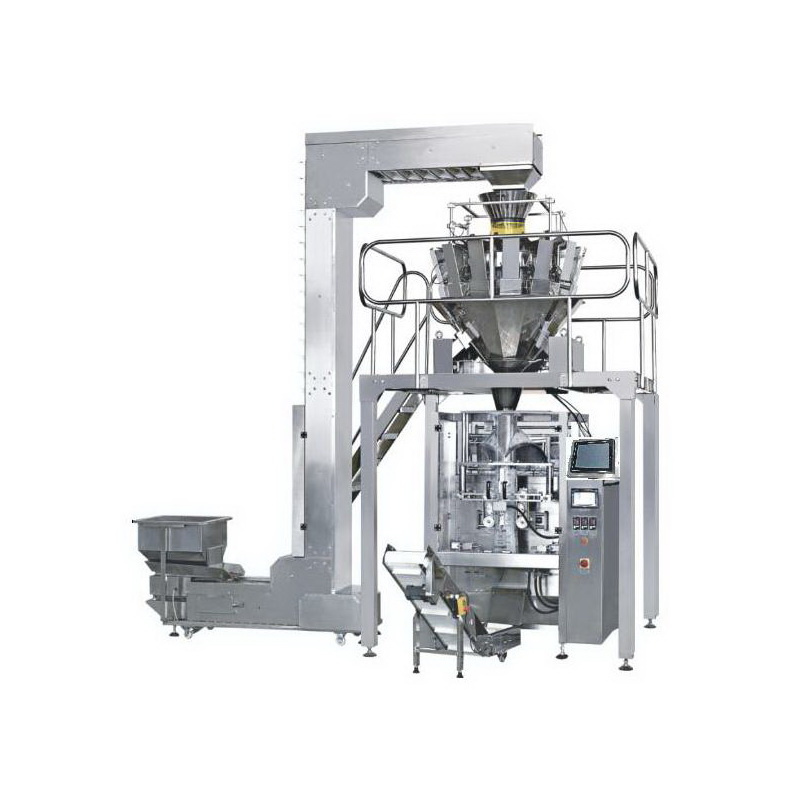

This automatic weighing packing system include:
1. Z bucket elevator:
It is made by 304 stainless steel frame and food class plastic ABS buckets.
The elevator is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc.
For the lifting machine, the hopper is driven by the chains to lift. It's used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.
Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.
Speed: Max 90buckets/min, each bucket 1.8L
Power: 550W Voltage: 220V or 380V 3PHASE
The vibration hopper is 75x45x10cm
2. JY-10HST multihead weigher:
Main Features
1) The most efficient and accurate weight calculation by computer.
2) Circle dump avoid materials drops together to avoid break and pile up
3) 10.1 inch touch screen with multiple languages.
4) Adjustable backlight control for vision protection
5) Compatible with single packaging machine for automatic weighing.
6) Instant hopper vibration index for better control.
7) 50 preset programs for multiple tasks.
8) Individual setting linear vibration amplitude
9) Templated motor drive, convenient for dismantling
10)adopts latest CAN BUS electronics and DSP technology, each head unit with modular system control
| Use range | Food: Snack, candy, sugar, beans, chips, frozen food, sticky food, salad, pet food…
Non food: small screws, buttons, nails, toys… |
| Weight range: | 8g-1500g/dump |
| Max speed | 60bags/min |
| Weight accuracy | ±1g |
| Buckets | 10pc 1.5L weighing buckets |
| Operate language | English, France, Spanish, Hungary, Germany, Finland…. |
| Drive | By step motor |
| Power | 1500W |
| voltage | 110V, 220V, 50/60HZ |
| Net weight/gross weight | 260kg/330kg |
| Machine size | 95x95x100cm |
| Packing size | 108X108X124cm |
3. Working platform
It can made by 304 stainless steel or iron steel, the size can made according to customer requirements.
4. JY-420 vertical packing machine
I. The scope of packaging
It's suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .
II. The major performance and structural feature
*Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;
*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;
* minimize the loss with complete automatic warn protection function;
* supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag ma
* The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.
III. Technical parameter
| Items | Content |
| Packing speed | 5-100 bag/min |
| Bag size | (L)50-300mm (W)60-200mm |
| Bag making mode | Pillow-type bag, standing bag, punch |
| Range of measuring | 150-1300ml |
| The maximum width of packing film | 420mm |
| Thickness of film | 0.04-0.08mm |
| Air consumption | 200L/min 0.7×105Pa |
| Main power/voltage | 2.2KW/220V 50-60Hz |
| Dimension | 1400×970×1600mm |
| Gross weight | 400kg |
5. Discharge conveyor
| Feeding speed | 30m/minute |
| dimension | 2110×340×500mm |
| Voltage | 220V/45W |
| Packing size | 179x48x53cm |
| Net weight | 60kg |
| Gross weight | 85Kg |
Established in 2011, Foshan City Shunde Jingyi Intelligent Machinery Co., Ltd (Formerly: Foshan City Shunde Kedi Engineering Control Equipment Co., Ltd), is professional high-tech enterprise.
Specialized in manufacturing multihead weigher and paint tinting machines.
We have over 15 years manufacturing experience for the above machines, have sold them to many countries with CE certificate.
We accept OEM, can make the machines according to your requirements and print your logo on the machines too.
JINGYI base on KEDI, our good team will serve our old and new customers with better quality products and better service.
