Custom Made High Thermal Conductivity Aln Plate /Pad /Tube
| Price: |
US $ 1.8-2.6/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |

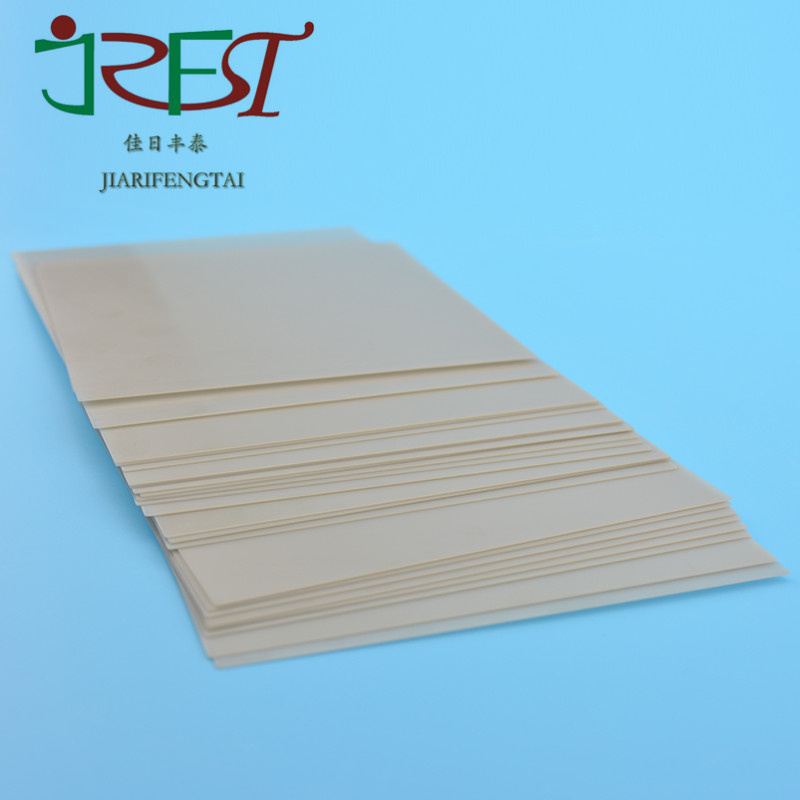

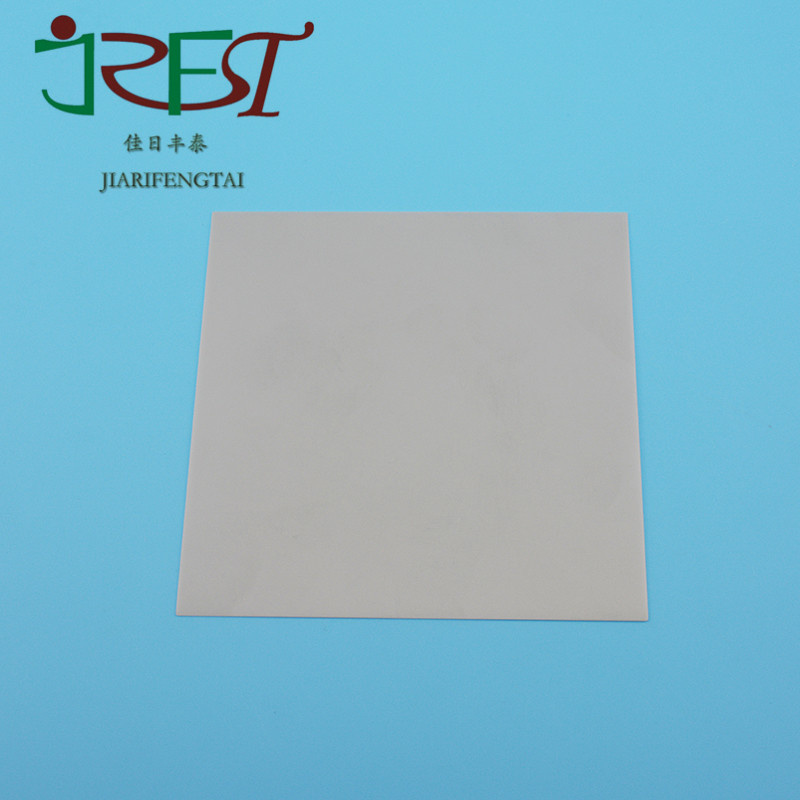

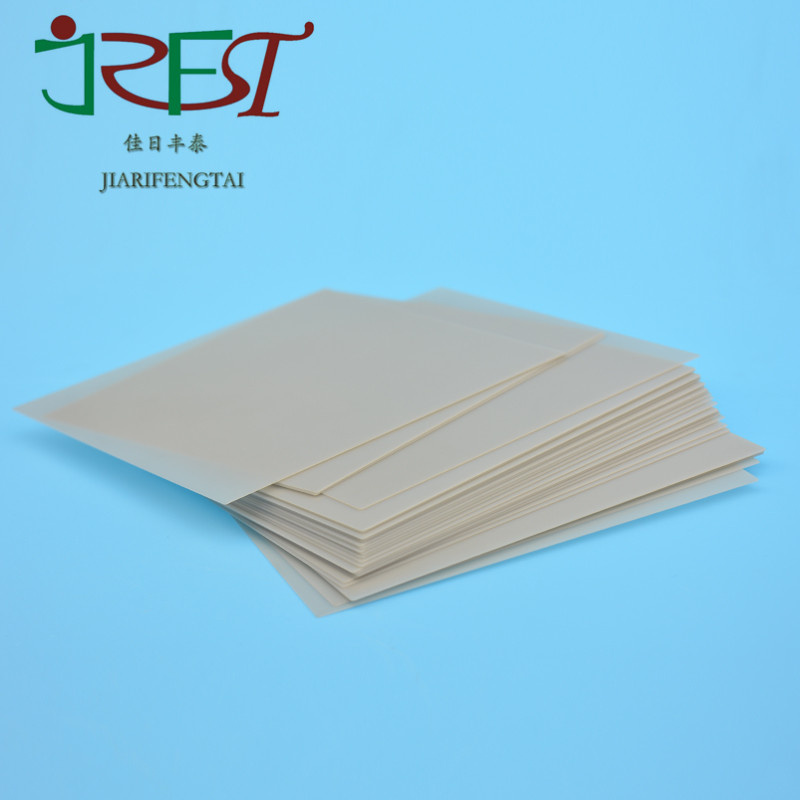

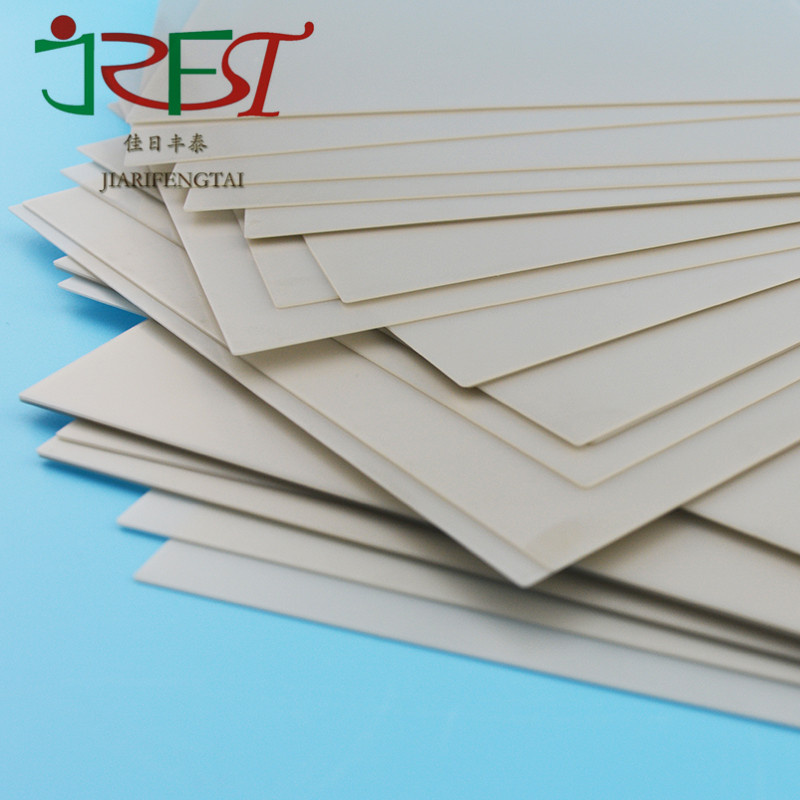

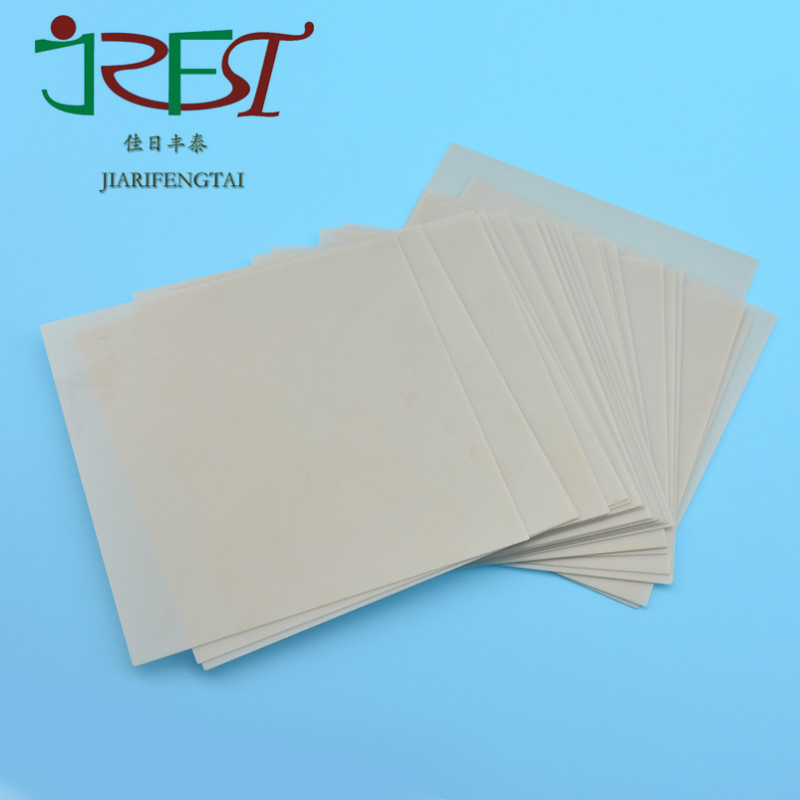

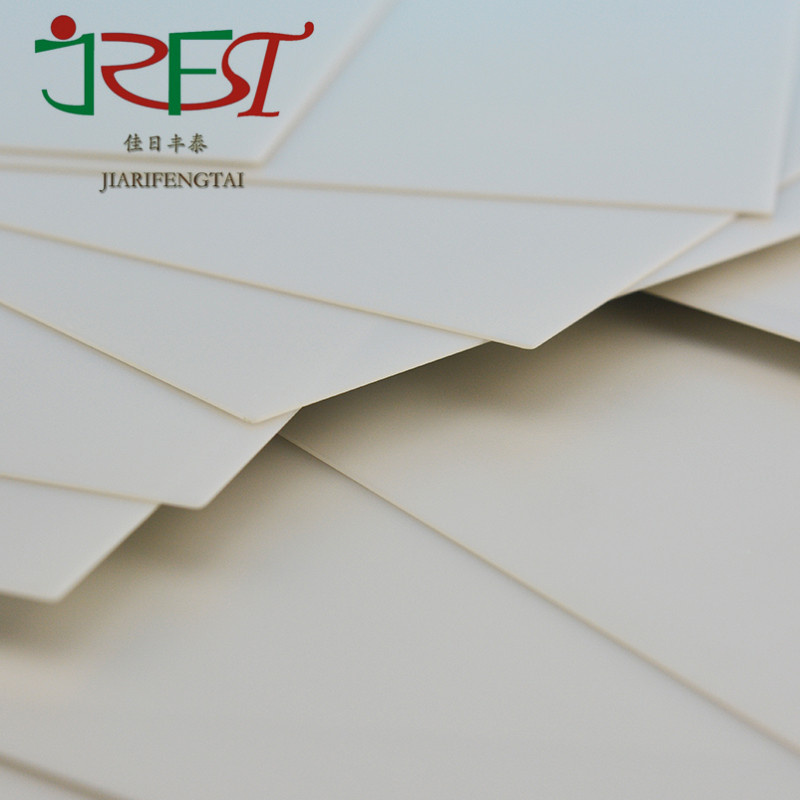

High thermal conductivity aluminum nitride cermaic insulation substrateProduct IntroductionAluminum nitride ceramic thermal plate, high thermal conductivity, low coefficient of expansion, high Strength, high temperature resistance, chemical resistance, high resistivity , low dielectric loss, is the ideal LSI heat dissipation board and packaging materials.Aluminum nitride ceramic plate use heat resistant melt erosion and thermal shock resistance,Can produce GaAs crystal crucible, Al evaporation pan, MHD power generation equipment and highTemperature turbine corrosion resistant parts, using its optical properties can be used as an infrared Window.
Aluminum Nitride Applications1.Heat sinks & heat spreaders 2.Electrical insulators for lasers
3.Chucks, clamp rings for semiconductor processing equipment
4.Electrical insulators 5.Silicon wafer handling and processing
6.Substrates & insulators for microelectronic devices & opto electronic devices
7.Substrates for electronic packages 8.Chip carriers for sensors and detectors
9.Chiplets 10.Collets 11.Laser heat management components
12.Molten metal fixtures 13.Packages for microwave devices
Feature:1.High hardness , diversity 2.High precision and density
3.High reliability and stability 4.High thermal conductivity
5.Extremely abrasive resistance performance 6.Wide scope of application
| PROPERTIES PARAMETERS |
| Test Item/Unit | Numerical Value | Test Item/Unit | Numerical Value |
| Material | AIN | AIN | Al2O3 | Material | AIN | AIN | Al2O3 |
| Volume Density (g/cm3) | 3.335 | 3.32 | 3.6 | Volume Resistance (Ω.cm) | 1.4×1014 | 1.4×1013 | 1.4×1014 |
| Thermal Shock Resistance | None Crack | Bending Strength (Mpa) | 382.7 | 335 | 380 |
| Chemical Stability (mg/cm3) | 0.97 | 0.97 | 0.97 | Thermal Expansivity (/ºC,5ºC/min,20~300ºC) | 2.805×10.6 | 2.805×10.6 | 6.9×10.6 |
| Breakdown Voltage Strength(kv/mm) | 18.45 | 18.45 | 15 | Roughness Ra(μm) | 0.3~0.5 | 0.3~0.5 | 0.2~0.4 |
| Dielectric Constant (1MHz) | 8.56 | 8.56 | 9.5 | Thermal Conductivity(W/m-k) | 180~190 | 190~210 | 20 |
| Color | Dark Gray | Dark Gray | White | Varpage (length‰) | ≤2‰ | ≤2‰ | Class |
Product specifications:Regular size and models :
0.38mm*114mm*114mm 0.38mm*120mm*120mm
0.5mm*114mm*114mm 0.5mm*120mm*120mm 0.635mm*17mm*12mm 1.0mm*17mm*22mm
1.0mm*140mm*140mm 3.0mm*114mm*114mmSpecial size could be customized.
| Prod Model: |
TC-027 |
| Breakdown Voltage Strength: |
15kv/mm |
| Specific Gravity: |
>=3.6g/cm3 |
| Hardness: |
>=88hra |
| Thermal Conductivity: |
180~230W/M.K |
| Usage: |
High Power Devices |
| Shape: |
Sheet Type |
| Sinterling Temp: |
1780-1880 Degree |
| Name: |
Aluminum Nitride Ceramic Substrate |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Organic Insulation |
| Material: |
Ceramic |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
20KV~100KV |
| Brand: |
Jrft |
Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.
Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.
Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.
High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
