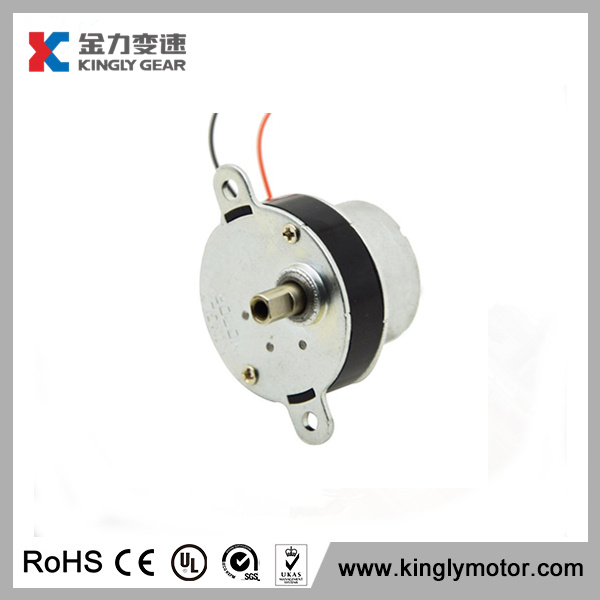

DC Gear Motor For Toy
Typical Applications
Liquid crystal display screan
Dryer drying machine
Automatic door-lock
Power: Approx 0.1W-20W
Voltage: From 1.5v to 24v
Speed: From 2rpm to 3000rpm
Ratio: From 1: 5 to 1: 2340
Torque: From 0.1kg. Cm to 120kg. Cm
Dia: 6mm to 48mm
-Motor's specification and shaft length can be tailor-made according to customer's requirements.
Weclome your inquiry!
| | | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| | VOLTAGE | | | | | | | | |
| MODEL | | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| | V | r/min | A | r/min | A | mM·m | Kg·cm | W | mM·m | Kg·cm | A |
| JL-32B300-142 | 2 | 15 | 0.03 | 11 | 0.07 | 29.4 | 0.3 | 0.034 | 127.4 | 1.3 | 0.017 |
| JL-32B300-360 | 3 | 10 | 0.04 | 8 | 0.09 | 78.4 | 0.8 | 0.065 | 64.7 | 4.6 | 0.3 |
Packing&Shipping
Packing:The plastic membrane cover the foam box, and the products put into the foam box order by order, then use pasteboard cover the carton.Then put the products into the big carton .
Shipping:The products will be sent through Ningbo port, Shenzhen port and Guangdong port or the port that buyers pointed.
Our Service
First: The buyers inquiry will be replied at first time.
Second: The best suitable products will be recommended to buyers according to their requirements.
Third: The order will be arranged as soon as possible.
Forth:we provide the high quality products with high efficiency
Company Introduction
Our kinglymotor company has been business in motor area over ten years with Guangdong and Wuhan two production basements and we produce over hundred types micro dc and ac motors which can be used in many fields such as intelligent robot, home applicants, kitchen applicants etc.With 1000 employees and kinds of automatic production equipment guarantee our company can deliver our customers high quality products on time.
FAQ
Catalogue: ac,dc, brush, brushless, carbon-brush, electric-brush, gear motor. Gearbox.
Payment Terms:T/T L/C western union
Certificate:ROHS,CE CCC
Deliver time:Usually 20 days.
