Desiccant Molecular Sieve 3A for Ethanol Distillation
| Price: |
US $ 1500-1800/Ton |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |

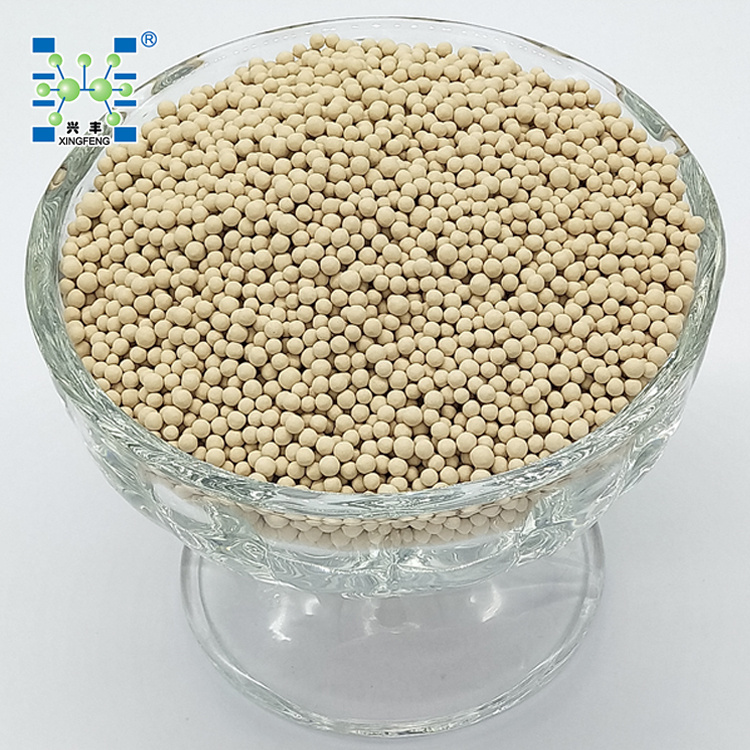

Desiccant Molecular sieve 3A for Ethanol Distillation
Molecular Sieve type 3A is an alkali metal alumino-silicate; it is the potassium form of the type A crystal structure. Type 3A has an effective pore opening of about 3 angstroms (0.3nm). This is large enough to allow in moisture, but excludes molecules such as unsaturated hydrocarbons which can potentially form polymers; and this maximizes lifetime when dehydrating such molecules.Typical Chemical Formula0.4K2O 0.6Na2O Al2O3 2.OSiO2 4.5H2OSiO2 : Al2O3 ≈2 Technical Parameter| Item | Unit | Technical data |
| Shape |
| Pellet | Sphere |
| Diameter | mm | 1.5-1.7 | 3.0-3.3 | 1.7-2.5 | 3.0-5.0 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥98 | ≥98 |
| Bulk density | g/ml | ≥0.65 | ≥0.65 | ≥0.70 | ≥0.70 |
| Wear ratio | % | ≤0.20 | ≤0.25 | ≤0.10 | ≤0.10 |
| Crushing strength | N | ≥45/cm | ≥60/cm | ≥30/p | ≥70/p |
| Static wateadsorption | % | ≥20 | ≥20 | ≥20 | ≥20 |
| Ethylene adsorption | % | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
| Water content, as shipped | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Typical Application *Drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadien) *Cracked Gas Drying *Drying of natural gas, if COS minimization is essential, or a minimum coadsorption of hydrocarbons is required. *Drying of highly polar compounds, such as methanol and ethanol *Drying of liquid alcohol *Static, (non-regenerative) dehydration of insulating glass units, whether air filled or gas-filled. *
Drying of refrigerantsRegenerationMolecular sieve Type 3A can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes. To remove moisture from a 3A molecular sieve, a temperature of 200-230°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C.The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process. Size 3A - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6", 3.2".
Shipping and Packing| Package Type | Container Load Capacity | Delivery time | Quality
Insurance | Payment Terms |
| 20 GP | 40 GP |
| Steel drum, 150kg/drum | 12000 kg | 24000 kg | Within 7-10 days | Chinese National Standard; Offer quality assurance as request. | T/T, L/C, Paypal, West Union |
| Paper drum, 25kg/drum | 9000 kg | 18000 kg |
| Paper box, 25kg/box | 13500 kg | 27000 kg |
| Prod Model: |
1.7-2.5mm, 3.0-5.0mm, 1.6mm, 3.2mm |
| Shape: |
Sphere |
| Sorbent: |
Molecular Sieves |
| Desiccant: |
Chemical Desiccant |
Pingxiang XINGFENG Chemical Packing Co., Ltd. Is a hi-tech enterprise which specialized in researching, manufacturing, engineering construction and technical service, located in Pingxiang City--"the City of Industrial Ceramic of China". Our company was founded in 1992 in Jiangxi province Pingxiang city Dengxinqiao industrial ceramic factory. Since we always pay attention to product quality and integrity of operation, our scale of production and operation is expanding. In 2003, our company invested 50 million yuan to expand the new plant which covers 60000 square meters, to expand our production and operation covers all the tower packings and environment protection industry such as chemical packing, environment protection material, equipment, technical service and etc. Our main product are ceramic ball, molecular sieve, activated alumina, chemical packing, catalyst, chemical auxiliary, ceramic roller, refractory material, exhaust gas treatment equipment, waste water treatment equipment and technical service for all environment protection.
Our products are mainly used in petrochemical, oil refining, air separation, oxygen generation, chemical fertilizer, coal chemical, fine chemical, pharmaceutical, food, sulfuric acid, iron and steel, coking and other industries, and has been unanimously praised by users. We have establish cooperation relationship with many research institutes, and have strong technical support barriers. And we have import & export right, our products sold in more than 100 countries such as the Southeast Asia, the Middle East, America, Europe, Australia and etc.
We not only focus on promoting our products, but also pay more attention to provide high-quality professional technical services, at the same time, we will be a combination of technological innovation and business demand, has already built long time cooperation relationship with many petrochemical, fine chemical, pharmaceutical, steel, coal chemical enterprises, and obtain much economic benefits and social benefit. We sincerely hope that you will establish long time cooperation relationship with us, we will try our best to maximize the benefits for both of our two sides.
XINGFENG, a reliable partner who will create a beautiful future with you together!
