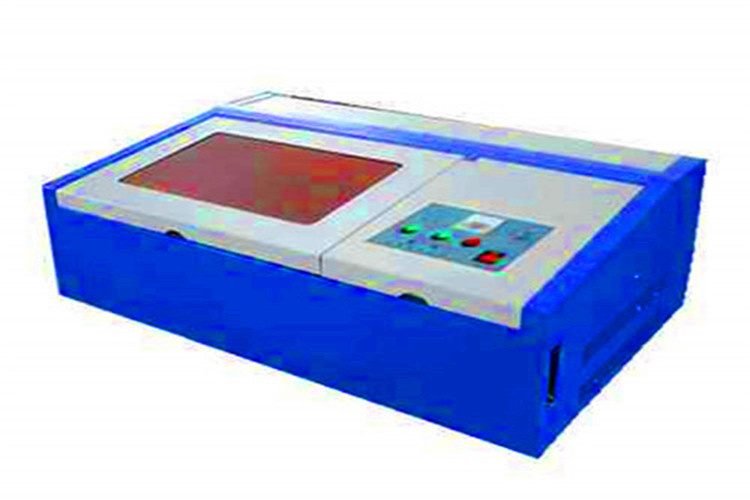

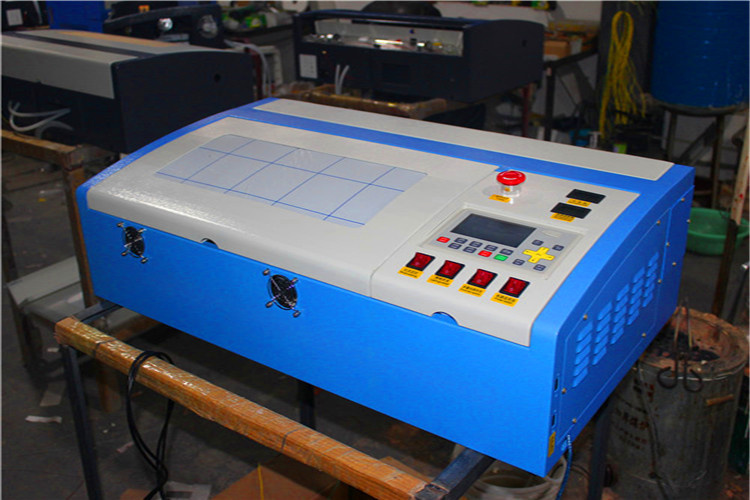

3020 40W CO2 Laser Engraving Machine laser stamp cutter, Mini 40W 3040 CNC laser carving machine
Features
1. 4.3 inch color display screen makes operation easy and f riendly man-machine interface.
2. It support USDB 2.0 interface and U flash memory disk read and write file. It is good for mass engraving or cutting.
3.128M internal memory makes it can separate from PC and independently set parameters. Good optocoupler make it insulate from external electromagnetic interference and let it has stable and reliable engraving.
4. It has stable high speed cutting and soft velocity variations performance which realizes no sawtooth shape during high speed cutting.
5. Network management make it communicate with PC easy, security and relible.
6. It only externally connected with different motor drive to control stepper motor or servo motor.
7. It also has automatic blowing,auto focus,pedal switch and security protection function. Also soft/hard coordinate limit protection is applied.
8. It has outage continued carving, power failure recovery, processing time prediction, intelligent typesetting and cost budget function.
9. It supports two laser control function. Each laser power can be adjusted individually. Also two laser head reciprocal cutting is applied at this machine.
10.Small circle cutting speed can be flexibly set and improve small circle cutting effect.
11.Hierarchy data output function is applied. Output power, output speed,laser mode(engraving,cutting or slope engraving at tach hierarchy and these data can be saved automatically.
12. Real-time status or track of engraving or cutting and lock display function are applied on this machine.
13. Gallery has 2000 documents, laser anti-counterfeit fingerprints and thousands of fronts.
Specification
1.Laser power:40/50W
2.Voltage:110/220V,50/60Hz
3.Laser power supply:MYJG-40/50 CO2 power supply
4.Engraving mainboard: DSP digital control panel. It supports AutoCAD, CoreLDRAM CAD,CAM and other graphics processing software.It supports PLT,AI,BMP,DST,DSB,DXF,etc.
5.Weight: 35Kg
6.Machine size:850x500x250mm
7.Max engraving size:330x20mm
8.Max stamp area:195x75mm
9.Place item area:425x210m
10.Engraving accuracy: 0.8x0.8mm,data,English character
11.Eletric l power consumption:210W
Application materials
Apply on jade,MDF,metal,paper,leather,plastic,rubber,crystal and other non metal material.
