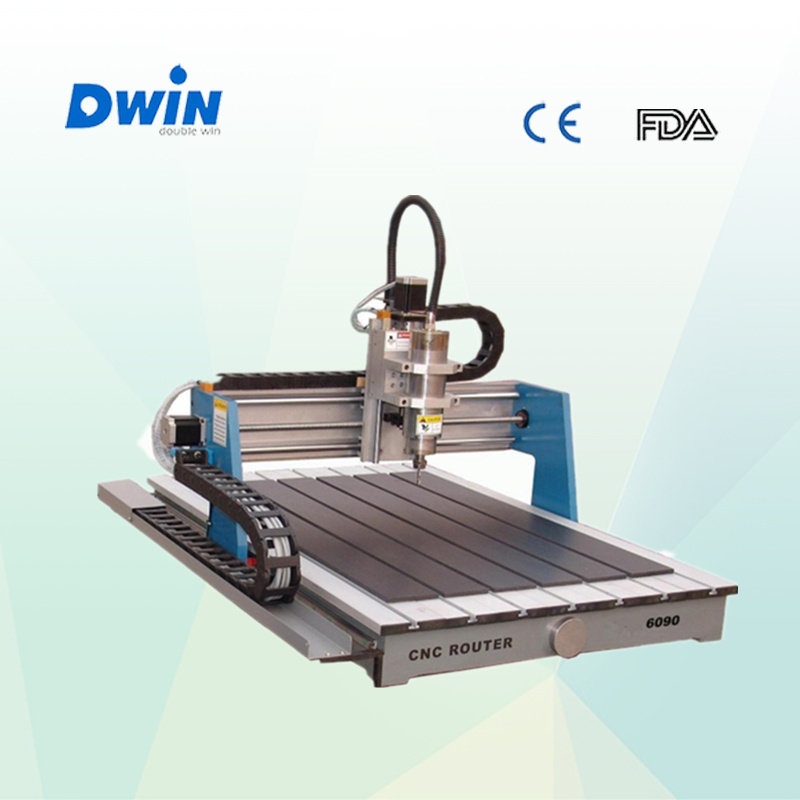

Desktop Router Machine 6090 Small 3D CNC Carving Machine
This machine use dsp control system to drive cnc router, so it is user friendly machine, you can operate it easily, this machine also is most popular 6090 cnc router type, with 1.5kw water cooled chinease cnc spindle, can be used for all kinds of metal and nonmetal presents and sovenirs engraving, cutting or making. And this is machine has potential in making all kinds of small crafts and arts things as you required.
has the following features:
Our such DW6090 adopts the mode of saving the intermittence. Memory to insure the processing point when the blade is broken or postpone situation.
·matching Taiwan producing screw with double nut and imported the Taiwan Hiwin liner Guide Rail.
·Specific saving mode of different points. It is very convenient for various scutcheon processing.
·Gantry mode movement is more durable without distortion by long use and the positioning accuracy is much better.
·The large power cutting spindle does not only increase the fineness of engraving the breast card without screw and the under base is more flat and smooth.
Technical Parameters:
| Model NO. | DW-6090 CNC Router Engraver |
| Table Size | 740mm*1140mm |
| X Y Z Traveling Area | 600mm*900mm*120mm |
| Table Structure | Aluminum T-Slot |
| Spindle Power | 1500W Water Cooling |
| Max. Spindle Speed | 24000 r/min |
| Max. Traveling Speed | 7200mm/min |
| Max. Working Speed | 5000mm/min |
| Processing Accuracy | ±0.025mm |
| Reposition Accuracy | ≤0.025mm |
| Driving System | Stepper Motor |
| Command Language | HPGL, G Code |
| Operation System | NCSTUDIO(Weihong Card) |
| Working Voltage | AC220V, 50Hz |
| Net Weight/Gross Weight | 220 KGS/ 280KGS |
| Package Dimension | 1400mm*1100mm*900 mm |
Application Materials
Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper and so on.
Application Industries
Suitable for Furniture Industry, Mould Industry, Craft Industry, Stone processing factories, Furnace (fireplace) making, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries,etc
Package Details
Wooden Box With Accessories inside
|
1),Electric Box(1pc) or computer control cabinet
|
(1),Tool box(1 set):
|
a, Mach3 Control card(1pc);
b,Data cable(1pc);
c,Disc(1pc);
d,Power cable(1pc);
e, Knife Tool(1set);
f,Upper blade wrench(1 set);
g,T-clip(1 set);
h,Allen wrench(1 set);
I,toolholder;
j,Random Software Data sheet(1pc);
k,Pump(2pcs);
l,packing list(1pc)
|
Qty/Ctn |
1Set/ctn |
Cartoon Size |
Based on the products
|
Why choose us?
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided
5.Meet CE,FDA,ISO9001 standards
