Product Specifications
Prod Model: |
PRM-1200 DosAre |
Markets: |
North America,South America,Eastern Europe,Southeast Asia |
Type: |
Probe |
Usage: |
Gas |
Installation Mode: |
Handheld |
Certification: |
CCC |
Application: |
Industry |
Product Description
Electronic Dosimeter for Personal Radiation Dosage Monitoring
Features
Specifications
Applications
Downloads
Overview

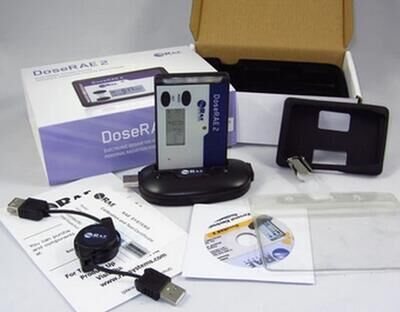

DoseRAE 2 is a compact, direct-reading and alarming electronic personal radiation detector. It uses a diode and a scintillation crystal to detect X- and gamma radiation, and provides real-time monitoring of personal dose and dose rate. The real-time radiation dose rate monitoring allows immediate reaction in case of radiation occurrences and thus reduces the
Radiation exposure. By measuring dose equivalent and dose equivalent rate, this detector provides the functions of a
Dosimeter too. It also measures radiation exposure and exposure rate, which is appropriate for controlling
The exposure of emergency responders to photon radiation. Note: Combined Radiation Dosimeter and Rate Meter Technology
Is produced by RAE Systems, Inc. And protected by U. S. Patent No. 7, 592, 603 B2
Detector Specifications
Gamma Sensors CsI (TI) + photodiode (low environment radiation)
Energy-compensated PIN diode (level of radiation protection)
Dose Rate Range: | 0.01 μ Sv/h to 10 Sv/h (1 μ R/h to 1140 R/h) |
Accuracy of Dose Rate: | ± 20% (from 10 μ Sv/h to 10 Sv/h or from 1.14 mR/h to 1140 R/h)± 30% (from 0.01 μ Sv/h to 10 μ Sv/h or 1 μ R/h to 1.14 mR/h) |
Dose Range : | 0 μ Sv to 10 Sv (0 μ R to 1140 R) |
Dose Accuracy: | ± 15% |
Energy Range: | 20 keV to 6 MeV for X- and gamma radiations |
Size: | 3.3" x 2.2" x 0.4" (85 x 55 x 9.6 mm) without clip |
Weight: | 1.8 oz. (50g) with battery and clip |
Battery LIR2450 Rechargeable batteries
Operating Hours Up to 200 hours after each charge (one week continuous use)
Datalog Size More than 3000 data points
Datalog Interval User programmable, from 30 to 3, 600 seconds
Communication USB interfaces with computer for datalog download
Alarms
Loud audible buzzer (85+dB @ 30 cm/12")
Highly visible LED lights
Built-in vibration alarm
Alarm Settings Dose alarm (adjustable from 1.0 μ Sv to 10 Sv or 114μ R to 1140 R)
Dose rate alarm (adjustable from 1.0 μ Sv/h to 10 Sv/h or 114 μ R/h to 1140 R/h)
Temperature -20 Cto 50C (-4F to 122F)
Humidity 0% to 95% (non-condensing)
IP Rating IP-54
Shock Resistance Passes drop test from 1.5 m (59")
