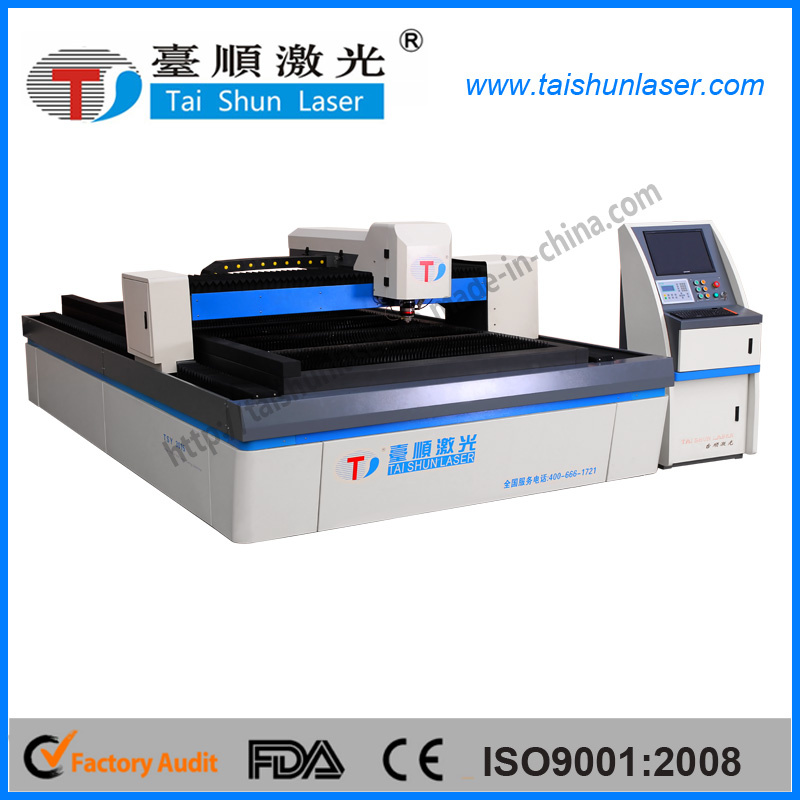

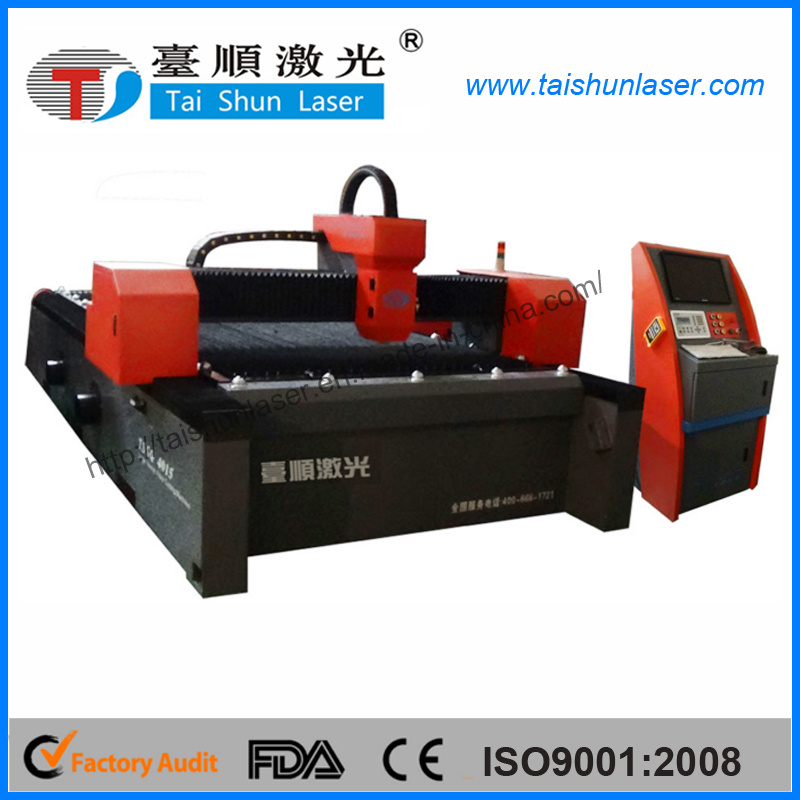

Fiber metal laser cutting machine
>>>Features:
1 Gantry type double driving CNC control system,high temperature quenched welded body with high strength,do deformation during long time working process
2 Wide working format for various metal plates cutting
3 There is no need of auxiliary gas,air is OK,fiber Optical path is easy to operate with low cost,no need to adjust optical path like others
4 The laser beam is fine,thus the cutting edge is delicate without burrs and deformation.Suitable for precise cutting for medical devices,superior quality products
5 With high centerilized laser energy,the output power is low with high conversion from electric to energy of motion.
6 Fast cutting speed 100times of wire cut with high working efficiency
7 High-precision linear guide rail and gear to cut precisely
8 Enable to process complicate cutting like curved surface ,the cost is 40% of a punching machine
9 Imported Germany IPG fiber laser generator, long working life can be 10W hours
10 Standard 500W laser generator, there are 300W-1000W laser generators for choice according to actual demands
>>>Technology parameter:
| Model | TSGX150300 | TSGX150300H |
| Laser Power | 500W | 1000W |
| Laser Source | World Famous USA SPI / USA IPG Fiber laser source |
| Laser Type | Import Fiber Laser | Import Fiber Laser |
| Working Area | 3000mm×1500mm | 3000mm×1500mm |
| X axis Stroke | 3000mm | 3000mm |
| Y axis Stroke | 1500mm | 1500mm |
| Z axis Stroke | 150mm | 150mm |
| Cutting Thickness | 0.2-5 mm | 0.2-12 mm |
| (Carbon Steel) |
| Max. Cutting Speed | 20-30 Meter / Min (Up to materials) |
| Transmission Method | Ball Screw Transmission | Ball Screw Transmission |
| Table-driven system | Japanese Famous Kawasaki | Japanese Famous Kawasaki |
| servo motor & driver | servo motor & driver |
| Focus Method | Auto focusing | Auto focusing |
| Location precision | ≤±0.05mm | ≤±0.05mm |
| Re-location precision | ±0.02mm | ±0.02mm |
| Max. moving speed | 100m/min | 100m/min |
| Supporting Format | PLT, DXF, BMP, AI | PLT, DXF, BMP, AI |
| Power demand | 380V/50Hz | 380V/50Hz |
| Worktable max. load | 750KGS | 800KGS |
| Control Method | Offline Movement Control | Offline Movement Control |
| Control software | Taishun Laser Professional Laser Cutting Software | Taishun Laser Professional Laser Cutting Software |
|
>>>Fiber Cutting advantages:
(1) Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1, 064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.
(2) The efficiency of a fiber laser on a large extent exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal been cut.
(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100, 000 hours of continuous or pulsed operation.
(4) Taishun Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.
>>>After-Sales Service & Warranty
1. One year guarantee period for product quality. (man made damaged is negotiable).
2. Lifelong maintenance and spare parts supply.
3. Free design of fixtures as customers required.
4. Free training for machines installation and operation of the staffs.
5. Free samples marking of customer provided.
Order notice
Please let us know following informations:
1. What materials you want to cut?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials?
4. After cuting, what will be the metal used for?
5. Are you an end user or retailer?
According to your above information, we'll recommend the most suitable machine to you.
Watch more video:
Https: //www. Youtube. Com/watch? V=xs_Im20mv6g carpet cutting
Https: //www. Youtube. Com/watch? V=GbkX77rZW_Q labels engraving
Https: //www. Youtube. Com/watch? V=DOUXxajO3_w insole engraving
Https: //www. Youtube. Com/watch? V=hPIgjdvG_GY fiber cutting metal
Warmly welcome you visit our factory! ! !
Warmly welcome you contact us directly for more information! ! !
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.

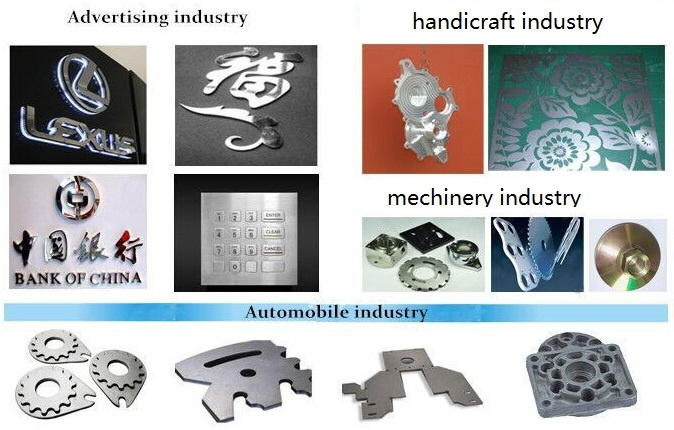

Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
