Double Sided Acrylic Frame Slim LED Light Box for Window Displays
| Price: |
US $ 25-28.6/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
Product Specifications
| Prod Model: |
CDH03 |
| Size: |
A4 Portrait(Customized Sizes Available) |
| Thickness: |
Super Slim, Minimum 6mm |
| Power Supply: |
AC/DC Power Adaptor, Input 110V-240V, Output 12V |
| Light Resource: |
SMD LED Light Strip (SMD3014) |
| Lifespan: |
More Than 50, 000 Hours |
| Type: |
Ultra Slim Light Box |
| Usage: |
Advertising |
| Material: |
Acrylic |
| Shape: |
Rectangle |
| Suitable For: |
Indoor |
| Installation: |
Ceiling Hanging |
| Pringting Carrier: |
Inkjet Film |
| Style: |
Modern |
| Certification: |
UL |
Product Description
Acrylic Frame LED Slim Light Pocket for Retail StoresSlim light box are widely used for advertising exhibition and decoration.Super slim, minimum 6mm only.
Features:
Type: Double side, magnetic open, window display.

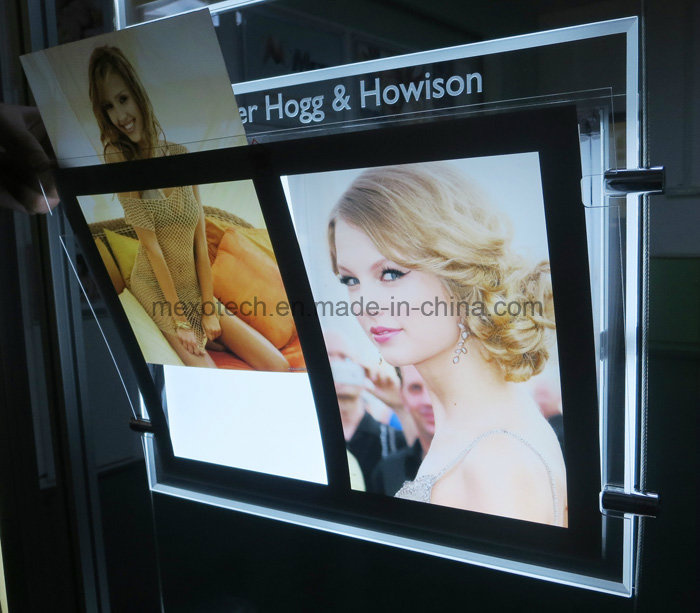

Change picture: Magnetic open, easy for changing Posters/pictures.
LGP: New optic quality acrylic sheet, with latest CNC engraving technology, better than 3D laser engraving.
Face Panel: 1-3mm high quality acrylic sheet.
Thickness: 6mm only.
Size: A4, customized can be available.
Frame color: can be customized
Light source: high brightness SMD LED light Strip bulit-in edge-lit.
Light power: Input: AC110-240V to DC12V adaptor.
Uniformity: edge-lit and LGP, uniform lighting
Environmentally friendly, energy-saving.
Installation: Hanging from the ceiling or against the wall
Applications: Indoor exhibition, advertising or ornament.
Advantage:
Light panel from mexotech adopt newest optic quality acrylic panel, CNC engraving technology(better than 3D laser engraving), which longer life span and distributes lighting evenly. SMD LED light strip edge-lit, high brightness, low power consumption and long lifespan.
Package: protected by air bubble bag inside,paper carton box outside
Certification: CE & RoHS
Application: airport,bus-stop,image sign ,chain store,indoor decoration,shopping mall, supermarket,hotel restaurant, bank exhibition hall, etc| Item No. | Poster Size(mm) | Visual Size(mm) | Frame Size(mm) | Power Watt(w) | Power Voltage(v) | N.W.
(kg) | G. W.(kg) | Package Size(cm) | Unit Price (US$) |
| CDH03-A0 | N/A |
|
|
|
|
|
|
|
|
| CDH03-A1 | 841 x 594 | 831 x 584 | 903x656 | 38.76 | 3.23 | 9.3 | 10.8 | 102 X 78 X 5 | 146 |
| CDH03-A2 | 594 x 420 | 584 x 410 | 650x476 | 22.68 | 1.89 | 5.5 | 6.5 | 75 X 58 X 2 | 72.5 |
| CDH03-A3 | 420 x 297 | 410 x 287 | 476x353 | 11.52 | 0.96 | 2.3 | 2.8 | 58 X 46 X 2 | 45 |
| CDH03-A4 | 297 x 210 | 287 x 200 | 353x266 | 3.84 | 0.32 | 1.5 | 1.8 | 46 X 37 X 2 | 28.6 |
Located in Shenzhen, the window of China, Hawkspace is a manufacturer of LED back-lite application products since 2006, our products are applied with advanced CNC V-cutting engraving acrylic LGP (light guiding plate) and LED edge-lite. LED is ideal for energy saving and acrylic looks crystal, so our products are well met with the trend of lower carbon and fashion life, since 2007 we have exported 500, 000+ sets of LED light panels to Europe, North America, Australia as well as Asia. With solid OEM / ODM capacity and rich experience in foreign trade, Hawkspace can provide high quality product and good services to our valuable customers.
As a professional manufacturer, our young and passionate team is working hard to develop the best LED lighting panels for building an eco-friendly world. With the feature of energy-saving and ultra slim body, Mexo products are very good for and widely used in the fileds of --
1 Super Slim Light Box, for advertising and display;
2 Photo Frame with back light;
3 Ceiling Lamp, for either resident house or office;
4 Light panels for Home Decoration;
5 Crystal Lighting Giftwares...
Welcome to contact us when you need any further information of our products, Hawkspace offers not only high performance-price products, but also prompt and professional service, we are awared that long term business is based on long term loyalty and stable quality.
Welcome to Hawkspace for our Win-Win business!
