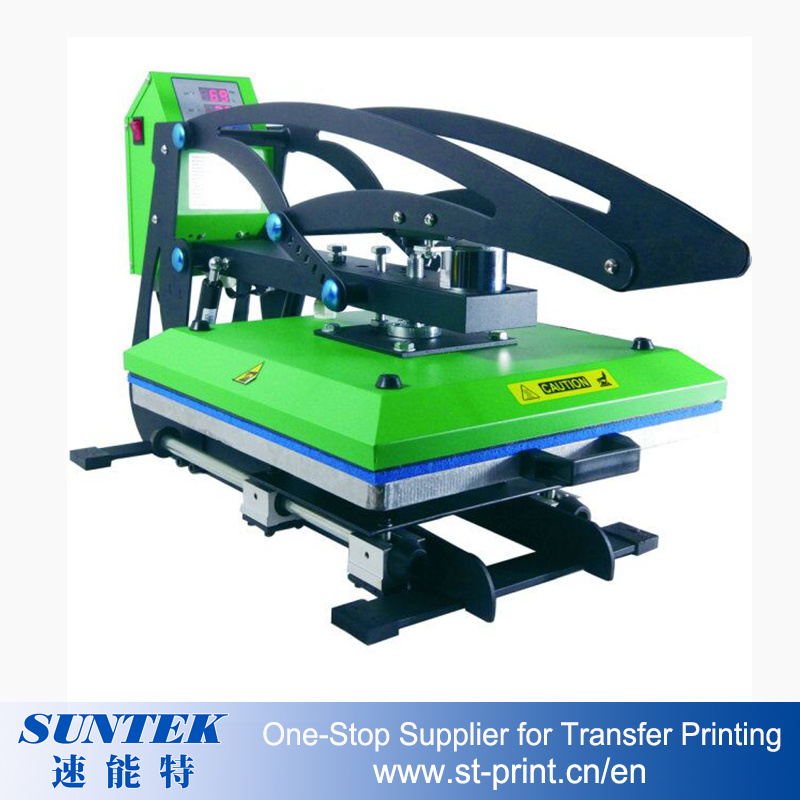

Drawer E-Magnet Auto-Open High Pressure Heat Press Machine
| Price: |
US $ 149-360/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Drawer E-magnet Auto-open High Pressure Heat Press MachineThis heat press enables you to print many flat sublimation blanks, such as t-shirt, mouse pad, metal, 2D mobile phone case, rock slate, slipper, bag, cushion, Glass, Tiles, Crystals heat transfer printing etc. Specification:| Item No. | STM-M10F2 |
| Printing size | 15x15, 38x38, 40x50, 40x60, 50x60, 50x70 and other customized sizes |
| Voltage | 110V / 60Hz, 220V /50Hz |
| Power | 1500, 2200, 2350, 2600, 3000, 3500 w |
| Temperature range | 0-399 ºC |
| Time range | 0-999 s |
| G. W. | 33, 39, 41, 54, 60 kg |
| Packing dimension | 52x30x36, 72x44x39, 78x68x46, 84x80x66, 90x105x75, 105x120x80cm |
| Packing | Strong carton box with foam inside |
| Includes | 1 sheet silicone pad, 1 sheet teflon sheets(Accept Teflon Coated requirement) |
Product display:

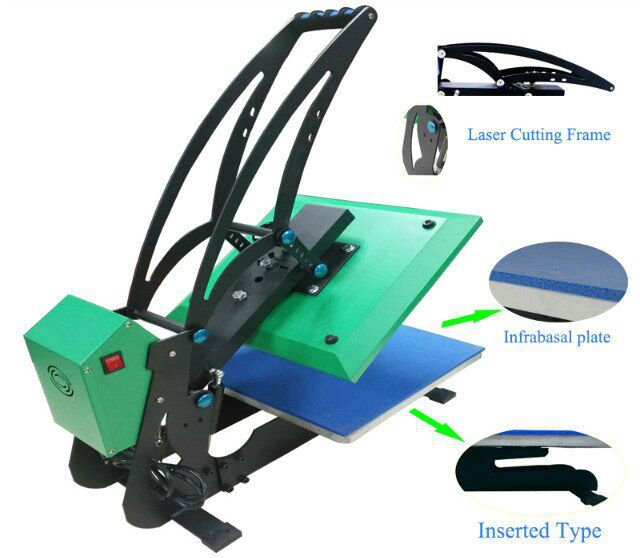

Feature:1.Laser cutting frame with accurate holes and fewer joints to make sure the machine operating more stable and durable.
2.Drawer type aluminum base plate, use slide bush linear guide, slide more smooth, more align and can load materials up to 80kg.
3.Drawer with U-design, T-shirt can be set into the base plate easily, make transfer process faster and more convenience.

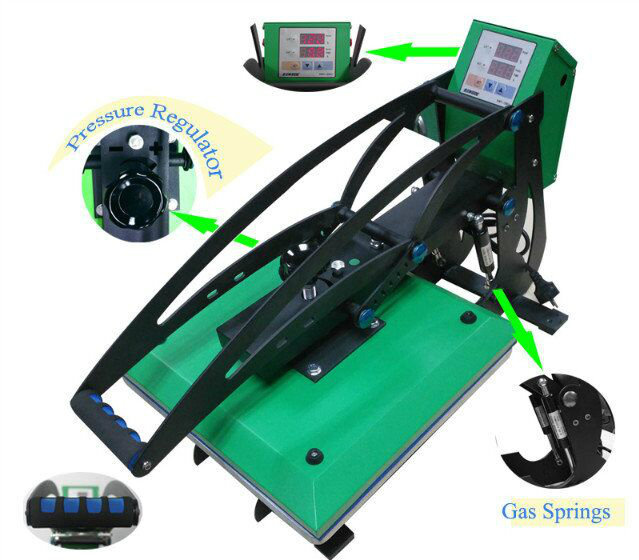

4.High precision and low failure rate double gas spring, there is better damping compare to normal spring, it can make heating pad rising smoothly to keep safe during operation process.
5.Emergency stop button design ensures convenient and safe operation.

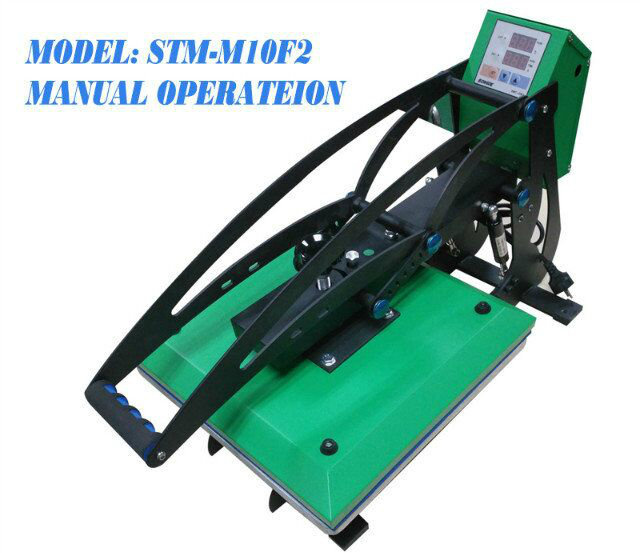

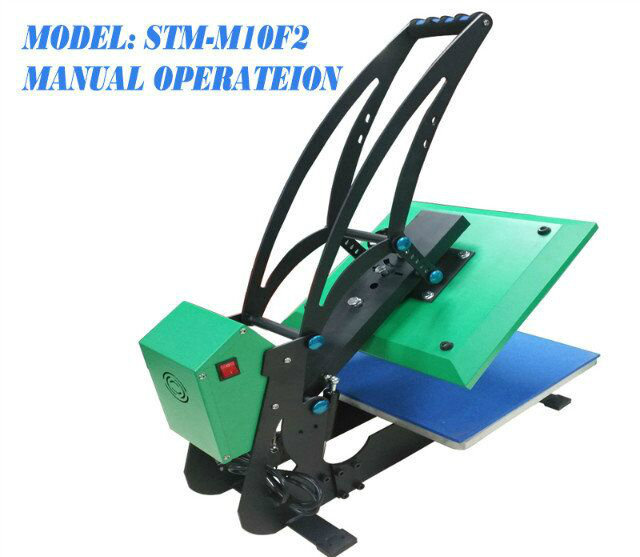

6.It can be converted to manual mode if there are magnetic malfunctions. Make sure you can use the machine even the magnetic is not function. We ensure you: 1. After service and fast delivery
2. One year warranty
3. OEM offered and CE approval
4. Competitive price and good quality
5. Easy to operate
6. Lead time: 3-5 working dayPlease note:
1. You should switch off the power when you don't use it. Don't heat nothing for a long time.
2. Avoid touching the heat press plate when you operating in case be injured.
3. If you feel the pressure is too much and it is hard to be pressed, or the pressure is not enough and it is too easy to be pressed, please adjust the pressure adjusting knob, decrease / increase the shrink of the spring. The intensity of the machine will be injured if the pressure is too much.
4. A successful print requires right time, temperature and pressure, the thickness of the fabric, even the type of printing paper, all will affect the performance of printing. Any kind of sublimation paper need be tested before mass production.
5. Keep children away from the machine even when the machine is left unused. Operation Procedure:
1.Temperature setting: press button SET, then temperature indicator starts to flash. Press UP button to increase temperature. Press DOWN button to reduce temperature.
2.Time setting: press button SET again, and time indicator starts to flash. Press UP button to increase time, and DOWN button to reduce time.
3.When temperature and time are confirmed, press SET to back to the main interface.
Reference parameter for some product sublimation:- Polyester T-shirts: 220ºC-25S-High pressure
- Aluminum Sheets: 200ºC-25S-Midium pressure
- Tiles/Slates/Glass : 180ºC-360S-Midium pressure
About us: Established in 2009, Suntek Print Co., Ltd. is a high-tech enterprise integrated in R&D, manufacture and trade on various transfer printing machines & consumables.
Our products are mainly as follows:
1. Heat press machines
3D sublimation vacuum machine, roller sublimation machines, heat press for t-shirt, mug, plate, cap etc.
2. Transfer consumables
sublimation paper, heat transfer paper, water decal paper, sublimation ink, sublimation blanks etc.
3. Sublimation blanks
such as mugs, mobile phone cases, plates, sublimation stone, and sublimation crystals and so on.
Contact us:Suntek Print Company Limited
Ms.Candy Ye
Mobile:+86-17788774694
Website: www.st-print.cn/en
| Prod Model: |
STM-M10F |
| Item No.: |
Stm-M10f |
| Printing Size: |
38*38, 40*50, 40*60, 50*60, 50*70cm |
| Operating Method: |
Drawer E-Magnet Auto-Open |
| Time Range: |
0-999s |
| Type: |
Pin-on |
| Plate: |
Lithography Printing |
| Structure: |
Platen Press |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Speed: |
7.5CPI |
