Product Specifications
Prod Model: |
DW9015 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Table: |
T-Slot Use Material Hold to Fix Raw Material |
Spindle Power: |
5.5kw |
OEM: |
Accepted |
Customization: |
Accepted |
Machine Structure: |
Aluminium Alloy and Cast Steel |
Spindle Layout: |
Vertical |
Spindle Number: |
Single-Spindle |
Feed Mode: |
Manual |
Controlling Mode: |
CNC |
Certification: |
CE |
Product Description

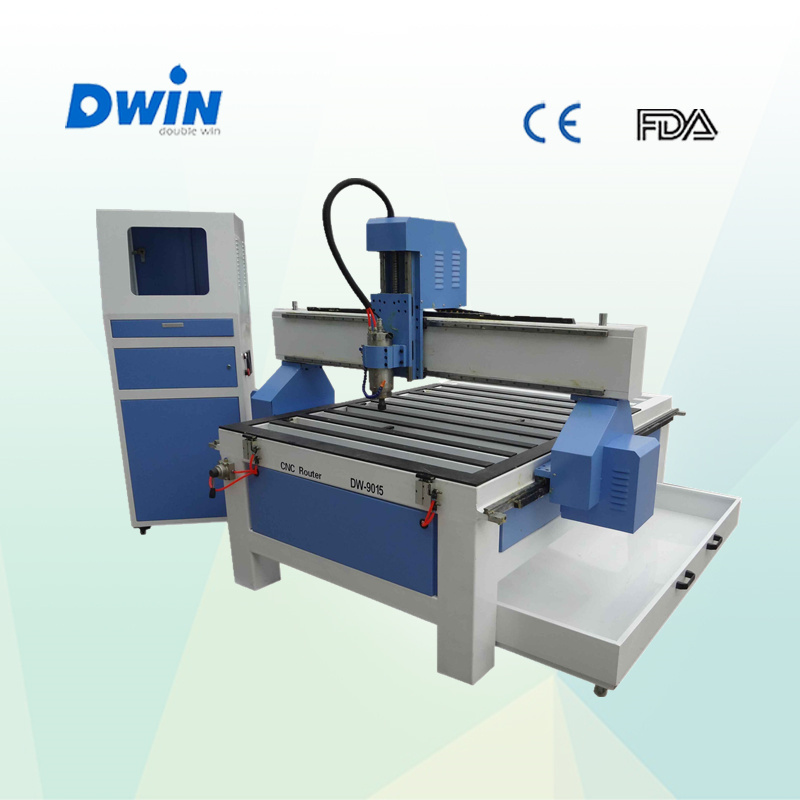

This is the cnc router alumimum cutting machine of our company, this machine with water tank equipped, can be used for cutting aluminum or other metal, and also acrylic wood, etc, This cnc router aluminium cutting machine use high power water cooling spindle, can also be used for engraving flat stone, with good design and good qulaity machine, it can help you do a lot of work.
DSP System CNC Router Aluminium Cutting MachineSpecifications of cnc router aluminum cutting machine: Number | Description | Parameter |
1 | X,Y,Z Working Area | 900x1500x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum&T-slot Table |
6 | Frame | Welded Structure,heavy duty T-structure |
7 | X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
8 | Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
9 | Max. Power Consumption | 2.0KW |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 3KW HSD air cooling spindle(optional) |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Delta servo motor (optional) |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
16 | Command Language | G Code |
17 | Operating System | DSP (Options: Ncstudio /Mach3 Software) |
18 | Computer Interface | USB |
19 | Flash Memory | 128M(U Disk) |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
Features of metal cnc router:1. DW-9015 is an economic processing center, with a row of knife. It is equipped with leading
international components.
2. The work table is international leading vacuum adsorption. It is made from bakelite with
high-strength, vacuum adsorption. It can adsorb different size materials.
3. Optional wheels help move the machine,more convenient. Optional air gun help clean the
worktable.
4. With DSP control system, It can support offline operation.
5. HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetime
is 10 times longer than common rail way.
6.Standard configured with Italy HSD air cooling spindle, high power and efficient. Very famous brand,
has after-sale service all over the world. Matched with Taiwan DELTA inverter.
7.Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer
lifetime,and it makes the machine more stable.
8.Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful. For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.
Applications of metal cnc router:1) Metal processing industry: Stainless steel, aluminum, carbon steel, iron, titanium, etc, all this materials engraving, thin material cutting, debossing, etc.
2)WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
3)Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
4) Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
5) Relief Sculpture and 3D Engraving
6) Cylindrical object

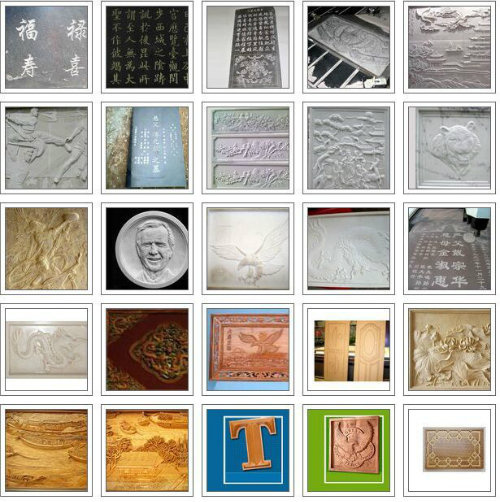

Samples

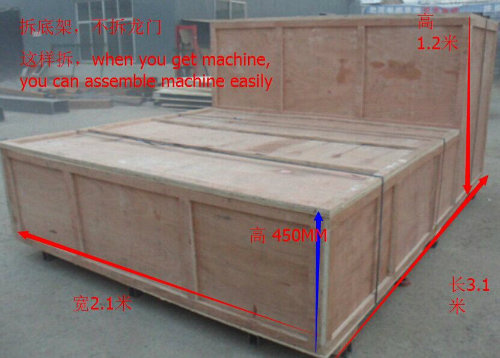

Packing:
This packing is for 1325 machine;
Our service:1. Professional English speaking engineers are online ready for your troubleshooting service. It is reachable in an easy way.
2. We guarantee prompt warranty service for main parts repairmen and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests and offer 7 days' free training and installation service when customer bear the traveling expense including visa, round trip tickets, boarding and lodging at service place.
Customers
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine, CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
