| Price: | US $ 3459-3659/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | Rainbow Jet Pro |
|---|---|
| Product Name: | DTG LED Screen Printer for 3D Design Printing |
| Model: | Rainbow Jet Focus T-Shirt Printer |
| Print Head: | Epson L1390/1440 Industrial Print Head |
| Ink Type: | Pigment Ink/ Eco Solvent Ink /Edible Ink Printer |
| Color Model: | Cmyk+LC+Lm/Cmyk Orange Red Glo/Cmyk+Ww |
| Rip Software: | Focus Rip 8.2.6 |
| Printing Platform: | 33*50cm |
| Control Method: | PLC Controller DTG Printer |
| Max. Printing Resolution: | 3600dpi Industrial Printer |
| Max. Printing Height: | 12cm |
| Structure: | Two-revolution Printing Press |
| Color & Page: | Multi-Colour Printing Press |
| Print Interface: | USB2.0 |
| Style: | Digital Printing |
| Usage: | Fabric Printing |
| System Supported: | Windows XP/2000/2007/2008/2010 |
Specification
| DTG LED Screen Printer for 3D Design Printing Model | |
| Printing size | 330mm*500mm |
| Printhead | Piezo Inkjet 1440 Nozzles technology |
| Print Color | 6 Color: C,M,Y.K.Orange.Red.Gloss.Matte Black. |
| /White ink model: C,M,Y,K+W,W | |
| Printing Direction | Bi-Direction / Unidirection |
| Printing Speed | 1440DPI model: A4 size/64s |
| Control pannel | Touch pannel / LCD |
| Max. height of object | 12CM |
| Max. Printing resolution | 2880DPI*1440DPI |
| Ink Tank Volume | 150ML |
| Ink | Eco solvent ink / Textile ink / CTS ink / Edible ink / Discharge ink |
| Height Adjust | Automatic/Manual Adjust |
| Printing Object Height Examine | Automatic Detecting |
| Printhead Protection | Intelligent Self Protect System |
| Power | 110-220V 50-60HZ 75W |
| Printing Interface | USB2.0/LTP |
| Operation System | Windows95,98,NT,2000,XP,MAC |
| Working Environment | 10-35 C,20-80 RH |
| Max.printing weight | 50KG |
| Printer Size | 75*60*50cm |
| Shipping Size | 90*75*63cm |
| Printer N.Weight/G.Weight | 98KG/110KG |
Technical Feathers
1. Newest fantastic ergonomic design with streamlining style.
2. Unique Clamshell design for the top cover to make the printing and maintain job more convinence and effective.

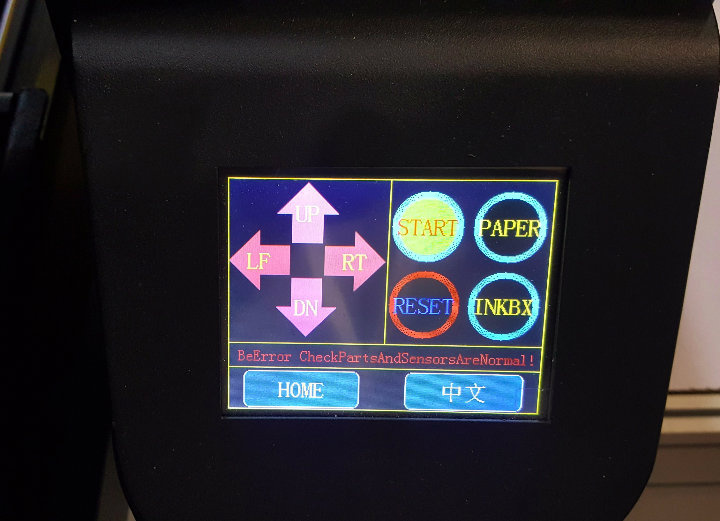

3. High density touch screen pannel can control the flatbed X, Y ,Z axis motion, online/offline easier.
4.Dual ball rail drive the flatbed motion with high precision of DTG LED Screen Printer for 3D Design Printing Model.

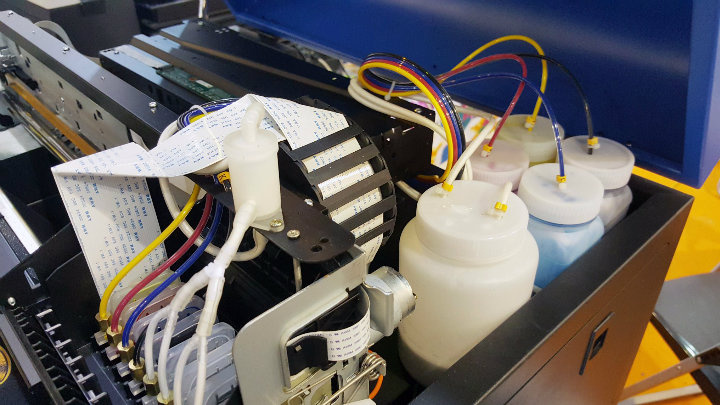

5. Added white ink circulation system to avoid white ink settling by the high quality Peristaltic pump design.
6. The high quality degassing valve added ahead the ink damper can remove the air bubbles from the ink to avoid printing lack of ink and pass line, White ink circulation directly outlet to the sub ink tank and ink damper can reduce white ink settling during ink damper and ink tube also, it can prevent printing ink clog and lack ink printing to improve the printing quality and save lots of ink for head cleaning.
7. Support lots kind of printing method as one pass printing, halftone printing, white ink printing first...
8.Powerful Focus RIP 8.7.0 is the artist for raster process the image before printing, it can support variable data printing, high quality victor processing, custom setting ink channel, 1bit/2bit/3bit/ 1.5-15PL ink dot control printing to get a good white ink density and vivid color result.
Application field:
<1>. Sign making shop
<2>. Photo studio or film development shop
<3>. Screen printing.
<4>. Garment, Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
<5>. Leather, shoes, clothes, crystal and other crafts & gifts industries
<6>. All kind of factories of art items with image.
DTG LED Screen Printer for 3D Design Printing Model is compliment to screen printing production and heat-transfer industries as it can do some jobs which are very expensive or not possible with the traditional printing.
Warranty
1. We provide 13month guarantee since the shipping date.
2. We provide professional user manual, installation video to guide you the installation and daily maintenance.
3. We provide 2 days free online training.
4. Engineer fly to your site for final repair if needed.
Printing Sample
Company Information
Who are we?
All the merchants may face these problems: Good quality but high price , Reasonable price but bad service, Good support but bad quality, inconsequential charge , cannot got the fully training, cannot got the real-time support, Response be delayed as the complex examination and application. Focus digital is a company to solve out this kind of problem for you maximal.
Contact us
Miss. Sophia Guo
Mobile: 0086 177 4081 5203
Please visit www.focusdgt.com / www.focus-printer.com for more information of DTG LED Screen Printer for 3D Design Printing Model.
The first 10 inquiry customer each day ahead Beijing time 12AM will get the fullly pdf tips file for free!
Want to get more buying experience and tips from other buyers that who bought this printer from China? Please send inquire to us as below!
