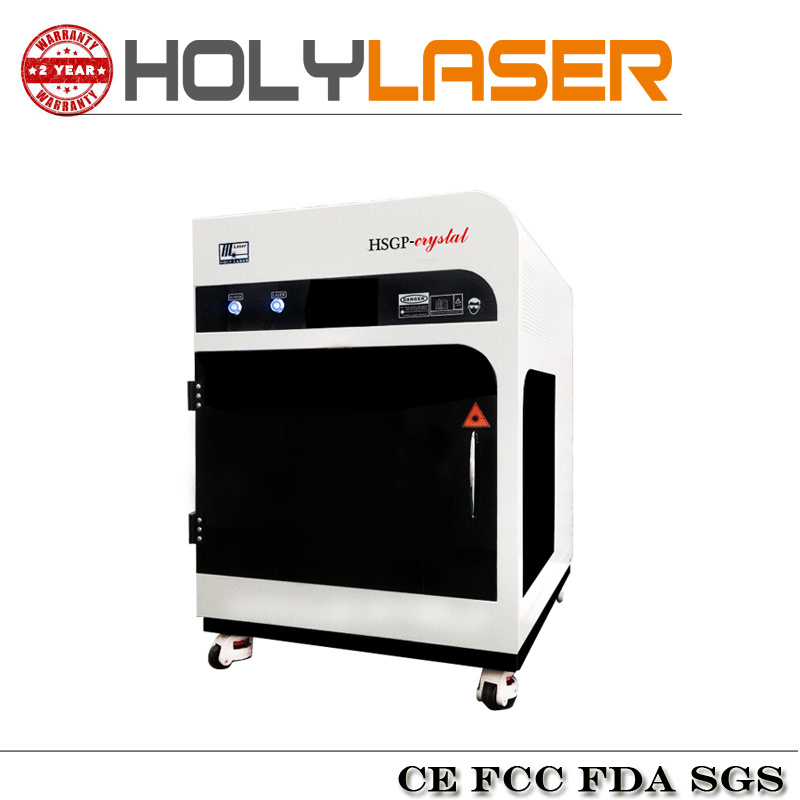

Machine HSGP-KB high-speed 2D/3D Crystal laser engraving machine:
CE/FCC authenticate
High efficiency, resolution, stability
Introduction for HSGP-4KB
HSGP-4KB high frequency laser engraving machine is noted in the film that is carved portrait engraving requirements developed by the semiconductor diode laser, the stability of a strong, , no maintenance, traditional engraving machine speed is 20 to 30 times and more elaborate carving point.
Features for HSGP-4KB 3D laser crystal engraving machine:
Compact and Portable:All-In-One design, compact size, light in weight, easy to move.
User Friendly and Easy to Operate:With touch screen for computer operation and automatic center-positioning clamping device
Shock-Protection Design:The kernel components are protected with shockproof design to prevent any unexpected damage during the moves or working time
Steady Performance and Fine Imaging:DPSS air-cooling laser system is featured in supreme, steady beam for extra fine images
Extra Large Image Processing:A special algorithm is developed for images sizing out of the rated scan zone, which can divide and optimize the data of the sections for the final integration of Max.Engraving area up to 300mm*400mm.
The system is also equipped with a unique Image Cohering Calibration to adjust the variance both optical and mechanical, cumulated from the long-time operation.
Multi File Formats Support:The MeeLaser software could support dxf, CAD and eng etc.
Clean & Quiet Operation:No air compressor, water pump and high power fan, no pollution.
1, worktable and galvanometer integration technology greatly improved the efficiency of laser processing, make max.Marking scope as 300x400x150mm.
2, High-Frequency laser and galvanometer motion system guarantee high -speed laser engraving.Mosaic engraving technology greatly expands the range of engraving.Which will meet customers' requirement of large format engraving, high-speed, and personalized production.
3, Laser lifetime guarantee to more than 20000hours.Easy to maintain.
4, without consumables.Don't have spare parts and don't need to replace the Xe Lamp frequently such as the lamp pumped laser device and adjusting the optical path.
5, Automatic positioning technology improves the precision of positioning the crystal in the table, reducing the time of the crystal orientation.
6, The unique frequency selection technology ensure the output rate of the unique point laser reach to 100%, no running point and the leakage phenomenon;
The application of the conversion mode of the four types of point cloud software make the engraving effect showing in various form.
High-precision screw improve the system's positioning accuracy and stability;
Automatic monitoring system of the temperature ensure the normal operation of the equipment;
The chain device at the door guarantees the safety of the operator.
After sale service:
1.One year warranty period, man made damage is negotiable.
2.Life long maintenance.
24 hours technical support by line or by phone.
3.Free training fro customer
4.Free learning material, like file and videos supplied.
Payment term:
1.Payment by T/T or Western Union
100 T/T in advance, when the total amount less than 10000USD.
30% T/T in advance, 70% balance before shipment when the total amount more than 10000USD.
2.Delievery ways:
By DHL.TNT, FedEx door to door.
By SAE, by air
3.Lead time:
7 to 10 working days
4.MOQ:1 SET
| Technical index: |
| Style: HSGP-4KB |
| Laser pumping: semiconductor diode |
| Laser wavelength: 532nm |
| Laser frequency: 4000Hz |
| Maximum pulse energy: 1.2mj |
| Laser power: 4w |
| Q-mode: Acousto - optic Q- |
| Pulse width: 7ns |
| Beam quality: m2 less than 1.5 |
| Maximum engrave speed points: 180000points /minutes |
| Maximum marking scope : (300mm*400mm)*150mm |
| Laser head: one |
| Resolution: 8500DPI |
| Focal length: 150mm |
| Focus diameter: 0.02mm |
| Cooling : air cooling |
| Application materials : crystal . glass etc |
| Machine weight: 200kg |
| Device input power : AC220V± 10% 50-60Hz |
