| Price: | US $ 6299-19999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

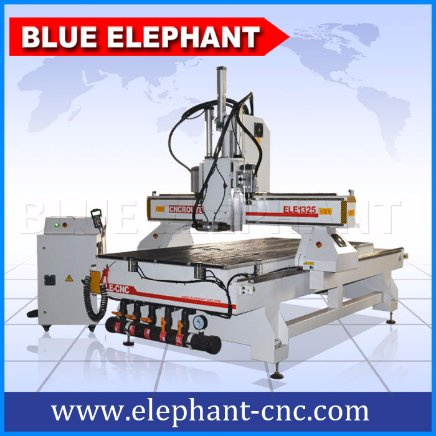

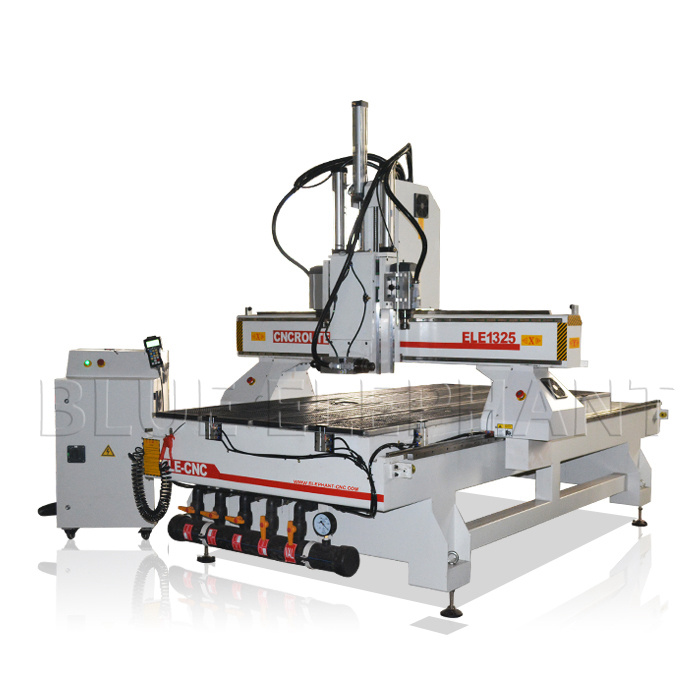

ELE 1325 auto tool changer cnc router , wood furniture engraving cnc router for wooden panel ,desk
(more sizes for choice:1500*3000mm, 1800*3600mm, 2000*3000mm, 2000*4000mm. We also have ATC, multi-heads, 4 axis, 5 axis and mini desktop type.
Brief Introduction
The cnc router machine is specially designed for woodworking industrial, with multiple spindles auto-changing.
Can be choosen a spindle rotated 90 degree for lock slot . All components used are top quality in the world.
3kw HSD and 4.5kw HSD spindles can be changed automatically with the commands from control system.
Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x2000mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | T-slot and vacumm working Table |
5 | Frame | Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 2. kw~2.2Kw |
9 | Max. Rapid Travel Rate | 33000mm/min |
10 | Max. Working Speed | 25000mm/min |
11 | Spindle Power | 4.5 KW HSD air cooling spindle for both heads |
12 | Spindle Speed | 0-18000RPM |
13 | Drive Motors | Japan YASKAWA servo motor and driver |
14 | Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) |
15 | Command Language | G Code |
16 | Operating System | NCstudio NK105 handle control system |
17 | Collet | ER20 |
18 | X,Y Resolution | <0.01mm |
19 | Software Compatibility | Type3/UcancameV9 Software |
20 | Running Environment Temperature | 0 - 45 Centigrade |
Application
Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch
process any wooden products, antique furniture, crafts gifts, relief processing.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.The machine is specially designed for woodworking industrial, with multiple spindles auto-changing.
Samples show:
Safety Level :
1, Soft limit switch (Shock absorption pad)
2, Japanese Omron limit switch
3, French Schneider electronics
4, French Schneider rotary safety switch on the control box
5, Wires, high soft shielding twisted-pair cable, fire-resistant and with low failure rate,
could be bent min 30,000,000 times
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
| Prod Model: | ELE1325 |
|---|---|
| Voltage: | AC380V/50/60Hz, 3pH (Option: 220V) |
| Dimension(L*W*H): | 3700*2140*1850mm |
| Spindle Power: | Italy 4.5kw Air Cooling Spindle |
| Spindle Rotation Speed: | 0-18000rpm |
| Table Surface: | Vacuum and T-Slot Combined |
| Tool Change Type: | Carousel Auto Tool Change System |
| X,Y,Z Traveling Positioning Accuracy: | ±0.03/300mm |
| Drive Motors: | Japan Yaskawa Servo |
| Tool Collet: | ISO30 |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Double-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
