Ele 1325 Carving Machine 3D CNC Router for Sign Making with Woodworking CNC Router From China

Name: Ele 1325 Carving Machine 3D CNC Router for Sign Making with Woodworking CNC Router From China
Brand: china-crystals.com
SKU: 829668535
Availability: InStock
Rating: 4.3 (138 reviews)

Price:	US $ 4000-8000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

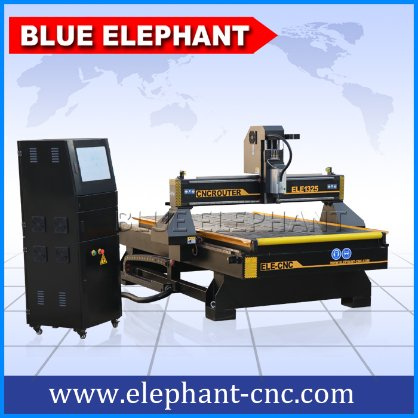

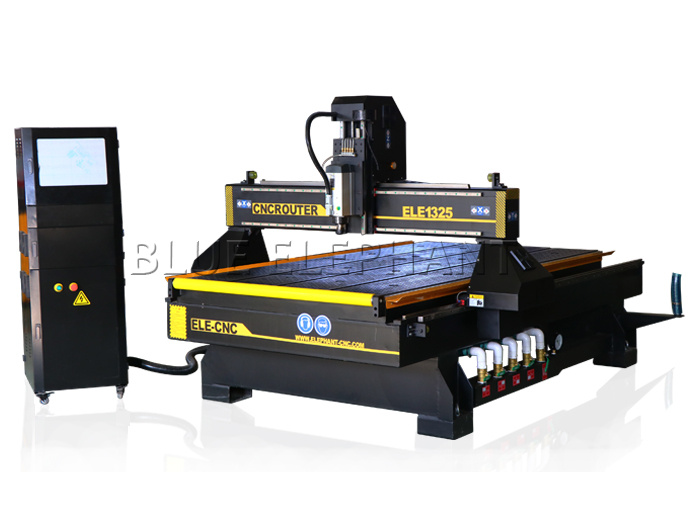

ELE 1325 Carving Machine 3d Cnc Router For Sign Making With Woodworking Cnc Router From China Jinan

Advantages of carving machine 3d:

Heavy duty structure.
Original 6kw Italy HSD air cooling spindle.
Original Ncstudio PM53C control system with computer control box .
The fixed roller is more convenient to load the panel.

YouTube:https://www.youtube.com/watch?v=uT68yHWmOUE

Technical Parameters of carving machine 3d:

Description	Parameter
X,Y,Z Working Area	1300x2500x200mm
Table Surface	T-slot & vacuum working table
Spindle	6kw HSD air cooling spindle
X, Y Structure	20#Taiwan HIWIN Linear guide and helical rack
Z Structure	Ball screw and#20 Taiwan HIWIN Linear guide
Motor and driver	750w YASKAWA servo system
Spindle Speed	0-18000RPM
Inverter	7.5kw Taiwan Delta Inverter
Command Language	G Code
Control System	NCStudio 53C control system
Computer Interface	USB
Collet	ER32
X,Y Resolution	<0.01mm
Software Compatibility	Type3 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Optional	5.5kw water cycle vacuum pump 1.5kw New type dust collector

PS:All the working area and specifications can be customized according to your requests.

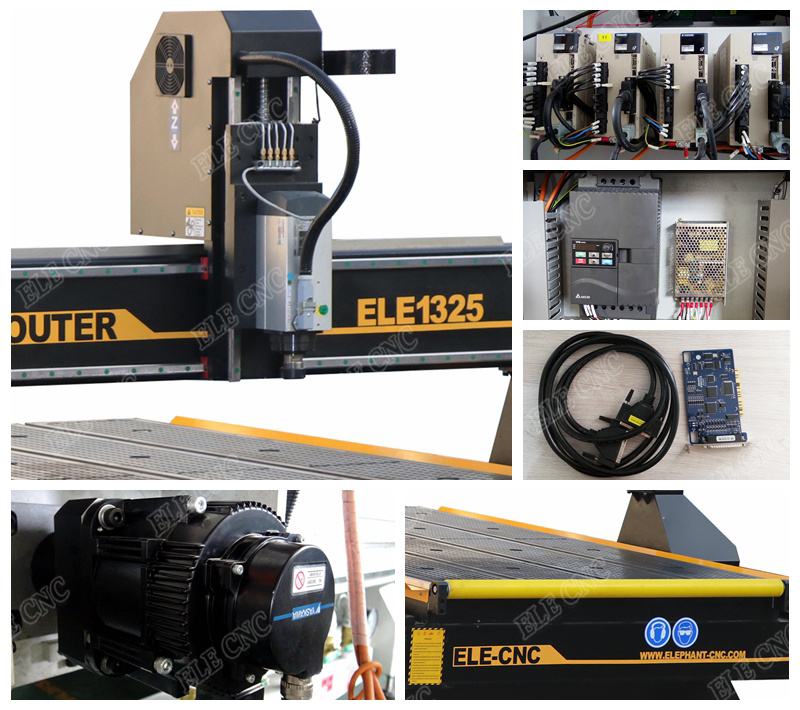

Product Details of carving machine 3d:

Features of carving machine 3d:

1300x2500x200 working area
6kw Italy HSD air cooling spindle,18000rpm
7.5 kw Taiwan Delta inverter
NCStudio 53C control system
750w YASKAWA servo system
Imported Taiwan HIWIN 20# Square Linear Guide
Z axis Original Taiwan TBI ball screw Transmission
T-slot and vacuum working table
Japan Ormon Limit Switch
France Schneider safety switch
Seperated control box
1.5kw water cycle vacuum pump
1.5kw New type dust colleator
Voltage 380V 3phase 60HZ/50HZ (option:220v)
Plywood case Package
Type3/Artcam software

Applications:

1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

Samples:

Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

Guarantee and After-sale service:

12 months for the whole machine .

1, Technical support by phone , email or MSN/Skype around the clock

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery overseas

Welcome to our factory:

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department, Quality control department, and after sale & service department.
Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
We had got CE and ISO9001 certification always offer best quality machine.
Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
Just looking forward to service every customer, like you.

Contact us:

Mobile: 0086-15064026772
Web: www.elephant-cnc.com

Prod Model:	ELE1325
Power(W):	9kw
Working Area:	13002500200mm
Control System:	Ncstudio Pm53c Controller
Spindle:	Italy Hsd Air Cooling Spindle
Spindle Power:	6kw
Spindle Speed:	0-18000rpm
Motor:	750W Japan Yaskawa Servo Motor
Driver:	Japan Yakaswa Servo Driver
Inverter:	7.5kw Taiwan Delta Inverter
Table Surface:	T-Slot and Vacuum Working Table
Spindle Layout:	Spindle Over
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	SGS BV TUV
