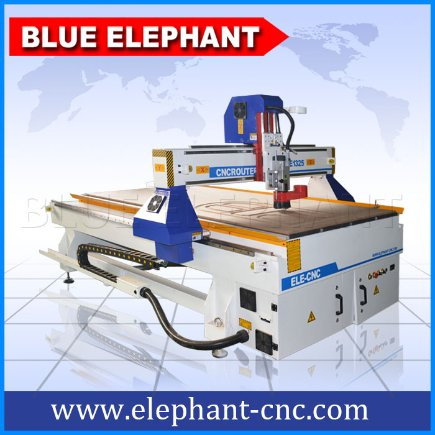

Ele 1325 CNC Wood Carving Machine / CNC Engraving Router Machine
| Price: |
US $ 3600-9600set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
ELE 1325 CNC Wood Carving Machine / CNC Engraving Router Machine
Introduction of 3d cnc router:
- The Woodworking CNC Machine is suitble for wooden Industry, furniture industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
- The cnc router machine is designed for large area engraving work such as wooden Industrial, mdf industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
- In addition, it can be upgraded to be installed a rotational axis.
Parameters of 3d cnc router:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
Table Surface | Vacuum & T-slot Table |
Frame | Welded Structure,heavy duty T-structure |
X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
Max. Power Consumption | 2.0KW |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 3KW HSD air cooling spindle(optional) |
Spindle Speed | 0-24000RPM |
Drive Motors | FL118 stepper motor & Leadshine 860H driver |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Operating System | DSP (Options: Ncstudio /Mach3 Software) |
PS:All the working area and specifications can be customized according to your requests.

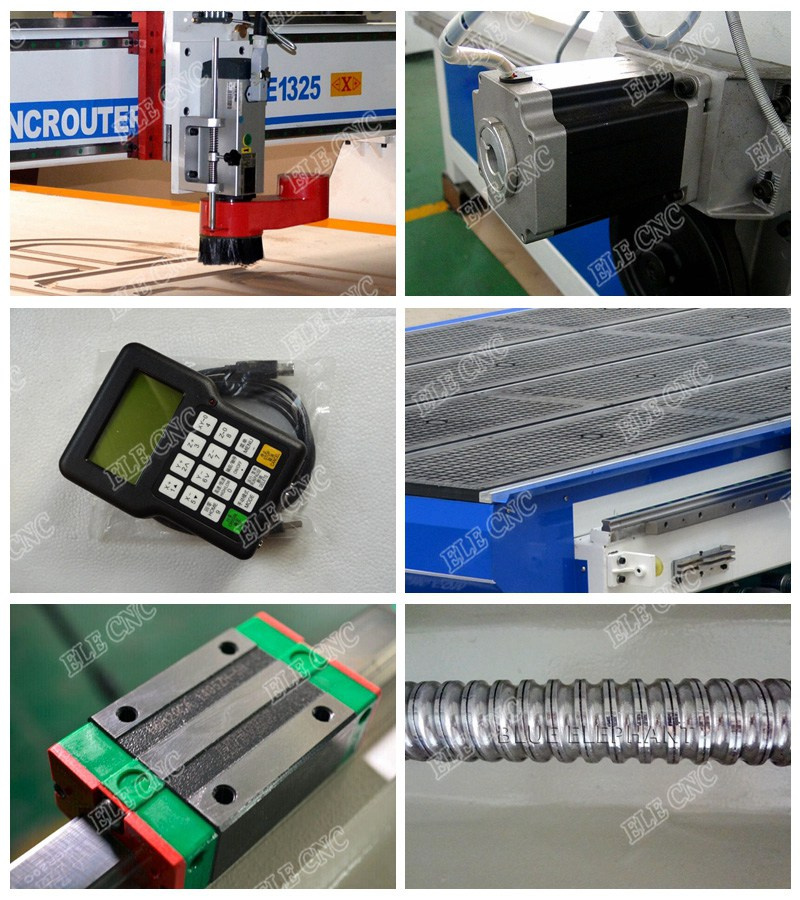

Product details of 3d cnc router:
Features:
- T-slot working table. Mechanical fixing small processing materials
- 3kw air cooling spindle(top brand in China), It's big strength and higher efficiency,
- Dust collection system, it can keep a clean, less-dust working surrounding which is helpful to your healthy; also, it can reduce the surface dust of linear guide, ball screw and gear transmission, reducing the maintaining cost.
Application:
- WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
- Relief Sculpture and 3D Engraving & Cylindrical object
Samples:
Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com

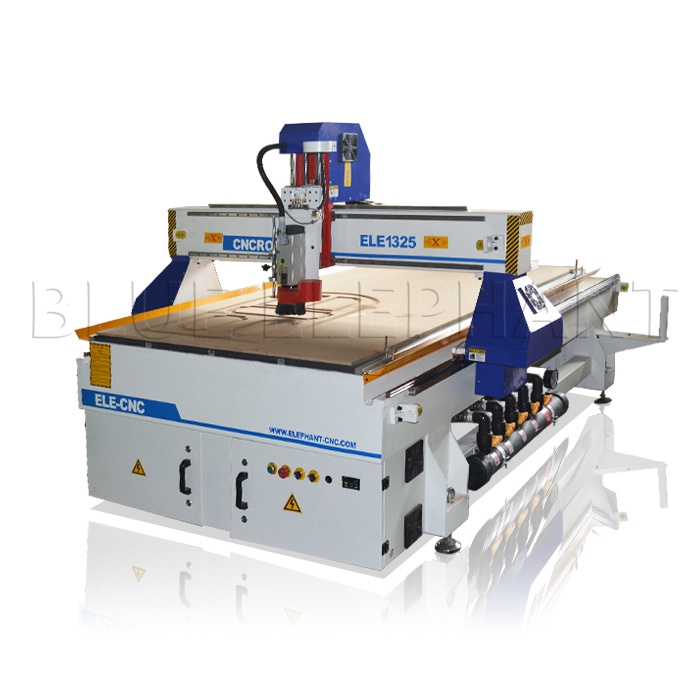

| Prod Model: |
ELE 1325 |
| Dimension(L*W*H): |
3200*2140*1850mm |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Applicaion: |
3D CNC Wood Carving Machine |
| Spindle Power: |
3kw Air Cooling |
| Table Surface: |
T-Slot and Vacuum Working Table |
| Power(W): |
4kw |
| Weight: |
1300kg |
| Working Area: |
1300*2500*200mm |
| Spindle Speed: |
0-18000rpm |
| Motor: |
FL118 Stepper Motor |
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.
We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
Business Type: Manufacturer, OEM, ODM
Main Products: Wood CNC router machine, laser engraving and cutting machine, stone CNC router, plasma cutting machine, laser machine
Location: Shandong, China (Mainland)
Year Established: 2013
Number of Employees: 11 - 50 People
Total Revenue: US$10 Million - US$50Million
Main Markets: Oceania, Western Europe, North America, Africa, Southeast Asia
