| Price: | US $ 3999-6999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

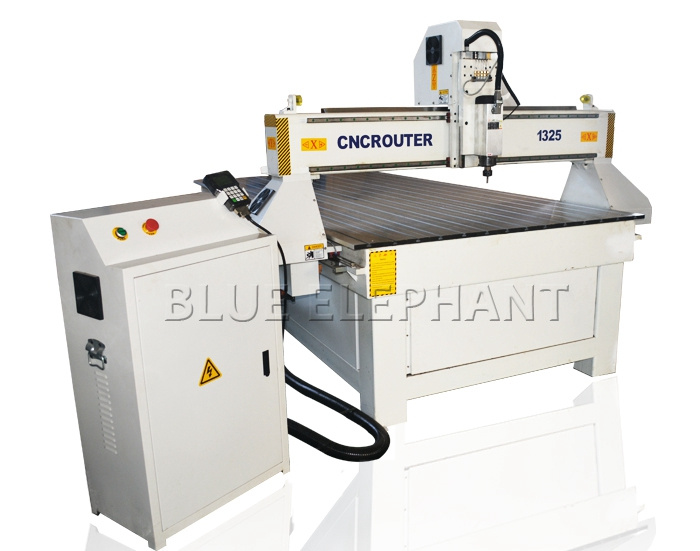

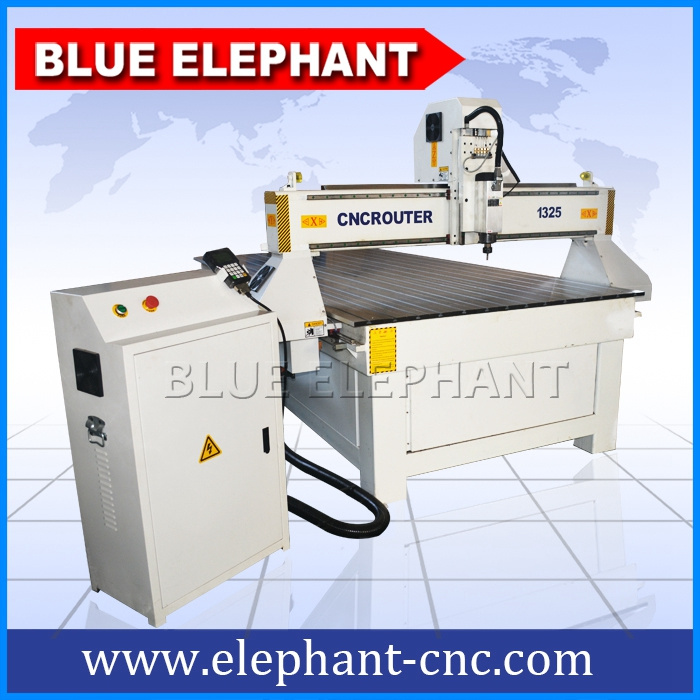

ELE 1325 woodworking cnc machines , wood cnc machine for homemade
Features:
Technical Parameters:
| X,Y,Z Working Area | 1300x2500x200mm |
| Table Surface | T-slot Table |
| Spindle | 3.5kw Changsheng air cooling spindle |
| X, Y Structure | #20 Taiwan HIWIN Linear guide and helical rack |
| Z Structure | TBI Ball screw and #20 Taiwan HIWIN Linear guide |
| Driver and Motor | Stepper |
| Software | Artcam /Type 3 software |
| Spindle Speed | 0-18000RPM |
| Lubrication system | Manual |
| Inverter | 3.7kw Fuling Inverter |
| Command Language | G Code |
| Control System | DSP A11 |
| Computer Interface | USB |
| Collect | ER20 |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |

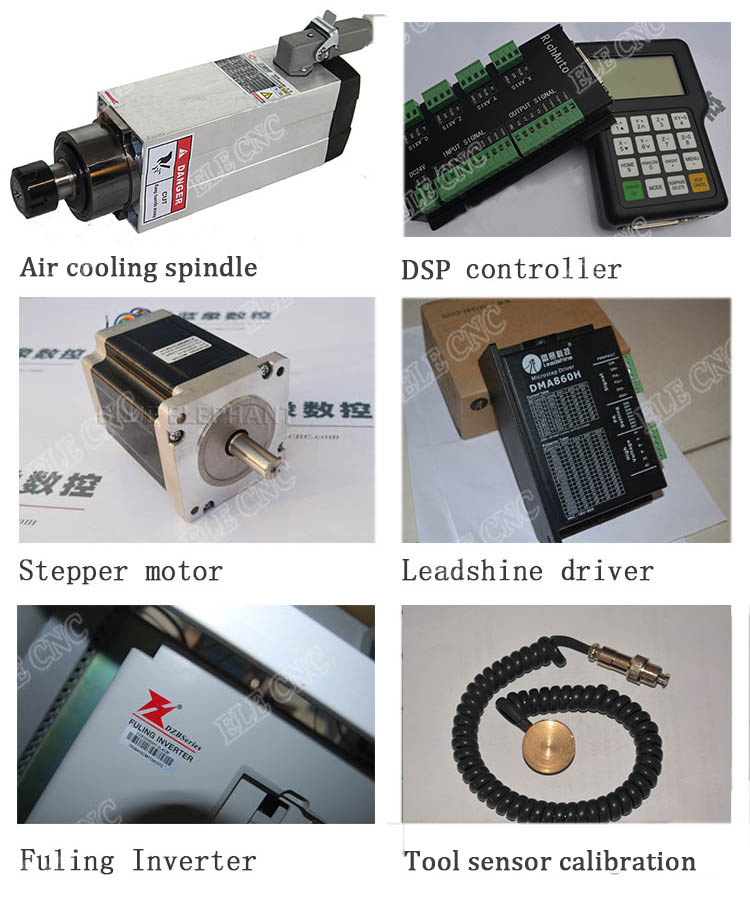

Machinery Details
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
Sample show:
Packaging and shipping:
1.Outside Package:Standard export wooden case .
Please contact us ,
So we can help you select the right system to meet your needs and fit your budget !
Manager : Jack
mobile : 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | AC380V/50/60Hz, 3pH (Option: 220V) |
| Dimension(L*W*H): | 3200*1840*1900mm |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| X,Y,Z Working Area: | 1300X2500*200mm |
| Spindle Power: | 3.5kw Changsheng Air Cooling Spindle |
| Control System: | DSP A11 |
| Inverter: | 3.7kw Fuling Inverter |
| Transmission: | Taiwan Tbi Ball Screw |
| Guide Rail: | #20 Hiwin Square Guide Rail |
| Spindle Speed: | 0-18000rpm |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
