Price: | US $ 8000-28000/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

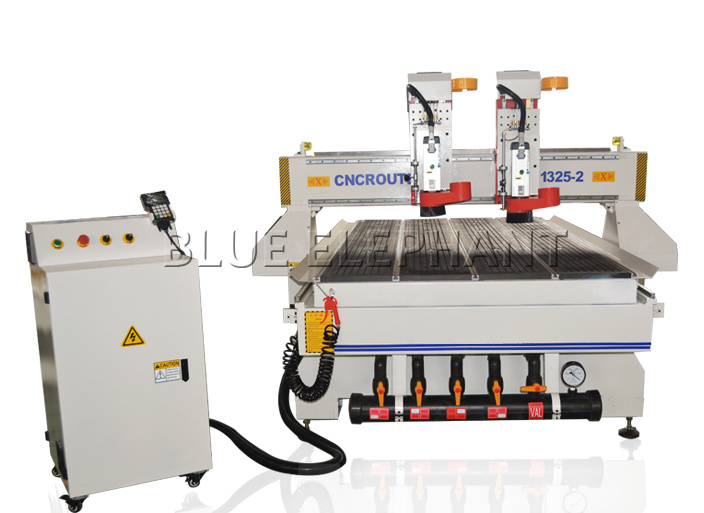

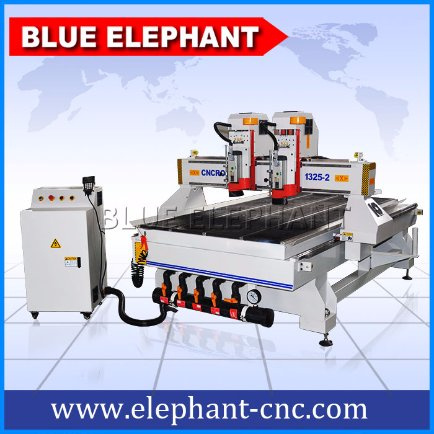

Technical Specifications of 1325 Cnc Router:
X,Y,Z Working Area | 1300x2500x200mm (Any other working size can be customized) |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vaccum & T-slot working table |
Frame | Welded Structure |
X, Y Structure | helical/Oblick rack gear, Taiwan Hiwin linear guide block |
Z Structure | Taiwan Hiwin Rail Linear Bearings and Taiwan TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 3KW Italy HSD air cooling spindle*2 |
Spindle Speed | 0-18000RPM |
Drive Motors | FL118 Stepper Motor |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP control System (Options: Mach3/Ncstudio/Taiwan SYNTEC) |
Computer Interface | USB |
Flash Memory | 512M(U Disk) |
Collet | ER20 ER25 ER30 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/Artcam Software(option: Ucancam) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.

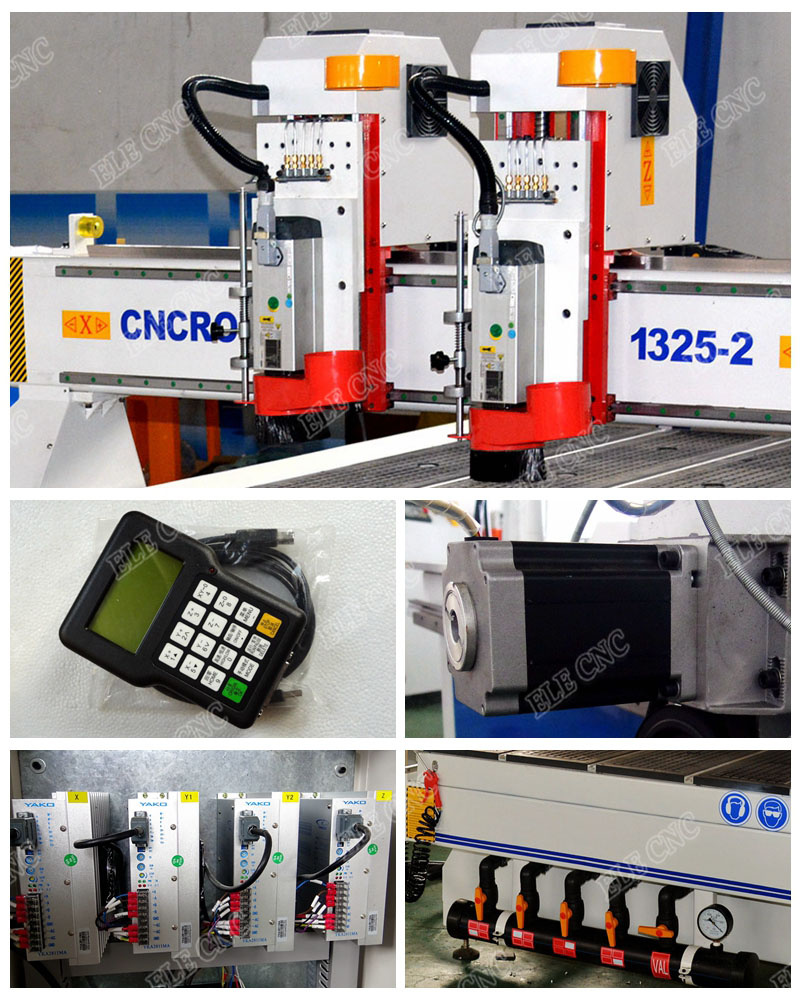

Advantage & Details of our 1325 cnc router:
Applications & Samples of our router cnc:

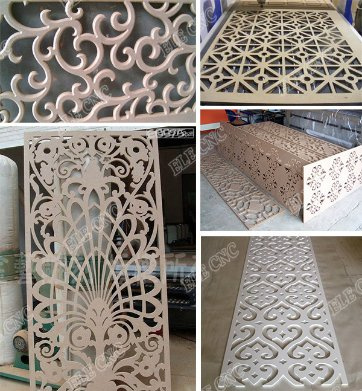

Samples:
Packing & Shipping:
Packaging : 1.outside package:Standard marine export plywood cases
2.inner package:Stretch film and plastic film for humidity
Shipping: maritime transport,air transport,land transport and the logistics transport

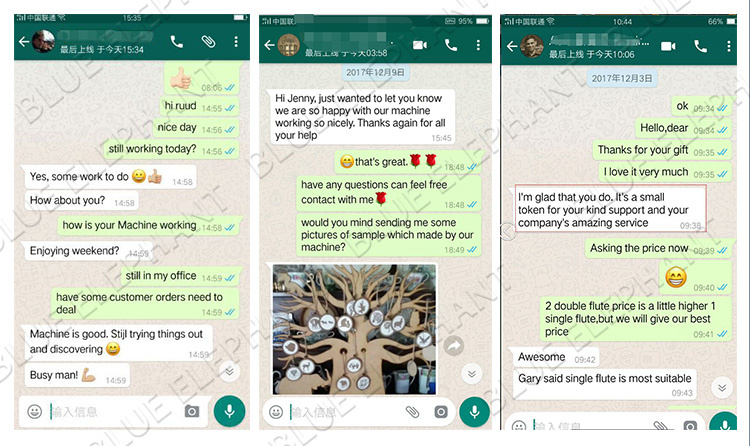

Feedback:
Our Services:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

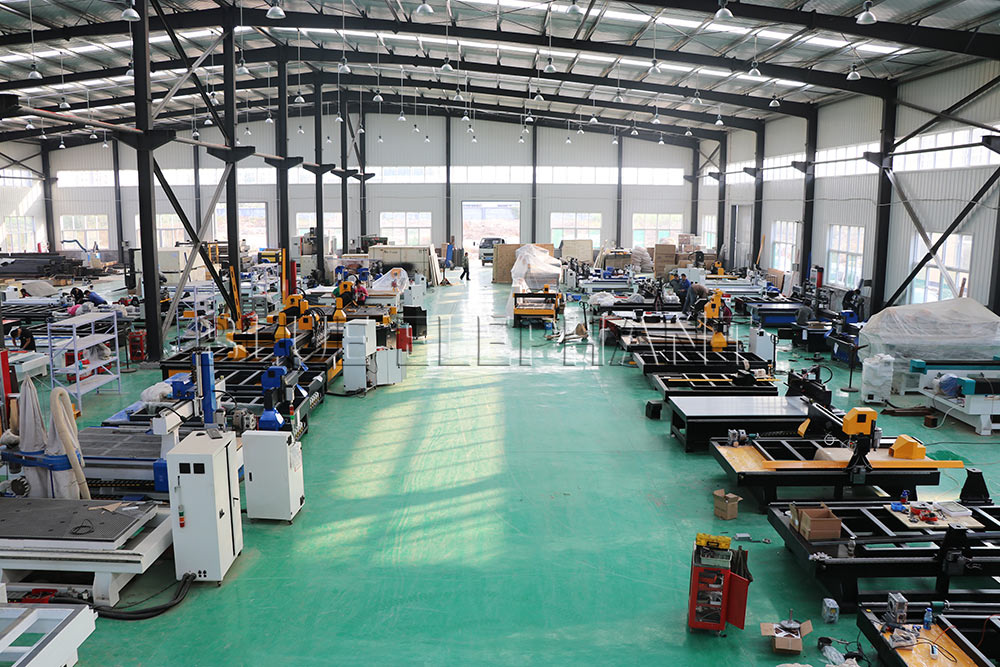

Welcome to our factory:
Contact Us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
Prod Model: | ELE-1235P |
---|---|
Voltage: | AC380V/50/60Hz, 3pH (Option: 220 |
Power(W): | 2.2kw |
Dimension(L*W*H): | 3200*2140*1850mm |
Weight: | 1400kgs |
Warranty: | 12 Months |
After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
Table Surface: | T-Slot Table |
X,Y,Z Working Area: | 1300X2500X160mm |
Running Environment Temperature: | 0 - 45 Centigrade |
Max. Rapid Travel Rate: | 33000mm/Min |
