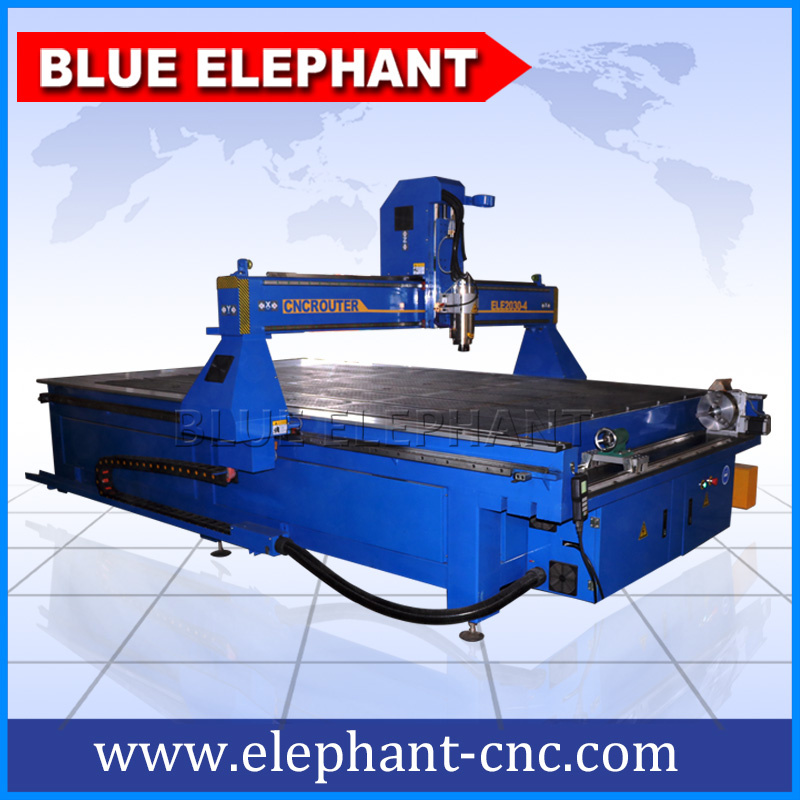

Ele 2030CNC Wood Carving Machine, 4 Axis CNC Router Machine for Aluminum
| Price: |
US $ 3800-8700set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
ELE 2030 cnc wood carving machine , 4 axis cnc router machine for aluminum

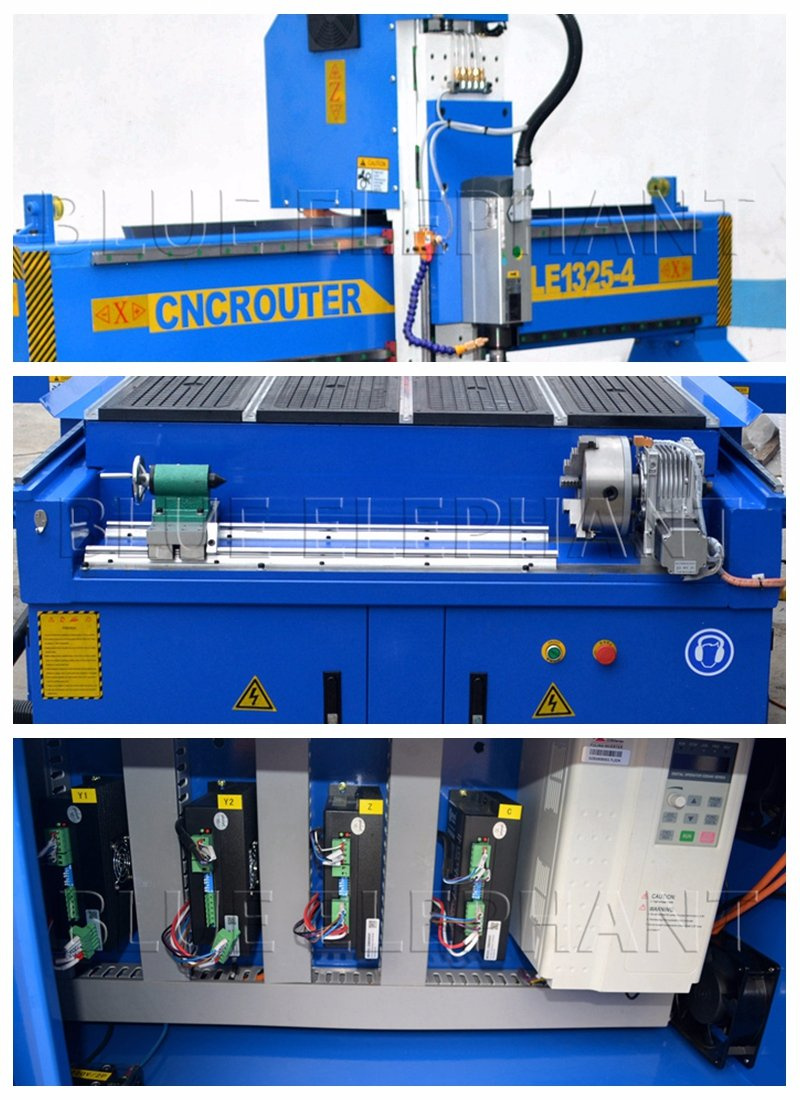

Features:
Effective working area:2000*3000mm , Z axis 300mm
6Kw water cooling spindle,24000rpm
7.5kw Fuling inverter
Stepper motor and drivers

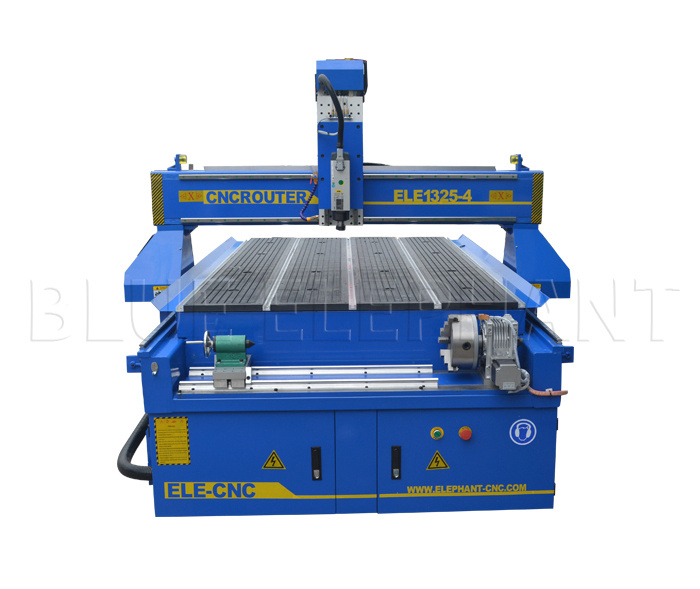

Rotary device:Integrated infront equipment 200*1400mm
Control system DSP A18 with USB interface
HIWIN#20 linear square guide way for X,Y,Z axis
Taiwan TBI ball screw for Zaxis
Vacuum and T-slot table
Japan OMRON limit switch for X,Y,Z axis
Tool sensor calibrate
Oil Lubrication System
Water mist cooling sprayer system
7.5KW water circulation vacuum pump
1.5KW newty pedust collector with two bags
Voltage:380V,3phase,50HZ Details:
Technical Parameters:| Description | Parameter |
| X,Y,Z Working Area | 2000x3000x200mm |
| Table Surface | Vacuum and T-slot Table |
| Frame | Welded Structure |
| X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
| Spindle Power | 6KW Changsheng water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Motors | FL118 stepper motor |
| Driver | YAKO 2608 |
| Inverter | 7.5kw Fuling inverter |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | DSP A18 |
| Computer Interface | USB |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Application1.Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.
2.Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.
3.Die industry:A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical objectSamples
Our Services1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.Our Factory
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine and plasma cutting machine .
We have our R & D department , Quality control department , and after sale & service department .
Our products are widely used in Woodworking , Advertising , Model , Electric , CAD / CAM Industry model , Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and SGS certification , always offer best quality machine .
Welcome to visit our factory!
Welcome to contact us.Manager : Jack
mobile : 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: |
ELE 2030 |
| Voltage: |
AC 220V/1pH/50Hz(380V/3pH Optional) |
| Dimension(L*W*H): |
3700*2140*1850mm |
| Power(W): |
7kw |
| Spindle Power: |
6kw Changsheng Water Cooling Spindle |
| Table Surface: |
Vacuum&T-Slot Working Table |
| Driver Mortors: |
Stepper System |
| Operating System: |
DSP A18 for 4 Axis |
| Spindle Speed: |
0-24000rpm |
| Inverter: |
7.5kw Fuling Inverter |
| Working Area: |
2000*3000mm |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
