| Price: | US $ 1999-5999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

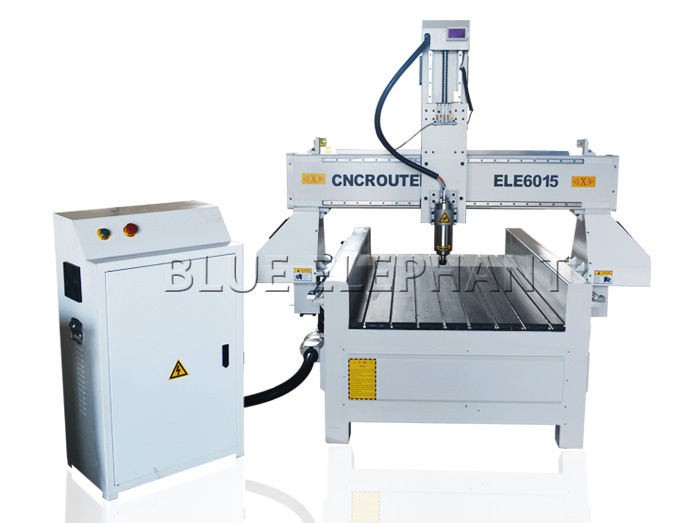

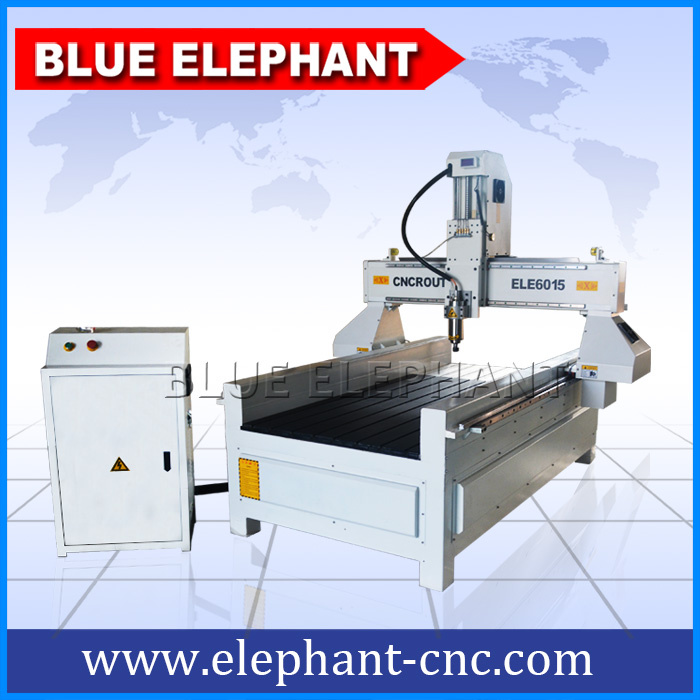

ELE 6015 woodworking machinery cnc router , Small Cnc Router for advertising industry
Advantages:
1.600*1500*400mm working area,the z-axis sinks 200mm,It is suitable for processing materials with thickness greater than 200mm.
2.8mm steel minimum, heat treated after welding for stress relief, painted.
3.Aluminum profile T-slot working table with PVC protection.
4.Panasonic Servo motor and driver 400w (Original) for all axis 4 motors in total.
Features:
1. 600*1500*400mm effective working table.
2. 2.2kw water cooling spindle.
3. 2.2kw Fuling inverter.
4. Taiwan HIWIN linear guide for ALL axis 5. Helical rack on X, Y axis,Taiwan TBI ball screw on Z axis.
5. Mach3 control system.
6.12 pieces roter bits (3.175mm 4mm 6mm cutters).
7.AC220V/1PH/50Hz (110v for optional).
8.Japan Omron limit switch.
9.Plywood case package.

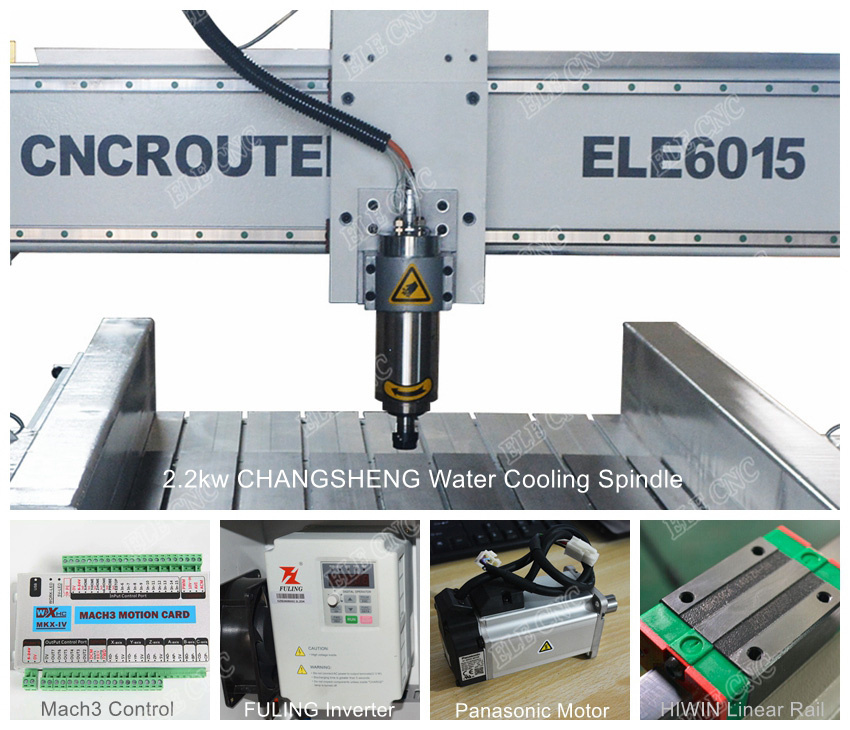

Main parts:
Technical Parameters:
| Model | ELE 6015 |
| Working area | 600*1500*400mm(customized) |
| Control system | Mach3 controller |
| Spindle power | 2.2kw water cooling spindle |
| Spindle speed | 0-24000rpm |
| Inverter | 2.2kw Fuling inverter |
| Motor and driver | 400w Japan Panasonic driver and motor |
| Table surface | Aluminum profile T-slot working table with PVC protection |
| X,Y axis transmission | #20 Taiwan HINWIN linear guide ,helical rack |
| Y axis transmission | Taiwan TBI ball screw |
| Software | ARTCAM2012 |
| Voltage | AC220V/1PH/50HZ |
| Accessories | Manual,CD |
Applications:
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors,
interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other
advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden
planks and other non-metallic mold.
4.Relief sculpture and 3D engraving

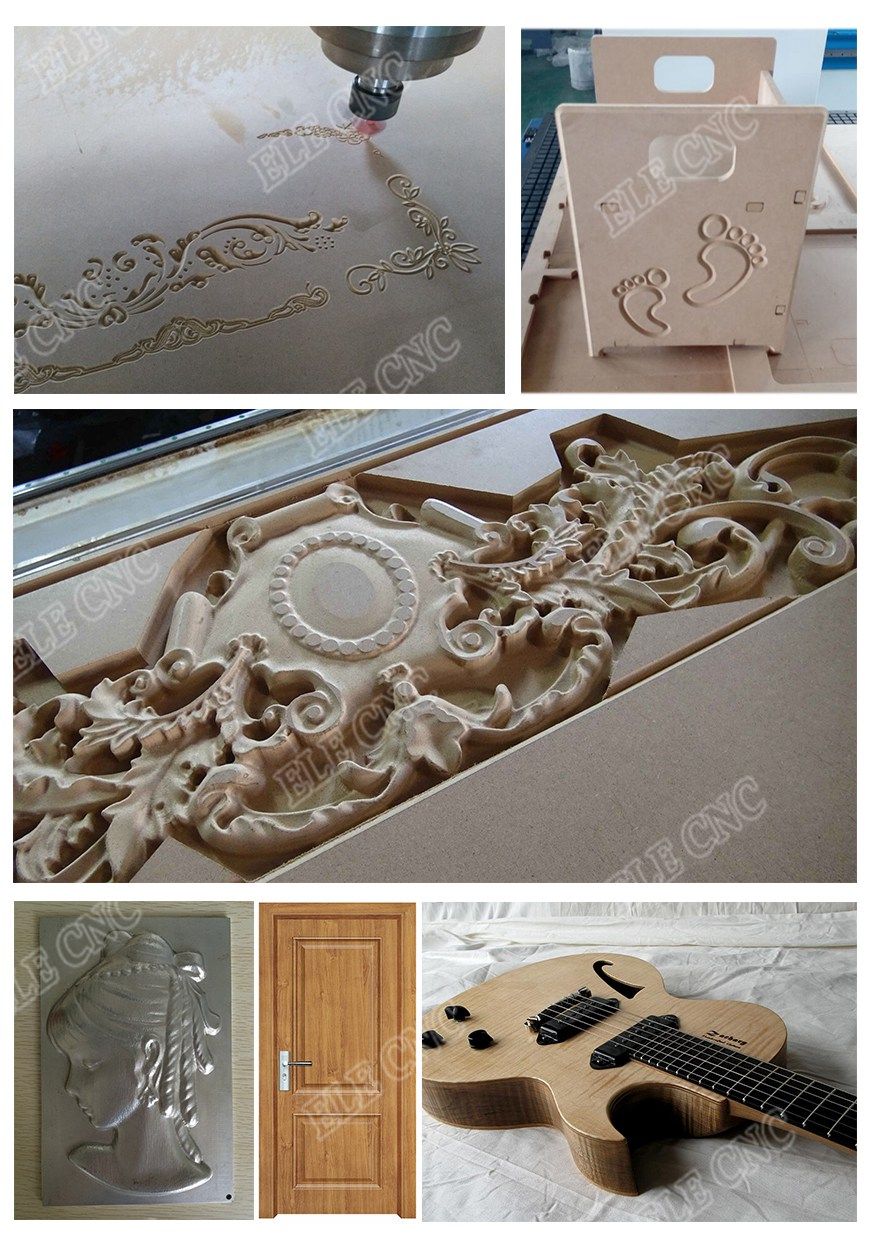

Working samples:
Packaging & Shipping
Welcome to contact us.
Manager : Jack
Whats app/mobile : 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: | ELE 6015 |
|---|---|
| Voltage: | 220V,1pH,50Hz(110V for Optional) |
| Dimension(L*W*H): | 1200*1600*700mm |
| Spindle: | 2.2kw Water Cooling Cooling Spindle |
| Control System: | Mach3 Controller |
| Transmission: | Taiwan Tbi Ball Screw |
| Software: | Artcam2012 |
| Motor And Driver: | 400W Japan Panasonic Servo Motor |
| Applications: | Wood/Metal/Stone/Glass/Plastic |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
