Price: | US $ 3999-9999/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

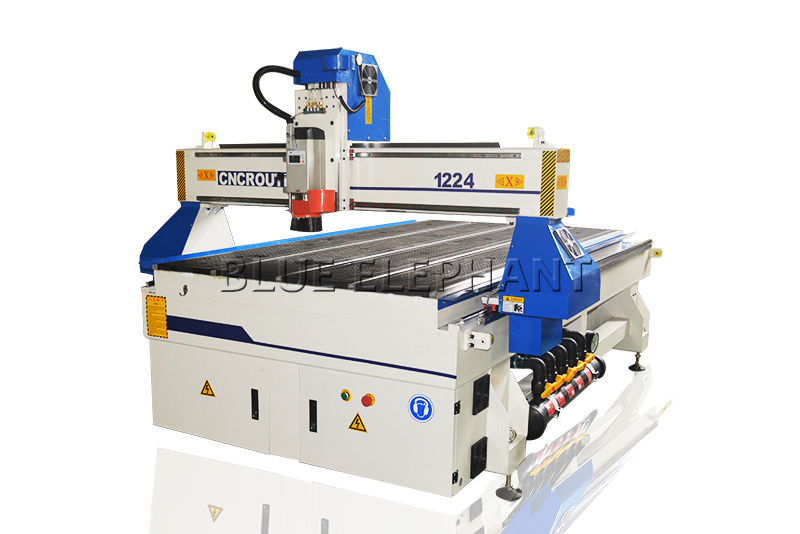

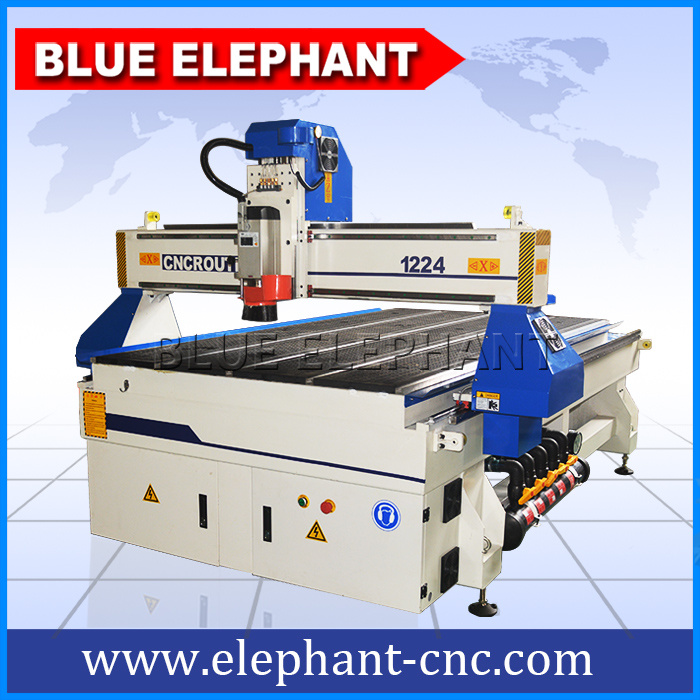

Features of cheap cnc router 1224:
T-slot&vacuum table
Integrated control box

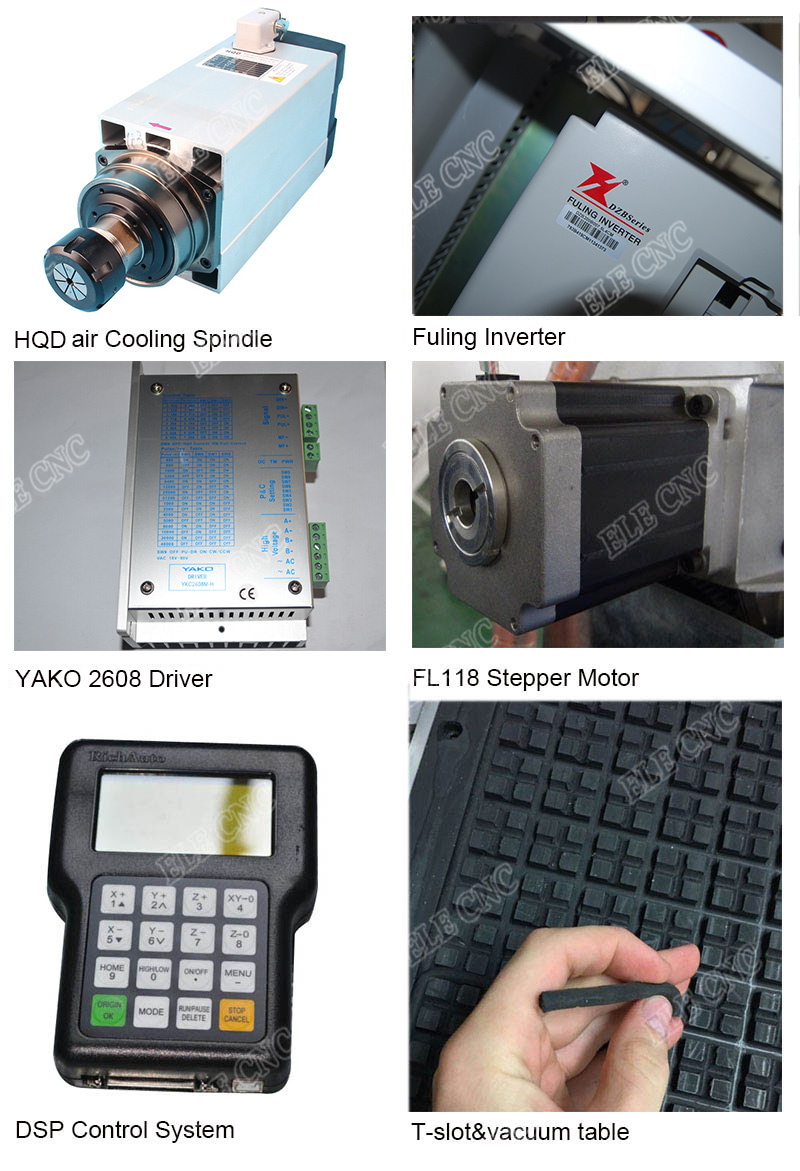

Technical Parameters of cheap cnc router 1224:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1200x2400x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | T-slot & vacuum Table |
6 | Spindle | 4.5kw HqD air cooling spindle |
7 | X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
9 | Stepper Motor | FL118 |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Stepper driver | YAKO 2608 |
13 | Spindle Speed | 0-18000RPM |
14 | Lubrication system | Manual |
15 | Inverter | 5.5kw Fuling Inverter |
16 | Command Language | G Code |
17 | Control System | DSP A11 |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.

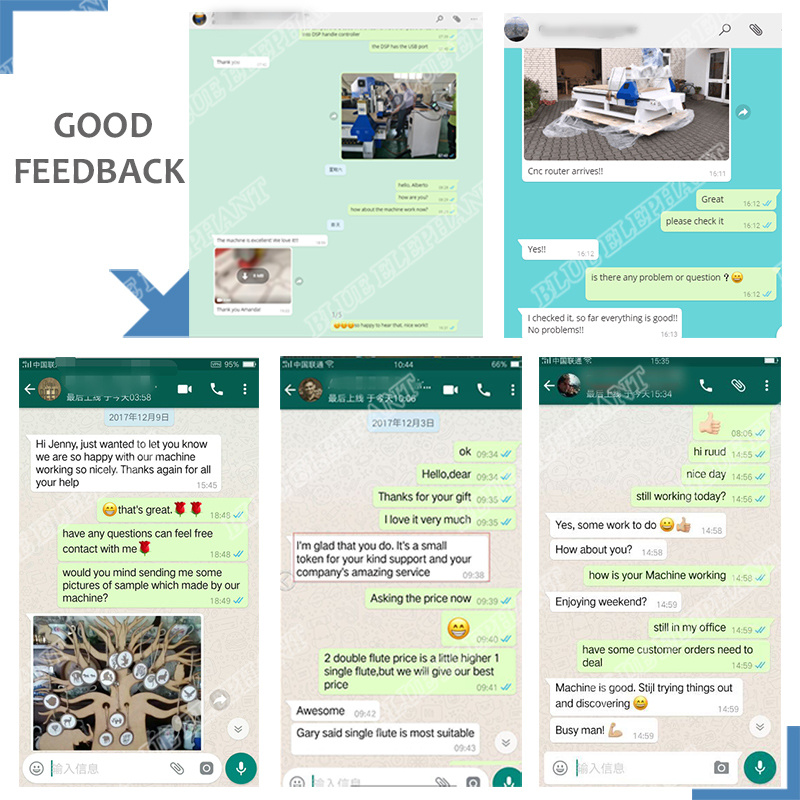

Customers Feedback:
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
Prod Model: | ELE1224 |
---|---|
Motor: | Stepper Motor |
Spindle: | 4.5 Kw Hqd Air Cooling Spindle |
Transmission: | Taiwan Tbi Ball Screw |
Guide Rail: | Hiwin 20# Square Guide Rail |
Working Area: | 1200X2400*200mm |
Control System: | DSP A11 Control System |
Power(W): | 6kw |
Command Language: | G Code |
Weight: | 1200kg |
Spindle Speed: | 0-18000rpm |
Spindle Layout: | Spindle Over |
Spindle Number: | Single-Spindle |
Feed Mode: | Mechanical |
Controlling Mode: | CNC |
Certification: | SGS BV TUV |
