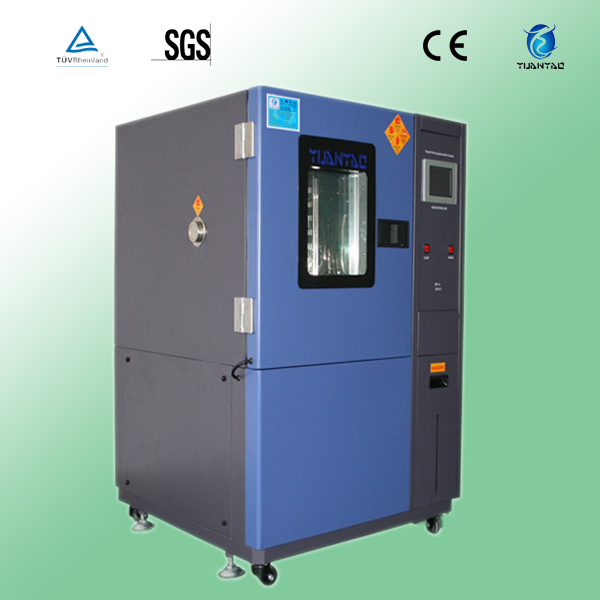

Environmental Temperature Humidity Resist Test Equipment

Environmental temperature humidity resist test equipment


Temperature Humidity Resist Test Equipment is suitable for temperature humidity changes adaptability tests for Electrical, Instruments, Meters and other products, spare parts and materials in stock, transit and use in complex high/low temperature humidity environment.

Features

1) Especially suitable for optical fiber, LCD, crystal, inductor, PCB, batteries, computers, mobile phones, rubber, plastics and other product.
2) The new perfect design, the appearance of high texture level, the system extracts Japan, West Germany, the essence of design and manufacture of advanced technology.
3) Balanced temperature humidity control system (BTHC), to PID mode control SSR, so that heated humidification system was equal to heat loss capacity, it could be used long-term stability;
4) All-capillary, automatic load capacity adjustment system technology, more expansion valve system more stable and reliable, precise temperature and humidity control, heating and cooling rate of rapid, steady, uniform, saving valuable time for users.

Model				YTH-080	YTH-150	YTH-225	YTH-408	YTH-800	YTH-1000
Inner        chamber  size  W*H*D(mm)				400*500*400	500*600*500	500*750*600	600*750*600	1000*1000*800	1000*1000*1000
Exterior  chamber  size  W*H*D(mm)				900*350*910	950*1500*1050	950*1650*1150	1050*1750*1350	1450*1900*1350	1450*1900*1550
Temperature  Range				-73º C-60º C,   -40º C, -20º C, 0º C~+150º C, +180º C
Humidity        Range				20%-98%RH
performance	Temp. & Humi. Fluctuation			± 0.2º C, ± 0.5%RH
	Temp. & Humi. Uniformity			± 1.5º C, ± 2.5%RH  when  RH  is  ≤ 75%, ± 4%RH  when  RH  is  75% (tested  with  the  empry  chamber,   30  minutes  after  stabilization
	Temp. & Humi. Resorlution			0.01º C, 0.1%RH
	Heat  up  time(20º C~high  temp. )		º C	100    150	100      150	100      150	100    150	100    150	100      150
			minutes	30      40	30      40	30    45	30    45	30      45	30      45
	Cool  down  time(20º C~low  temp.		º C	0  -20  -40  -60  -70	0  -20  -40  -60  -70	0  -20  -40  -60  -70	0  -20  -40  -60  -70	0  -20  -40  -60  -70	0  -20  -40  -60  -70
			minutes	25  40  50  70  80	25  40  50  70  80	25  40  55  70  80	25  40  55  70  80	25  40  65  75  85	25  40  65  75  85
material	Exterior  chamber  material			Stainless  steel  plate+  Power  Coated
	Inner        chamber  material			SUS#304  stainless  steel  plate
	Insulation			PU&   Fiberglass  wool
system	Wind  Circulation			Sirocco  fan
	Heating  system			SUS#304  stainless  steel  high-speed  heater
	Humidifying			Surface  evaporating  system
	Cooling			Imported  compressor,   finned  type  evaporator,   air-cooling  condenser
	Dehumidifying			ADP  critical  dewpoint  cooling/dehumidifying  method

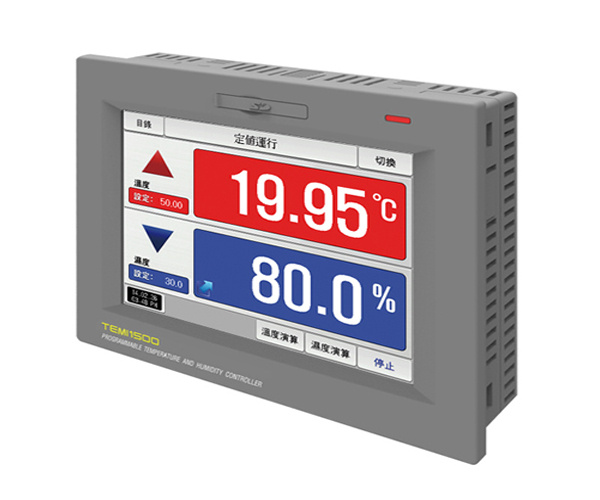

	Controller			Digital  electronic  indicators  +S. S. R. with  PID  automatic  calculation  capability
Other  Components				Vaccum  glass  inspection  window,   cable  port(50mm),   control  status  indicator  lights, chamber  lamp,   loading  shelves(2pcs  for  free)
Safty  Devices				Overheating  circuit-breaker, compressor  overload  protection, control  system  overload  protection, humidifying  system  overheating  protection,   beakdown  indicator  light
Power  Supply				AC1φ 220V; 3φ 380V  60/50Hz
Costomization				Customization  of  inner  chamber  size,   tempreture& humidity  range, ect.

Except Temperature Humidity Test Chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Welcome to enquire and purchase!
