Explosion-Proof Glass, Heat Mirrors, Borosilicate Glass Mirrors, Glass Lamp, Underground Lamp Glass
| Price: |
US $ 13/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
131/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| material | od | wall thickness |
| borosilica | 50mm | 3mm |

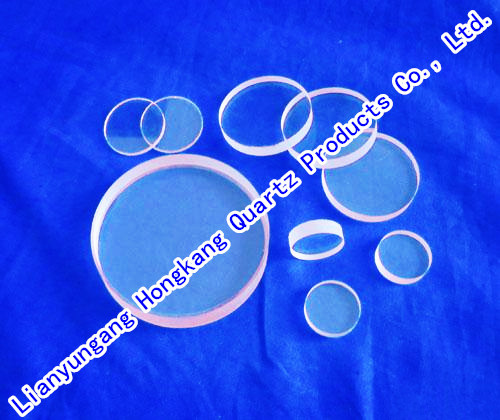

Ultra-thin optical glass optical glass thin quartz glass
Thin quartz glass thickness of up to 0.05mm
Specific dimensions and technical requirements determined by the customer, we guarantee the quality of the product!
1. Common size category:
The thickness of 0.05mm Dimensions: 5-25mm
0.1-0.2mm thickness dimensions: 10-30mm
Thickness 0.25-0.5mm Dimensions: 10-100mm
0.5-1mm thickness Dimensions: 10-150mm
2. Tolerance: Minimum tolerance of up to 0.02mm
3. Purity: 99.96-99.99%
4. Flatness: 0.05mm can be done within
Quartz glass is manufactured prisms, lenses and requires working with a high optical materials essential for stability in the harsh light system applications. It is widely used in space technology, detecting and tracking systems, spectral instruments, as well as a variety of high-temperature operation of the window material.
Our current production of optical quartz glass varieties, the production process is not the same, in order to facilitate the user to select:
1) far ultraviolet quartz glass (JGS1): Liquid silicon tetrachloride with high-purity hydrogen flame melts direct high-quality optical quartz glass. Such glass can be completely free of bubbles, having a satisfactory UV performance, particularly in the short-wave UV region, which surpass all the other glass permeation performance, transmittance 185mμ Is up to 85% at 185 excellent optical wavelength range within -2500mμ Material. Because of this glass contains OH groups, so the infrared transmission performance is poor, especially in the vicinity of 2.7μ Had a large absorption rate;
2) ultraviolet quartz glass (JGS2): Senior with hydroxide flame melting crystal powder made of optical quartz glass. It is a good material within 220-2500mLl wavelength range;
3) infrared optical quartz glass (JGS3): Crystal powder is melted advanced optical materials made of vacuum pressure in the furnace. Has a high performance infrared transparent, 1-3μ Transmittance up to 90%. Application wavelength range 260-3500mμ ;
4) through the whole optical quartz glass: High-purity raw material is used, a hydrogen-free heat source for melting glass made of quartz, applications in the wavelength range 200-3500mμ , UV 240mμ , infrared 2.7μ No absorption peak.
| Prod Model: |
HKQT-606 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 50: |
30 |
| Type: |
Manufactured Sand |
| Application: |
Decorations |
| Shape: |
Quartz Stone & Sand |
| Size: |
10-60 Mesh |
Lianyungang Hong Kang quartz Products Co., Ltd. is located in "Chinese quartz Center ---- Donghai County, Jiangsu Province. Hong Kang Technology Company is a production and sales of high-tech materials industry. The company mainly involved in: A the quartz industry (quartz plate, quartz windows, quartz observation window, gold-plated quartz plate, etc. ), the semiconductor industry, fiber industry (quartz tube, quartz tail rod, hand-held stick products) and the solar industry. The products include all kinds of quartz products, quartz tube, thick-walled quartz tube, the back cover of quartz tube, quartz rod (the ingot furnace quasi long grain test quartz rod, fiber quartz rod, high purity quartz rod, fiber optic lighting quartz rod), quartz plate, quartz products, quartz parts, quartz boat, quartz block, quartz cleaning tank, quartz mound, quartz sight glass, quartz ring, quartz flange, quartz crucible, quartz beaker, quartz tube, quartz, quartz reagent bottle of quartz, quartz instruments.
The Hong Kang Shiying professional production of all kinds of quartz glass with, semiconductor the (quartz boat, tube cleaning tank), microelectronics (quartz-oxidation furnace, grinding mouth diffusion furnace, sintering furnace tube, the reaction tube, quartz rod groove boat, quartz journey, boat-shaped quartz boat, the semicircle boat, flat boat. Quartz groove cleaning flowers blue, the circular sieve bottom cleaning blue flowers, to cleaning with a quartz square cylinder, square quartz Cup. Quartz plastic bottles, Shiying Yuan bottle, quartz bubbling bottles. Quartz pure water heater, quartz hook), optoelectronics, solar energy (suction pen, waste container, the source bottle insulation mass diffusion tube, quartz boat, the PECVD pipe and furnace insulation tube), Chemicals (quartz beaker, flask, flask, spherical flask, flask, spherical cold Instrument, serpentine cold Instrument, distillation high water horizontal distiller, secondary distillation of high pure water, silicon tetrachloride fractionator Park The bottom evaporating dish, flat-bottomed evaporating dish, test tubes, watch glass, triangular funnel, separating funnel) quartz glass products, specializing in the production of various types of semiconductor quartz tooling, specializing in the production of semiconductor industry, according to customer requirements.
A, in accordance with the drawings of the customer, or in accordance with the requirements of customers design. B, with a number of semiconductor and solar photovoltaic companies have partnerships, quality and reputation can be assured. C, my company's products in addition to selling more than twenty provinces, municipalities and autonomous regions. We are currently the main supporting customers in Taiwan, 70% of quartz products exported to Taiwan, Japan, South Korea, the United Kingdom, the United States, Germany, France, Russia and other countries D, raw materials used in domestic high-purity, GE, Heraeus, high purity quartz. E, we have timely support services, to provide maintenance for customers to solve all your worries.
The increasing development of China's high-tech, microelectronics (solar photovoltaic), optical fiber manufacturing industry, Hong Kang Danying is willing to work with you together to seek common development!
