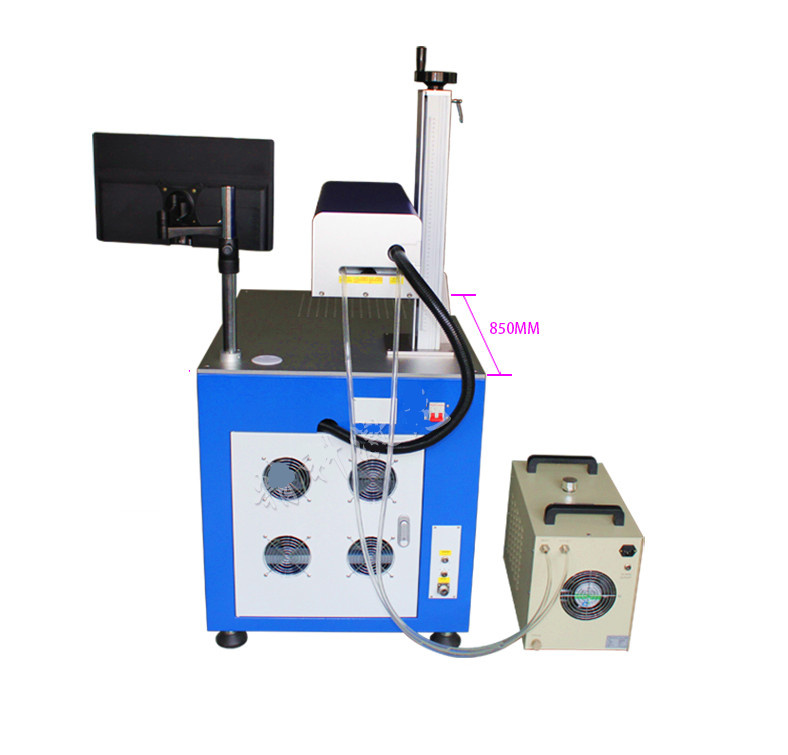

Ezcad Laser Control Water Cooling 355nm UV Purple Laser Marking Machine for Glass, LCD, , IC Crystal, Sapphire and Polymers
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
UV Fiber Laser Marking MachineFeatures1.It adopts 355nm UV fiber laser and is especially good for glass LCD, thin slice ceramics , sapphire and polymers material marking.2.It adopts Germany technology high speed galvanometer. 3.CCD automatic identification and tracking system can be equipped.4.It can be matched with CorelDraw, AutoCAD, Photoshop and others. It also support PLT,PCX,DXF,BMP,etc. It also can directly uses SHX and TTF FontLab.5.It has lifting wheel scale. Operator can check exact scale.Specification:1.Fiber laser type: 355nm UV fiber laser2.Laser power: 3W or 5W3.Laser beam quality: M2 is less than 1.14.Output laser power: 0-100% continuously tunable5.Output laser frequency: 5KHz-100KHz continuously tunable6.Power stability(8H): Less than 1%RMS7.Pulse width: 10-50NS8.Laser spot diameter: Less than 0.01mm9.Focus system: Automatic red light focus10.Marking type: Dynamic or static marking11.Marking speed: 800PCS standard character/S12.Min line width: Less than 0.005mm13.Min character: 0.15mm14.Repeatability: 0.001mm15.Max marking area: 110x100mm-300x300mm16.Machine size: 850x650x150mm17.Machine size: 120Kg 18.System operation environment: WindowsXP19.Cooling method: Forced water cooling20.Electric power: 220V/One phase/50Hz/less than 800W21.Laser module service time: 20000hoursApplication materialsAll glass, LCD, textiles ,thin slice ceramics , semiconductor silicon ,IC crystal, sapphire and polymers material marking or surface treatment.Application industryMobile phone key, plastic transparent key, electronic component, integrated circuit (IC), electrical appliances, communication products, sanitary ware, tools & accessory, eyeglass & clock, pearls and jewels, auto parts, luggage decoration, kitchenware, stainless steel decoration and others.
| Prod Model: |
3-5W UV Fiber Laser marking machine |
| Laser Type: |
3/5W 355nm UV Fiber Laser |
| Material: |
Glass LCD, Thin Slice Ceramics , Sapphire and Pol |
| Germany Galvanomet: |
Yes |
| Coreldraw, Autocad, Photoshop: |
Yes |
| Plt,Pcx,Dxf,BMP: |
Yes |
| Output Laser Frequency: |
5kHz-100kHz Continuously Tunable |
| Fiber Wideth: |
10-50ns |
| Marking Type: |
Dynamic or Static Marking |
Welcome to Jinan Ruby Laser Technology Co., Ltd(Short for Rubylasertech). Seven years ago, it once worked as a premier provider to develop CO2 power supply, YAG pulsed or CW power supply for laser engraving or cutting machine. From then on the company devotes its time and energy to various laser and optics solutions to machine factory in China and other countries. Up to now, it has rich experience to offer high quality products and service to factories or machine users.
Owing to strong demand of laser processing around the word recently, it starts to design, manufacture and sell its own brand laser machine. Product range mainly is small and medium-sized CO2 or fiber marking machine. As skilled laser integrator, Rubylasertech uses high quality laser spares(Eg, fiber laser, scanning galvanometer, motor, laser cutting control system) to build machine and make sure it has excellent cutting performance and good user experience. Some spares are imported from Germany, USA and Japan.
Besides standard configuration, the company can also offer special configuration machine on client demand. Design flexibility is our biggest feature. With advanced technology, qualified products and excellent after sales service, it is Rubylasertech's wish to let worldwide client enjoy convenience and delight brought by its product.
