Product Specifications
| Prod Model: |
HSCO2-60W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Usage: |
Woodworking |
| Applied Materials: |
All Nonmetal |
Product Description

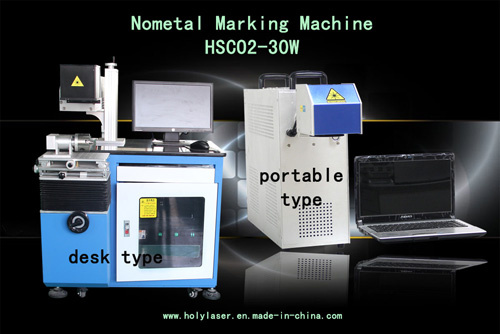

CO2 nonmetal laser marking cutting engraving machine for nonmetal materials. HSCO2-60W
Professional Description:
CO2 laser marking machine is a gas laser machine whose laser wave length is 10.64nm. CO2 gas is filled in the discharge tube as a medium to produce laser. When the electrode is added with high voltage, it will discharge strong electricity in the discharge tube and then, the CO2 gas will release laser. After the energy of laser is strengthened, laser beam is produced. Computer will control the galvonometer(its function is like a mirror) to change the path and direction of the laser beam to mark on materials. The whole marking period is automatically!
The machine can mark on wood, bamboo, paper, leather, cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.
It can be widely used in the industry of leather, food, beverage, cloth, electronic, meter, communication instruments, package etc. The machine can also be combined with large amount production for flying marking.
Machine Feature:
1. All laser source coherent is imported from USA. Low power consumption, cost effective and long lifespan, maintenance-free.
2. Stable laser output and good laser beam quality
3. Be compatible with AUTOCAD, CORELDRAW, PHOTOSHOP, Support PLT, PCW, DXF, BMP, PCX, JPG.
4. The machine can be used to mark common picture, bitmap graphics, date, serial number, bar code, letter, 2D code, automatic jump codes, etc.
5. Cooling way: Low power with air cooling, high power with water cooling.
6. Can not only mark plane surface, but also roll materials and such as cylinders, pencil, vase, flute, bottle and so on
CO2 nonmetal laser marking cutting engraving machine for nonmetal materials has other different Watt, Size. Displayed here is one of our NONMETAL CO2 series. If you want other type machines, please Contact us for more detail! ! !
Factory Profile:
1. Supported by the government of Yiwu City
2. Cooperate with the Zhejiang University, update for technology
3. We are the manufacturer, our price are the most competitive!
4. With 13 years history on researching and producing all kinds of laser machines
5. Our company welcomes AGENTS all over the world
After-sale service:
1. One year guarantee period for product quality. (man made damaged is negotiable).
2. Lifelong maintenance and spare parts supply.
3. Free design of fixtures as customers required.
4. Free training for machines installation and operation of the staffs.
5. Free samples marking of customer provided.
Warmly welcome you visit our factory! ! !
Warmly welcome you contact us directly for more information! ! !
Contact info:
Mobile: +86 13750931437
|
marking scope (mm) |
70*70, 110*110, 175*175, 300*300 mm |
response time |
0.8ms |
Extender lens |
optional |
laser wavelength |
10.64MM |
output power |
60w |
min. line width |
0.2mm |
marking speed |
≤7000mm/s |
repeatability precision |
±0.0001mm |
marking depth |
≤6mm |
min. character |
0.8mm |
pulse frequency |
20khz |
highest resolution |
65525 |
weight |
80kg |
size for machine |
1080*550*1338 |
marking style |
plane / rotary |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
