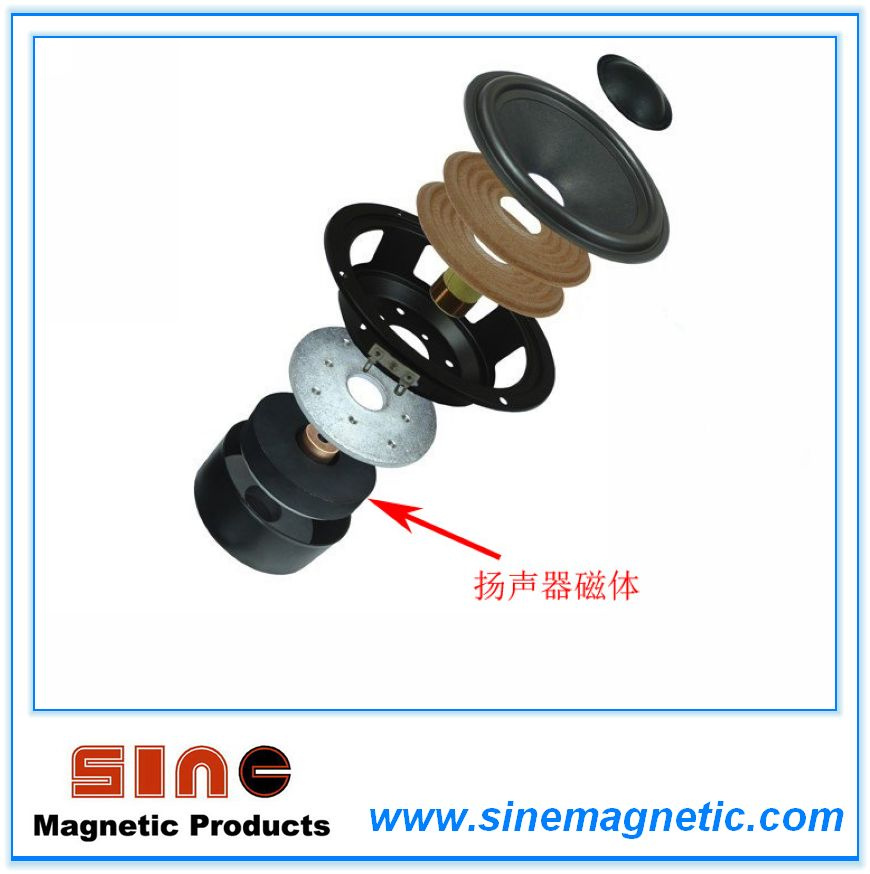

Ferrite loudspeaker magnet
Features:
1) Cheapest magnet material
2) Good anti-corrosion performance, no need to surface treatment.
3) Best temperature stability
4) Best choice for industrial application
5) All shapes can be customized
6) Compact crystal
7) provide isotropic and anisotropic
8) OEM service
Products: Segment ferrite magnets, hard ferrite magnets, arc segment magnets
1. Material: SrO,BaO,Fe2O3.
2. Grade: Y30,Y30BH,Y35,C5,C8,C11
3. Shapes: Ring
5. Certificates: , SGS, ISO9001:2000
6. Application: audio, dynamo, Motors, Speakers, Sensors etc
| Grade | (Br) | (HcB) | (HcJ) | (BH)max |
| mT | KGauss | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe |
| Y8T | 200~235 | 2.0~2.35 | 125-160 | 1.57-2.01 | 210-280 | 2.64-3.51 | 6.5-9.5 | 0.8-1.2 |
| Y22H | 310~360 | 3.10~3.60 | 220-250 | 2.76-3.14 | 280-320 | 3.51-4.02 | 20.0-24.0 | 2.5-3.0 |
| Y25 | 360~400 | 3.60~4.00 | 135-170 | 1.70-2.14 | 140-200 | 1.76-2.51 | 22.5-28.0 | 2.8-3.5 |
| Y26H-1 | 360~390 | 3.60~3.90 | 200-250 | 2.51-3.14 | 225-255 | 2.83-3.20 | 23.0-28.0 | 2.9-3.5 |
| Y26H-2 | 360~380 | 3.60~3.80 | 263-288 | 3.30-3.62 | 318-350 | 3.99-4.40 | 24.0-28.0 | 3.0-3.5 |
| Y27H | 350~380 | 3.50~3.80 | 225-240 | 2.83-3.01 | 235-260 | 2.95-3.27 | 25.0-29.0 | 3.1-3.6 |
| Y28 | 370~400 | 3.70~4.00 | 175-210 | 2.20-3.64 | 180-220 | 2.26-2.76 | 26.0-30.0 | 3.3-3.8 |
| Y28H-1 | 380~400 | 3.80~4.00 | 240-260 | 3.01-3.27 | 250-280 | 3.14-3.52 | 27.0-30.0 | 3.4-3.8 |
| Y28H-2 | 360~380 | 3.60~3.80 | 271-295 | 3.40-3.70 | 382-405 | 4.80-5.08 | 26.0-30.0 | 3.3-3.8 |
| Y30H-1 | 380~400 | 3.80~4.00 | 230-275 | 2.89-3.46 | 235-290 | 2.95-3.64 | 27.0-32.5 | 3.4-4.1 |
| Y30H-2 | 395~415 | 3.95~4.15 | 275-300 | 3.45-3.77 | 310-335 | 3.89-4.20 | 27.0-32.0 | 3.4-4.0 |
| Y32 | 400~420 | 4.00~4.20 | 160-190 | 2.01-2.39 | 165-195 | 2.07-2.45 | 30.0-33.5 | 3.8-4.2 |
| Y32H-1 | 400~420 | 4.00~4.20 | 190-230 | 2.39-2.89 | 230-250 | 2.89-3.14 | 31.5-35.0 | 3.9-4.4 |
| Y32H-2 | 400~440 | 4.00~4.40 | 224-240 | 2.81-3.01 | 230-250 | 2.89-3.14 | 31.0-34.0 | 3.9-4.3 |
| Y33 | 410~430 | 4.10~4.30 | 220-250 | 2.76-3.14 | 225-255 | 2.83-3.20 | 31.5-35.0 | 3.9-4.4 |
| Y33H | 410~430 | 4.10~4.30 | 250-270 | 3.14-3.39 | 250-275 | 3.14-3.45 | 31.5-35.0 | 3.9-4.4 |
| Y34 | 420~440 | 4.20~4.40 | 200-230 | 2.51-2.89 | 205-235 | 2.57-2.95 | 32.5-36.0 | 4.1-4.4 |
| Y35 | 430~450 | 4.30~4.50 | 215-239 | 2.70-3.00 | 217-241 | 2.73-3.03 | 33.1-38.2 | 4.1-4.8 |
| Y36 | 430~450 | 4.30~4.50 | 247-271 | 3.10-3.40 | 250-274 | 3.14-3.44 | 35.1-38.3 | 4.4-4.8 |
| Y38 | 440~460 | 4.40~4.60 | 285-305 | 3.58-3.83 | 294-310 | 3.69-3.89 | 36.6-40.6 | 4.6-5.1 |
| Y40 | 440~460 | 4.40~4.60 | 330-354 | 4.15-4.45 | 340-360 | 4.27-4.52 | 37.6-41.8 | 4.7-5.2 |
| Grade | (Br) | (HcB) | (HcJ) | (BH)max |
| mT | KGauss | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe |
| YN1T | 63-83 | 0.63-0.83 | 50-70 | 0.63-0.88 | 175-210 | 2.20-2.64 | 0.8-1.2 | 0.1-0.15 |
| YN4H | 135-155 | 1.35-1.55 | 85-105 | 1.07-1.32 | 175-210 | 2.20-2.64 | 3.2-4.5 | 0.4-0.56 |
| YN4TH | 150-180 | 1.50-1.80 | 95-120 | 1.19-1.38 | 180-230 | 2.26-2.89 | 3.8-5.5 | 0.48-0.69 |
| YN6T | 180-220 | 1.80-2.20 | 120-140 | 1.28-1.76 | 175-200 | 2.20-2.51 | 5.0-7.0 | 0.63-0.88 |
| YN10 | 220-240 | 2.20-2.40 | 145-165 | 1.82-2.07 | 190-225 | 2.39-2.83 | 9.2-10.6 | 1.15-1.33 |
| YN10H | 220-250 | 2.20-2.50 | 150-200 | 1.88-2.51 | 190-220 | 2.39-2.76 | 9.2-11.0 | 1.15-1.38 |
| YN11 | 230-250 | 2.30-2.50 | 160-185 | 2.01-2.32 | 225-260 | 2.83-3.27 | 10.0-12.0 | 1.25-1.5 |
| YN12 | 240-250 | 2.40-2.50 | 140-160 | 1.76-2.01 | 200-230 | 2.51-2.89 | 11.4-13.6 | 1.43-1.7 |
