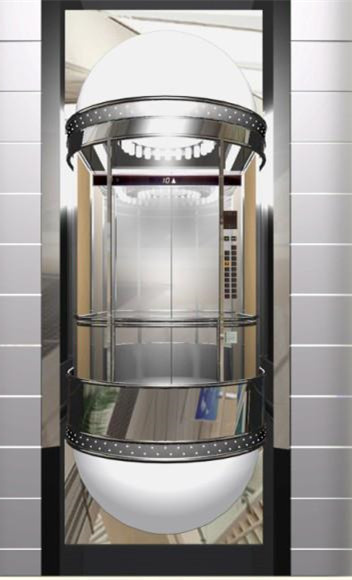

Fjzy Sightseeing Elevator with Good Quality Observation Elevator

Name: Fjzy Sightseeing Elevator with Good Quality Observation Elevator
Brand: china-crystals.com
SKU: 713657262
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 40000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	FJG8000-1
Elevator:	Panoramic Elevator
Type:	with Machine Room
Speed:	1.00 - 2.00m/s
Capacity:	500-1000kg
Persons:	6 - 10
Shape:	Semi-circular
Number Of Sides:	Four
Driving Type:	AC Elevator

Product Description

For sightseeing elevator
1,Permanent magnet synchronous and gearless traction machine
2,LED car lighting system
3,Automatic shut-off of car fan and lighting
4,Energy Feedback system
5,Highly integrated intellectual control system
6,Effective vector frequency converter
7,Long-range monitor
8,light curtain protection
9,car operation panel design accords with the best ergonomics principle
10,Super-thin hall call bottom and exquistie craft
11,Soft and clear liquid crystal display screen
12, Vocie promptwith perfecto acoustic quality
13, various inclination/design
14, With one year guarantee
15. With CE and ISO certificate and EN81 standard

Rated Loading Capacity	Rated Speed	Cab Size Width*Depth	Door Size Width*Height	Shaft Size Width*Depth	Machine Room Size	Min Overhead	Pit Depth
kg	m/s	mm	mm	mm	mm	mm	mm
630	1.0	1400*1100	800*2100	1900*1850	1900*1850	4400Min	1500Min
	1.5					4600Min	1600Min
	1.75					4700Min	1700Min
800	1.0	1400*1350	800*2100	1900*2100	1900*2100	4400Min	1500Min
	1.5					4600Min	1600Min
	1.75					4700Min	1700Min
	2.0					5000Min	2000Min
1000	1.0	1600*1400	900*2100	2100*2150	2100*2150	4400Min	1500Min
	1.5					4600Min	1600Min
	1.75					4700Min	1700Min
	2.0					5000Min	2000Min
	2.5					5000Min	2200Min
	3.0					5500Min	2600Min
	4.0					6500Min	3800Min
1150	1.0	1800*1400	1000*2100	2300*2150	2300*2150	4400Min	1500Min
	1.5					4600Min	1600Min
	1.75					4700Min	1700Min
	2.0					5000Min	2000Min
	2.5					5000Min	2200Min
	3.0					5500Min	2600Min
	4.0					6500Min	3800Min
1250	1.0	1800*1500	1000*2100	2300*2250	2300*2250	4400Min	1500Min
	1.5					4600Min	1600Min
	1.75					4700Min	1700Min
	2.0					5000Min	2000Min
	2.5					5000Min	2200Min
	3.0					5500Min	2600Min
	4.0					6500Min	3800Min
1350	1.0	2000*1500	1100*2100	2500*2250	2500*2250	4400Min	1500Min
	1.5					4600Min	1600Min
	1.75					4700Min	1700Min
	2.0					5000Min	2000Min
	2.5					5000Min	2200Min
	3.0					5500Min	2600Min
	4.0					6500Min	3800Min
1600	1.0	2000*1750	1100*2100	2500*2500	2500*2500	4400Min	1500Min
	1.5					4600Min	1600Min
	1.75					4700Min	1700Min
	2.0					5000Min	2000Min
	2.5					5000Min	2200Min
	3.0					5500Min	2600Min
	4.0					6500Min	3800Min

2.Machine room-less passenger elevator

Rated Loading Capacity	Rated Speed	Cab Size Width*Depth	Door Size Width*Height	Shaft Size Width*Depth	Min Overhead	Pit Depth
kg	m/s	mm	mm	mm	mm	mm
630	1.0	1100*1400	800*1200	2000*1900	4300Min	1700Min
	1.5				4500Min	1700Min
	1.75				4500Min	1700Min
800	1.0	1350*1400	800*1200	2300*2050	4300Min	1700Min
	1.5				4500Min	1700Min
	1.75				4500Min	1700Min
1000	1.0	1400*1600	900*2100	2350*2150	4300Min	1700Min
	1.5				4500Min	1700Min
	1.75				4600Min	1700Min
1150	1.0	1400*1800	1000*2100	2500*2300	4300Min	1700Min
	1.5				4500Min	1700Min
	1.75				4500Min	1800Min
1250	1.0	1500*1800	1000*2100	2600*2300	4400Min	1700Min
	1.5				4500Min	1700Min
	1.75				4500Min	1800Min
1350	1.0	1500*2000	1100*2100	2700*2500	4400Min	1700Min
	1.5				4500Min	1700Min
	1.75				4500Min	1800Min

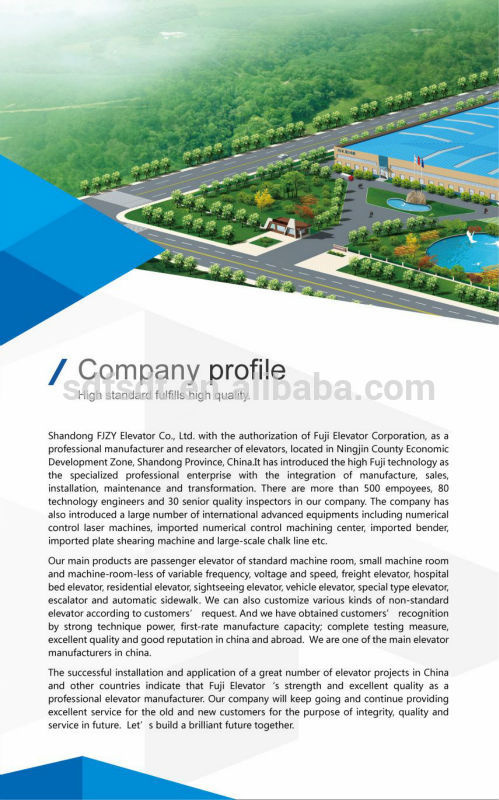

3.Company Profile

Shandong FUJIZY Elevator Co., Ltd. With the authorization of FUJI Elevator Corporation, as a professional manufacturer and researcher of elevators, located in Ningjin County Economic Develepment Zone, Shandong Province, China. It has introduced the high FUJI technology as the specialized professional enterprise with the integration of manufacture, sales, installation, maintenance and transformation. There are more than 500 empoyees, 80 technology engineers and 30 senior quality inspectors in our company. The company has also introduced a large number of international advanced equipments including numerical control laser machines, imported numerical control machining center, imported bender, imported plate shearing machine and large-scale chalk line etc...

Our main products are passenger elevator of standard machine room, small machine room and machine-room-less of variable frequency, voltage and speed, freight elevator, hospital bed elevator, residential elevator, sightseeing elevator, vehicle elevator, special type elevator, escalator and automatic sidewalk. We can also customize various kinds of non-standard elevator according to customers' request. And we have obtained customers' recognition by strong technique power, first-rate manufacture capacity, complete testing measure, excellent quality and good reputation in China and abroad. We are one of the main elevator manufacturers in China.

The successful installation and application of a great number of elevator projects in China and other countries indicate that FUJI Elevator 's strength and excellent quality as a professional elevator manufacture. Our company will keep going and continue providing excellent service for the old and new customers for the purpose of integrity, quality and service in future. Let's build a briliant future together.
