Flatbed Screen Printing Machine for Silicon Wafer (mono & poly) High Precision
1. Application:

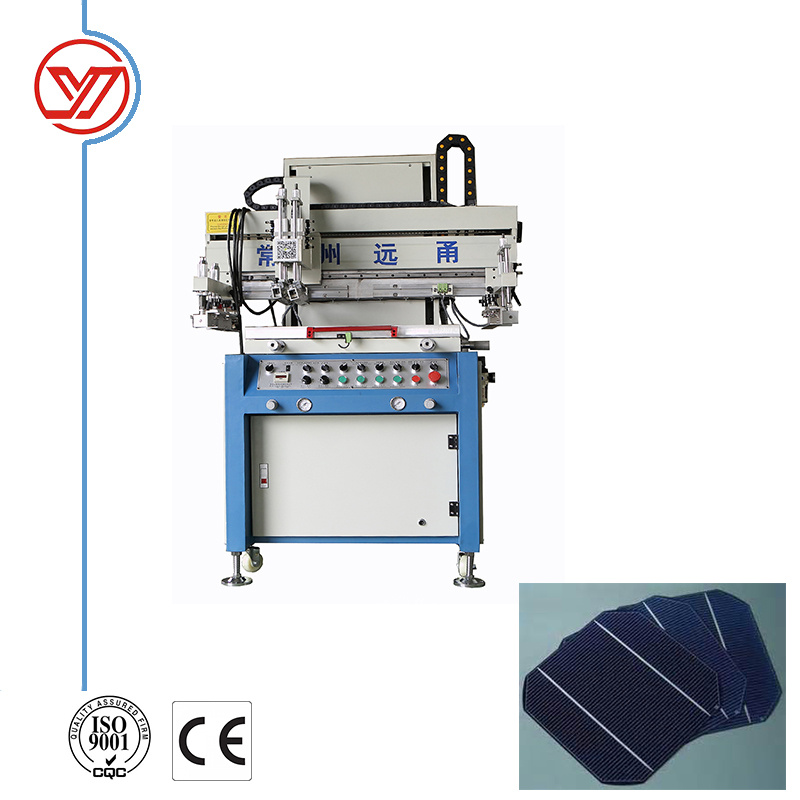

YO 2530 semi-automatic precision screen printing machine is especially conceived for the printing of silicon (Single crystal & Poly crystal) solar wafers for solar cells.
2. Main Feature:

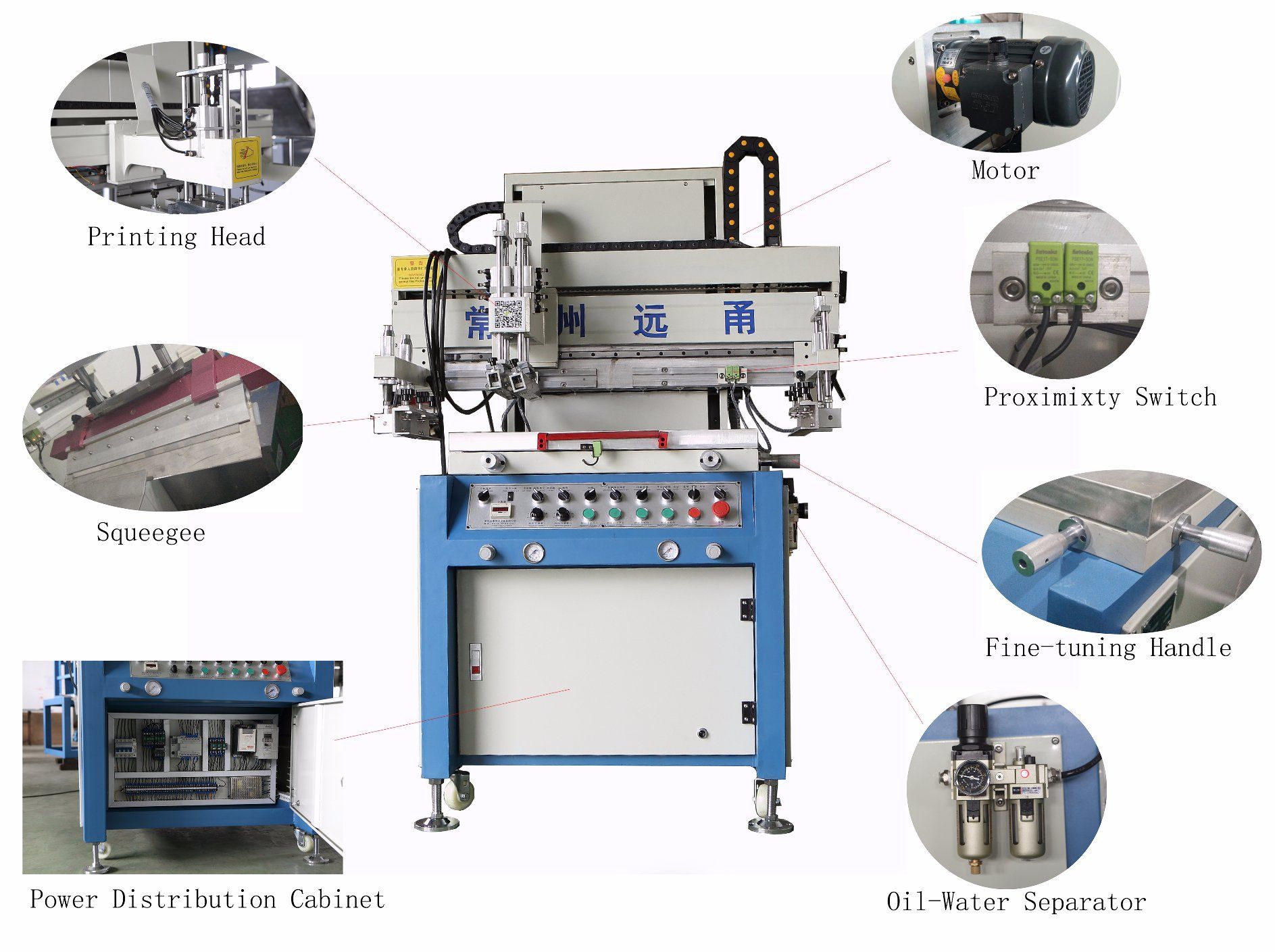

a. Vertical structure: PLC program control circuit.
b. Printing by motor driving/ Smooth and quiet screen lift by linear guides / Digital control for printing stroke and speed.
c. High strength and hardness working table in its entirety, uniform suction holes and strong vacuum adsorption.
d. Multiple safety protection to ensure personal security.
e. Concept of over-hanging arm with automatic digital control
f. Easy adjustment on squeegee inclination angle, depth, horizontal and pressure.
g. Micro-pyramid dowels and vacuum lifting pin for automatic press designed to load and unload wafer easily with lower breakage.
h. HMI electrical control for multi-module, and digital control.
3. Technical Parameter:| Model | YO2530 |
| Size of machine | 800*800*1650mm |
| Size of table | 250*300mm |
| Max printing area | 160*160mm |
| Outer frame dimension | 500*550mm |
| Power | 380V/50HZ |
| Mechanical repetition | ±0.02mm |
| Max printing speed | 1100pcs/h |
| Weight | 250kg |
| Thickness of printing stock | 0~40(mm) |
| Squeegee Angle Adjustment | 0~60° |
| Fine Tuning Distance | Front/Back±10mm
Left/Right ±10mm |
| Printing Pressure | 2~8 kgf/c |
4. Accessories:

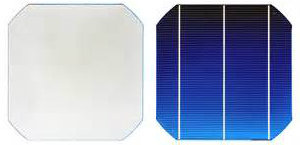

5. Sample Show:
6. Guarantee and Installation:
a. 1 years guarantee after installation and debugging.
b. We can arrange 1-2 engineers to customers company for installation, debugging and training, but all the accommodations have to be paid by buyers
About UsLaunched in 2007, Changzhou Yuanyong Screen printing machinery is located in the scenic industrial city Changzhou, adjacent to Shanghai, in the southern bank of the Yangtze River.
Yuanyong is committed to provide customers with a full range of high-precision, automatic as well as intelligent screen printing solutions, advanced technology and high-quality service, to strive to achieve an international manufacturer, to become a leader of printing industry, and constantly promote the development of it.
After 10 years of technology accumulation and marketing experience, Yuanyong has explored a suitable road for their own development and for their competition advantages in domestic and international market in the field of screen printing machine. We take "quality, technology, service, innovation" as our brand policy, and comprehensively promote independent technology innovation. Moreover, we not only establish a scientific career management system and create a favorable environment to attract and encourage the growth of the best talents, but also have a mastered, skillful and experienced researching and engineering team with advanced printing technology to ensure the stable and continuous development of company.
Every day, Yuanyong people are striving to exceed customer's expectations of products and services because of their innovative values and efforts. Yuanyong grows and develops with your hand in the future.FAQ:
Q: Are you a factory or a trading company?
A: We are not only professional manufacturer for Screen printing machinery and relevant equipment, but also a reliable provider for solutions and developer for new products;
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you and send you our testing video
Q: Can your machine be customized?
A: For sure, you can send us your drawing and then we can produce with your requirements.
Q: How about your payment terms?
A: We accept TT/LC/PAYPAL/Western union
50% deposit after confirmed order and 50% can be paid again copy of BL
Q: How long is the warranty time?
A: 1 Year
| Prod Model: |
YO 2530 |
| Size Of Table: |
250*300 mm |
| Max Printing Area: |
160*160 mm |
| Power: |
380V/50Hz |
| Air Source: |
4-8MPa |
| Printing Precise: |
"+ -"0.02mm |
| Description: |
High Precision Screen Printing Machine |
| Type: |
Vertical Screen Printing Machine |
| Style: |
Screen-process Printing Press |
| Structure: |
Flat-bed cylinder press |
| Color & Page: |
Single-Colour Printing Press |
| Application: |
Single Character,Circuit,Solder Mask,FPC etc |
