Product Specifications
Prod Model: |
HST Polycarbonate sheet |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
Polycarbonate Protection: |
The Board Coated with High-Density Ultraviolet ABS |
Product Packing: |
Both of The Two Sides Are Covered with PE Films. |
Raw Material: |
100% Virgin Bayer Makrolon PC/Sabic Lexan |
Polycarbonate Color: |
Opal Clear Light Green ,Lake Blue Brown |
Polycarbonate Light Transmittance: |
88% |
Polycarbonate Impact Resistance: |
10mm Twin-Wall Panel Can Stand 200j Impact Energy |
Polycarbonate Service Temperature: |
-40 C-120 C |
Polycarbonate Application: |
Greenhouse Skylight Carport Awning Roofing etc |
Polycarbonate Sound Insulation: |
Internal Hollow Structure Can Reduce Noise Greatly |
Polycarbonate Guarantee: |
10 Years |
Material: |
PC |
Color: |
Color: Blue .Green .Opal .Red. White. Clear |
Product Description

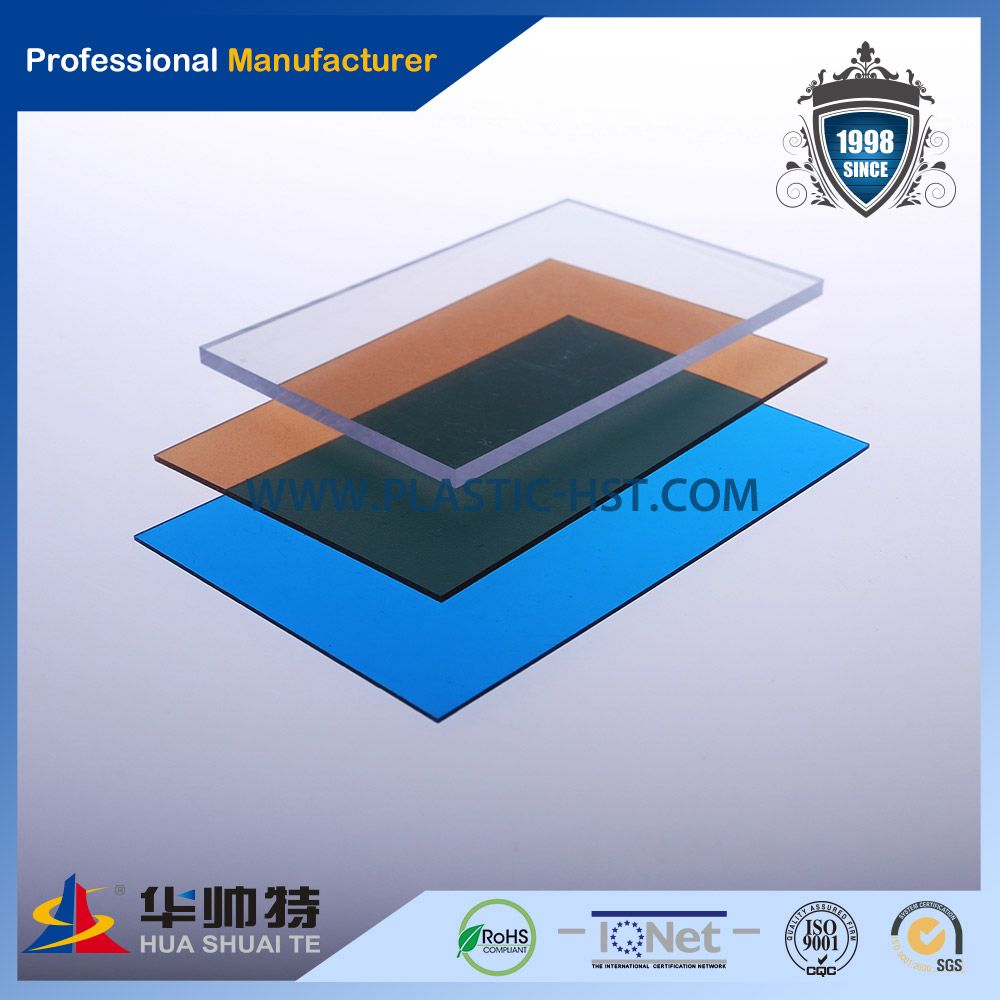

Frosted PC Solid Sheet for Office Wall
Specifications of lexan polycarbonate sheet:Material | Bayer,Lexan(Sabic),Panlite, Mitsubishi |
Width | 1220mm,1560mm,1820mm,2100mm |
Length | No limited |
Thickness | 1.0-20mm |
Color | Clear,green,opal,bronze,blue,orange,red |
Notes | Special color,size can be customized |
Technical Features lexan polycarbonate sheet:1) Impact strength: | 850J/m. About 200-350 times of common glass. |
2) Light weight: | About 1/2 times of glass of the same thickness. |
3) Light transmission: | 80%-92% for different thickness of clear color |
4) Specific gravity: | 1.2 g/cm3 |
5) Coefficient of thermal expansion: | 0.065 mm/m° C |
6) Temperature range: | -40° Cto 120° C |
7) Heat conductivity: | 2.3-3.9 W/m2 º |
8) Tensile strength: | >=60N/mm2 |
9) Flexural strength: | 100N/mm2 |
10) Heat deflection temperature | 140 ° C |
11) Modulus of elasticity: | 2, 400mPa |
12) Tensile street at break: | >=65mPa |
13) Elongation at break: | >100% |
14) Specific heat: | 1.16J/kgk |
15) Soundproof index: | 4mm-27dB,10mm-33dB |
Effect of SoundproofThickness (mm) | Soundproof Index (dB) |
4 | 27 |
5 | 28 |
6 | 29 |
8 | 31 |
10 | 32 |
12 | 34 |
Key Features:· High impact strength.· Virtually unbreakable over a wide temperature range (-20°C to 120°C), able to withstand shattering, cracking, crazing or even breaking.· High light transmission-high degree of light transmission while blocking harmful Ultra Violet rays.· Design freedom - lightweight, highly flexible, easy to fabricate on site. Can be easily cold formed and will not crack or splinter when fabricated.· Good fire characteristics - self extinguished material. The sheet does not contribute to flame spread. When subjected to flames from spreading fire, the material only melts away and form holes which releases smoke, gases and heat. It does not emit toxic gases.· Excellent weather ability-I side UV co-extruded, to give longer lifespan of material.· 10 years limited warranty - against discoloration, loss of light transmission, and loss of strength due to weathering. Applications of lexan polycarbonate sheet:1), Roofing skylight for office building, department store, hotel, stadium, school, hospital. |
2), Soundproof shields on express ways. |
3), LED diffused, Advertising lamp boxes, sign board.Telepohne booths. |
4), Anti-riot shield, bullet resistant material, Bank ATMs. |
5), Agricultural greenhouses, zoos, botanical gardens. |
6), Swimming Pools roofing/cover/sheet |
7), Lighting for corridors, balcony, passages and subway entries, walkways. |
8), Walls, roofs,windows,screens,shower enclosure and other indoor decoration material. |
9), Instrument and machine windscreen |
Why choose us?1. Using Makrolon/Lexan polycarbonate resin.2. Advanced UV-PC co-extrusion lines (4 lines).3. ISO 9001:2008 & CE&SGS aproved.4. Customized colors and dimensions upon request.5. CNC&thermoforming service provided.6. OEM& Distributor welcome. Our services:1.Reply your inquiry within 8 hours.2.Free samples are available.3.Customized desigh is available,OEM is welcomed.4.Special discount and protection of sales area provided to our distributors.5.Experienced staffs answer all your questions in fluent English.
Established in 1998, Haiyan Huashuaite Plastics Electric Appliance Co., Ltd. is a leading Chinese producer of polycarbonate, PC sheet, PVC foam sheet and PVC profiles. All of our products are manufactured in line with ISO9001, ROTHS and SGS requirements and feature numerous advantages over traditional building materials including age resistance, impact resistance and durability.
Our company employs 250 staff members, including 58 technicians, and has always focused on the application of technology to improve product quality and development. Furthermore, we have 7 imported polycarbonate sheet production lines, 30 PVC profile extrusion lines from Germany and Italy. And 1 cast acrylic sheet line from England.
with quality viewed as the life of our enterprise, we utilize our team of quality inspectors and advanced apparatus to maintain the quality of our products throughout our entire production process. Moreover, our products are currently being used in major projects including Daqing Oil Fields and 2008 Beijing Olympic Games fields and gyms.
Haiyan Huashuaite Plastics Electric Appliances Co., Ltd. Continuously strives to enhance our good reputation whilst perfecting our products, management techniques, processes and level of customer service. If you are interested in any of our products, or are searching for a supplier to fill your OEM order, please contact us to discuss your requirements.
