Product Specifications
Prod Model: |
SZG |
Professional Manufacturer: |
Strong Technical Power |
Good Price: |
Experienced After Sale Service |
Package: |
Wooden Case |
Payment: |
Tt L/C |
Delivery Time: |
30days |
Min Order: |
1set |
Structure: |
Rotary Type Drier |
Operation Pressure: |
Vacuum Dryer |
Guarantee Period: |
1year |
Product Description

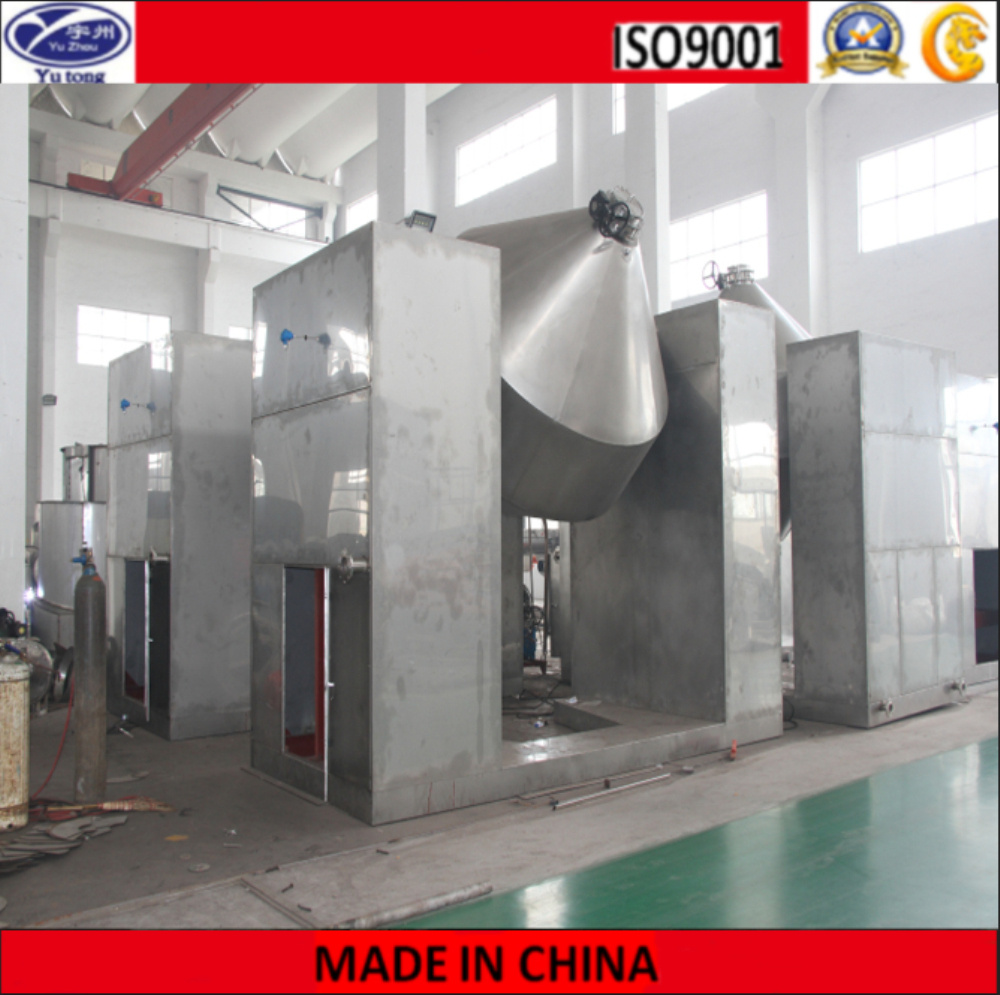

Fruit Juice Powder Double Conical Revolving Vacuum Dryer / Food Vacuum dryer
Description
SZG double cone vacuum dryer is a new type drying equipment which combines similar product technologies at both home and abroad. This rotary vacuum dryer possesses belt and chain two-stage elastic connection modes. With low center of gravity, this drying machine can operate smoothly. Heating medium and vacuum system adopt reliable mechanical seal or rotating joint, so as to avoid defects such as the regular packing seal is easy to leak. On this basis, we modify this double cone vacuum dryer. It not only embodies the humanized design concept but also meets the GMP standards.
Application
SZG double cone rotary vacuum dryer is applicable for drying and mixing powdery and granular materials in the pharmaceutical, food, chemical, dye and other industries. It is especially suitable for the following materials:
1. Thermosensitive materials that cannot withstand high temperature
2. Easily oxidized and dangerous materials
3. Materials whose solvent should be recovered and materials of poisonous gas
4. Materials required low residual volatile content
5. Materials with requirements on crystal shape
Features of SZG Double Cone Vacuum Dryer
1. This rotary vacuum dryer has advanced design, simple internal structure, convenient to clean and easy to handle.
2. The tubes of heating medium and vacuum system are built in the rack in order to prevent artificial damage and difficult clean.
3. The outer wall and rack sealing plate adopt polishing treatment, and the inner container adopts mirror polishing treatment.
4. The materials in the double cone vacuum dryer can be rotated due to the revolution of the machine, which can minimize material water content (≤0.5%).
5. The materials will not stick to the wall of the container. With big drying rate and energy saving, this rotary vacuum dryer can uniformly and sufficiently dry the materials.
6. Condenser and recycling tank are equipped for recovering organic solvent.
7. Our double cone vacuum dryer has three types of heat source, including steam, hot water and conduction oil.
Process Flow Diagram of Rotary Vacuum Dryer
Technical Parameters of SZG Rotary Vacuum Dryer
Model | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
Volume (L) | 100 | 350 | 500 | 750 | 1000 | 15000 | 2000 | 3500 | 4500 | 5000 |
Maximum Loading Volume (L) | 40 | 140 | 200 | 300 | 400 | 600 | 800 | 1400 | 1800 | 2000 |
Maximum Loading Capacity (kg) | 20 | 70 | 100 | 150 | 200 | 300 | 400 | 700 | 900 | 1000 |
Rotating Speed (rpm) | 3~13 | 6 | 5 | 4 | 4 | 4 |
Motor Power (k w) | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
Floor Area (mm) | 2160 × 800 | 2160 × 800 | 2350× 800 | 2560 × 1000 | 2860 × 1300 | 3060 × 1300 | 3260 × 1400 | 3760 × 1800 | 3960 × 2000 | 4400 × 2500 |
Rotation Height (mm) | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4100 | 4200 |
Design Pressure In Container (MPa) | -0.09 to 0.096 |
Interlayer Design Pressure (MPa) | ≤ 0.3 |
Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 | 8600 |
Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 16 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries.
At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.
Since our foundation, we at Yutong have been committed to providing high quality products to our customers. In order to ensure our quality requirements are maintained, we implement the ISO9001:2008 quality management system, purchase our raw materials from reliable suppliers, continue to introduce advanced equipment, and employ highly skilled staff. The quality of our equipment is repeatedly checked during each stage of production. In addition, all machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave our factory. Due to their consistent quality, Yutong drying machines, mixing machines and grinding machines have been awarded many honors, including Recommendation for High-quality Products by IQAC and Recommended Products for International Trade by the U.S. Asia Economic Trade Cooperation Committee.
package:wooden case
payment:TT L/C
delivery time:30days
min order 1set
We look forward to cooperating with partners from all the world to build win-win cooperation relationship in long term. Welcome for your visit and instigation!
Jiangsu yutong drying engineering Co., Ltd. Is a famous enterprises specializing in drying, mixing, granulating, griding and screen equipment. Our company has passed authentication of ISO9001 and ISO14001 international quality system. Moreover, our products have acquired "high quality recommendation certificate" issued by American international quality authentication committee and "East China excellent technical product certificate" issued by Jiangsu science and technology association. Our company emphasizes visualization and create brand, so we have been evaluated as both "AAA' enterprise by Jiangsu international qualification company and "regard contract and keep faith" enterprise by industry and commerce department.
Our company is located in a famous town of south of YANGTSE RIVER, Jiaoxi town, occupying over 18 unit of area with over 6000m2 building area. We have undeniable engineer and more than 100 sets equipments. Every year can produce about 600sets equipments and also can develop more than 30 types which are selling to all the country, also to USA, England, Germany, Cyprus, Turkey, Thailand, Vietnam, Mexcico etc.
Over the years, we do our best to develop the production of drying, shiver, granule equipment. We emphasize science and technology innovation, early or late we cooperate with many famous college. Now every year we can produce 3 new products, and our products have been accepted by more and more customers. Our company has developed so quickly that we have accumulated large amount of fund and technical knowledge. Our company stocks many stocks many kinds of trial machine for customer taking materials to test and examine.
When developing outer market, our company emphasizes inner management. We have established local area network, developed fund flow, material flow, information flow software serving for our company. Furthermore, we figure employees' enterprise spirit of priding themselves on being a "Yutong" people. Our company really insist on such a tenet that science and technology is the first productivity, using honesty to get faith, using quality to get success. We in sprint of keeping good credit standing, we hold a firm belief customer is god, "You don't have and we have, you have and we will do our best to satisfy our customer, and Yutong and customer can get mutual benefit.
