Glass Crystals Machine Portable Hho Flame Edge Polishing Machine
| Price: |
US $ 150-580/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
OH100 |
| AC Voltage Requirement: |
220/110 V |
| Max Gas Output: |
100L/H |
| Dimensions - L*W*H: |
390*250*510mm |
| Gross Weight: |
15 Kg |
| Is Customized: |
Yes |
| Feature: |
Welding Fast, Energy Saving, Non-Pollution |
| Applications: |
Jewelry Welding, Acrylic Flame Polisher |
| Working Medium: |
Soft/Pure Water, Electricity |
| Water Feed: |
Manual |
| Other Usage: |
LED Sign Channel Letter Production |
| Gas Source: |
Oxygen and Hydrogen Gas |
| Certification: |
SGS, FCC |
| Power: |
400W |
Product Description
glass edge polishing crystals machine portable HHO flame edge polishing machine

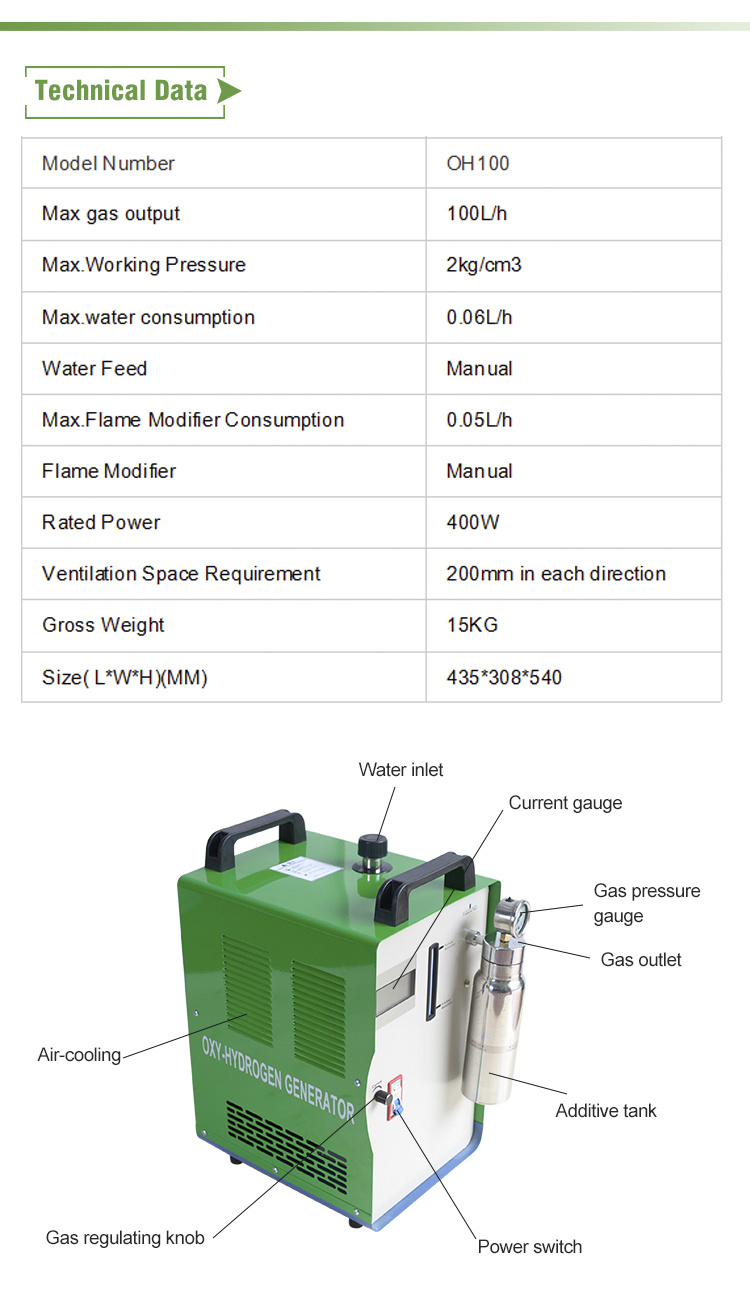

data sheet| Model Number | OH100 | OH200 | OH300 | OH400 | OH600 | OH1000 |
| AC Voltage Requirement (V) | 220/110 | 220/110 | 220/110 | 220/110 | 220/110 | 220/110 |
| Phase | single | single | single | single | single | single |
| Rated Power(KW/h) | 0.4 | 0.8 | 1 | 1.4 | 2 | 2.5 |
| Max Gas Output | 100L/h | 200L/h | 300L/h | 400L/h | 600L/h | 1000L/h |
| Max. Working Pressure (kg/cm 2 ) | 2 | 2 | 2 | 2 | 2 | 2 |
| Max. Water Consumption (L/h) | 0.06 | 0.1 | 0.16 | 0.21 | 0.33 | 0.53 |
| Water Feed | manual | manual | manual | manual | manual | auto |
| Max. Flame Modifier Consumption (L/h) | 0.05 | 0.1 | 0.15 | 0.17 | 0.15 | 0.2 |
| Flame Modifier Feed | manual | manual | manual | manual | manual | manual |
| Dimensions - L*W*H (mm) | 390*250*510 | 450*250*510 | 590*250*510 | 710*250*510 | 930*250*510 | 540*500*670 |
| Gross Weight (kg) | 15 | 20 | 25 | 35 | 45 | 80 |
| Ventilation Space Requirement (mm) | 200 in each direction | 200 in each direction | 200 in each direction | 200 in each direction | 200 in each direction | 200 in each direction |
Product Description
1. What is oxy-hydrogen generator(acrylic flame polishing machine)?
Oxy-hydrogen acrylic flame polisher is able to separate pure water (H2O) into hydrogen and oxygen gases.The oxy-hydrogen flame temperature is up to 2800ºC.When burning,the flame can polish the acrylic sheet rapidly. And the effect as well as the speed is higher and faster than others.
2.Product Features
Safety and convinient
1.Fuel is available immediately after machine is switched on.
2. Multiple safety devices like flash arrestor to prevent from back-fire.
3.Portable and small machines with wheels is convinient for outdoor work.
Eco-friendly
HHO gas is colorless, odorless, no CO, no CO2, no COX and no any other poisonous and
harmful material.There is no carbon emissons when burning.
Polishing fast and smooth
The flame temperature is over 2800°.The concontrated blue flame make polishing work more fast and smooth.
Low Cost & Economy
Water and some electric as fuel.It can work better to replace other similar polishing machine.
3.Application for Welding Industries
Oxyhydrogen flame ideal for:
1)OEM, transformers and power generators;
2)electric motor and power generator repair shop;
3)electric motor work shops;
4)large air conditioning supplies;
5)solar collectors;
6)manufacturing of large statues;
7)manufacturing of trophies, chandeliers, statues and other brass articles etc;
8)gold silver platium jewelry welding and repair;
9)musical instrument welding & repair;
10)others copper welding & soldering
Other Applications:
1)Welding: Copper, , Gold, Silver, Iron, and Tin
2)Heating: Glass and any metal
3)Flame polishing: Acrylic, Plexiglass
4. Features of Okay Energy Oxy-hydrogen Generators compared with other companies:
1) Portable with small size
2) Electrolytic Cell adopts precise mould to formed, prevent from explosion and leakage
3) Built-in flame temperature adjusting device
4) Built-in micro computer control system, be stable to produce the gas
5) Efficient electrolytic power supply based on patented technology to ensure gas production with high efficiency and fast speed.
6) Flashback arrestor with multilayer and multi grade to ensure safety and reliability.
7) Digital Human-Computer Interaction interface, be convenient to operate.
8) Precise flame gun and kinds of precise nozzle sold free with machine to meet different process demand.
5.Machine accessories for free:
Torch and nozzle: 1 set
Soft pipe: 2m
Flame arrester: 1 unit
6.Video demonstrations
How to install our OH machines?
click or copy the link for video play: http://www.okayenergy.com/video/company-video/how-to-use-hho-generator.html
Shipment and Package
About shipping We have long-term cooperated shipping counrier providing one-stop safety and quick shipping service.
Flexible Shipping method by international express(DHL,Fedex,UPS etc),by air,by sea as your requirement.Or using your shipping forwarder.
About Package Standard export package,1set/carton;For industrail larger machine,1set/woodern pallet;
Okay Service
1.24hour online chat,email or phone support for inquiry,technical and after-sales service;
2.Warranty:1year.(The core part of machine for 1year.The other parts of machine for half of year in addition to human damage;
3.online trade assurance service(Protection buyer's payment regarding on-time delivery and product quality.)
Company Introduction
Okay Energy Equipment Co.,Ltd is one of the largest manufacturers in producing oxyhydrogen generator for over 10 years, we have autorized CE,ISO9001,FCC certificates and our own patents.We provide the best service and high quality products to our customers. If you have any questions, pls don't be hesitate to contact us.
Okay Energy Equipment Co.Ltd
Adress:No.27,Wenxuan Road,Yuelu District,Changsha City,China
Tel: 0086-731-83979221
Web: www.okayenergy.com
Okay Energy Equipment Co., Ltd. is located in beautiful Changsha city, Hunan Province, China. Okay Energy Equipment Co., Ltd is a high-tech enterprise which focused on research, production and sales of oxy hydrogen generator, carbon clean machine, three-way catalytic converter carbon cleaning machine, oxyhydrogen welding machine etc. Oxy-hydrogen generator which transforms water into oxygen and hydrogen would lead a new energy revolution in 21st century.
There is a professional technology development team include professional doctor and technical personnel, production staff. Our production capacity is 500 units HHO hydrogen generator per month. All our products are produced with CE, FCC, SGS certification. Okay Energy owned 8 core technologies, 18 design and invention patents, over 30 products series.
We have passes ISO9001 system with independent production workshops including power supply, electrolytic cell production line and machine assemble line. Okay Energy's the 2ND factory plant will be put in production in 2018, and the yearly capacity is expected to 2 million units oxy-hydrogen generators.
Okay Energy 11 years development introduction:
1. Okay Energy founded on Oct 23th, 2006 (2006)
2.10 design & invention Patents of oxyhyrogen generator (2008)
3. The first manufacturer of HHO carbon cleaning machine in China (2009)
4. Wireless engine detection technology(2011)
5. Integrated forming electrolysis cell technology (2012)
6. PLC micro-computer control system (2013)
7. HD TFT screen (2014)
8. Touch screen(2015)
9. The first Chinese manufacturer produce 20000L/H HHO gas. (2015)
10. Mobile service machine for carbon cleaning (2016)
11. WiFi monitoring solution: Touch screen and mobile phone synchronization (2017)
12. Owing 18 design & invention patents, 7 core hho technology, over 30 series products now.
Okay Energy core technology including anti explosion and anti leakage integrated electrolytic tank, dry and wet combination anti back-fire flash arrestor, pre-anti backfire oxyhydrogen torch, PLC control panel technology, IGBT high efficiency power supply, stable pressure device, and okaycloud system. Our machines can be 24 hours continuous working and the main machine can run 5 -10 years.
We are always devoting to improve old products and develop new products, do our best to meet the market demand. Integrity is our promise and quality is goal. Welcome buyers from home and abroad to visit our company and win business together.
