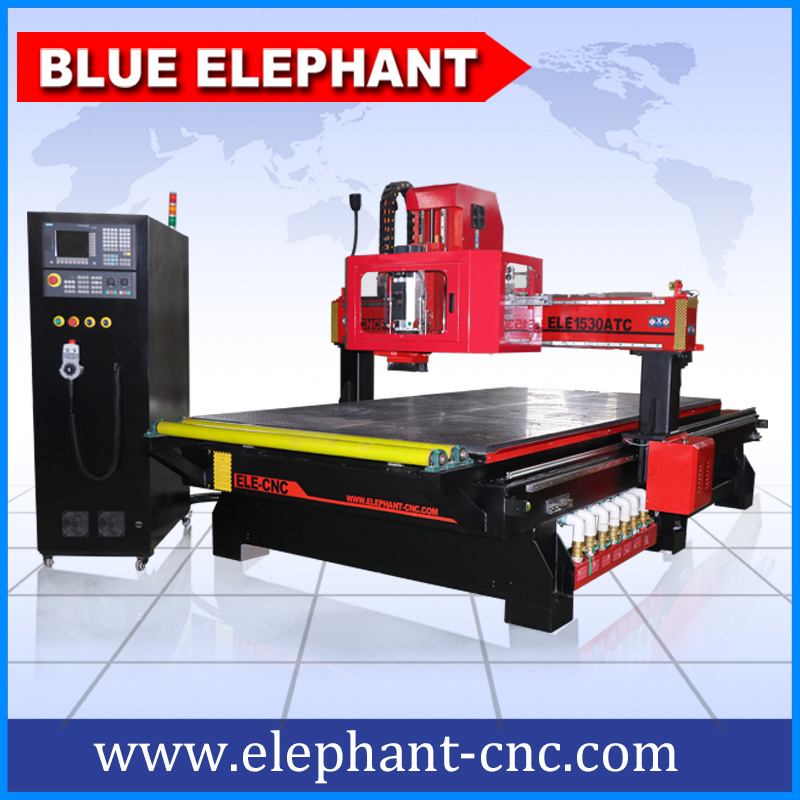

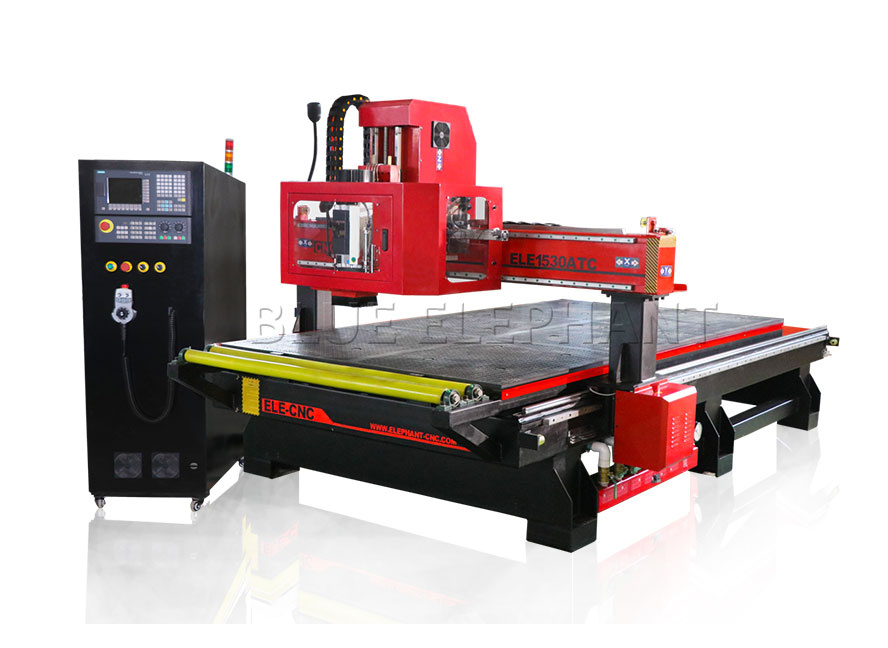

Good Wooden Door Making Machine Ele1530 Wood Furniture Design Machine for Sale
| Price: |
US $ 18860-22000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Good Wooden Door Making Machine ELE1530 Wood Furniture Design Machine for Sale
Advantages of cnc machine for sale:
- An advanced working center, with an 8 slots carousel tool changer, accurate and rapid tool positioning.
- Adopt Germany SIEMENS 808D control system with MPG handle, and SIEMENS servo motor and driver.
- Italian HSD high frequency air-cooling spindle.
Features of cnc machine for sale:
- Effective working area 1500*3000 mm
- 8 carousel tool position
- 9kw Italy HSD ATC air cooling spindle,24000 rpm
- 11kw Taiwan Delta inverter
- Germany Siemens servo motors and drivers
- Germany Siemens control system 808 D
- PMI/HIWIN #25 linear square guide way for X,Y,Z axis
- Taiwan TBI ball screw for Z axis
- Vacuum table with 6 Zone
- Automatic Oil Lubrication System
- 1.5Kw dust collector with two bags,CE certification
- Positioning cylinder, 6pcs
- 220V,3phase,60HZ
- Wood packing

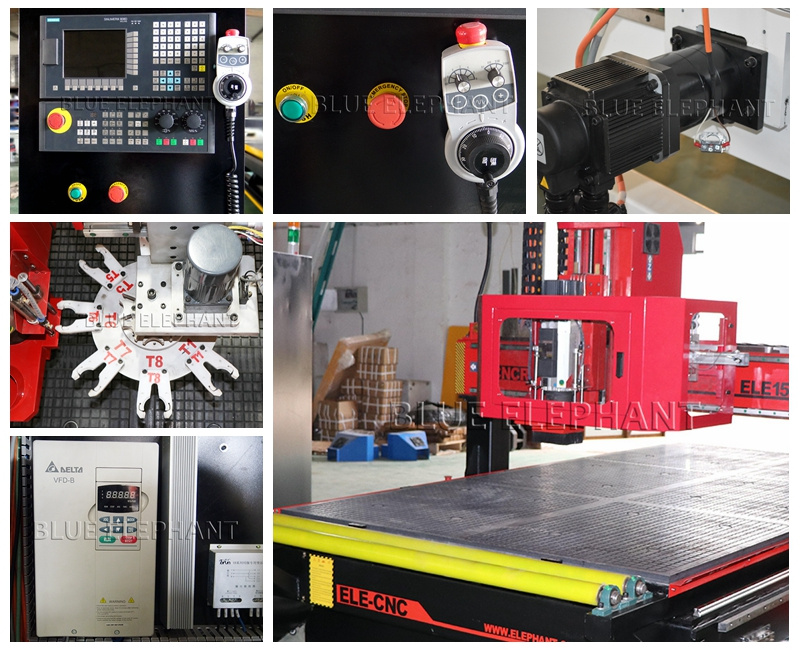

Machinery Parts of cnc machine for sale:
Technical specification of cnc machine for sale:
Model | ELE1530ATC |
X,Y,Z Working Area | 1500*3000*200mm |
Z axis travel | 200mm-700mm (according to your requests) |
Table Surface | Vacuum and T-slot working table with 6 zones |
Frame | Thicken steel Square Tube Heavy structure , 8mm thicken steel gantry with T type |
X, Y Structure | Helical Gear and rack transmission, Taiwan HIWIN Linear Rail 25# |
Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail 25# |
Spindle Power | 9.0kw Italy HSD Air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Germany SIEMENS 808D servo motor and driver |
Working Voltage | 220V, 3Ph, 60Hz |
Operating System | Germany SIEMENS 808D control system |
Lubrication system | Automatic oil lubrication system |
Tool sensor | Automatic tool sensor calibration |
Inverter | 11kw Taiwan Delta inverter |
| Dust collector | 1.5kw new type double pockets dust collector (220V, 3Ph, 60Hz) |
| Cylinder | Positioning cylinder, 6pcs |
| Carousel magazine | 8*Position (Can be customized) |
PS:All the working area and specifications can be customized according to your requests.
Applications:
- Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
- Relief sculpture and 3D engraving.
Samples:

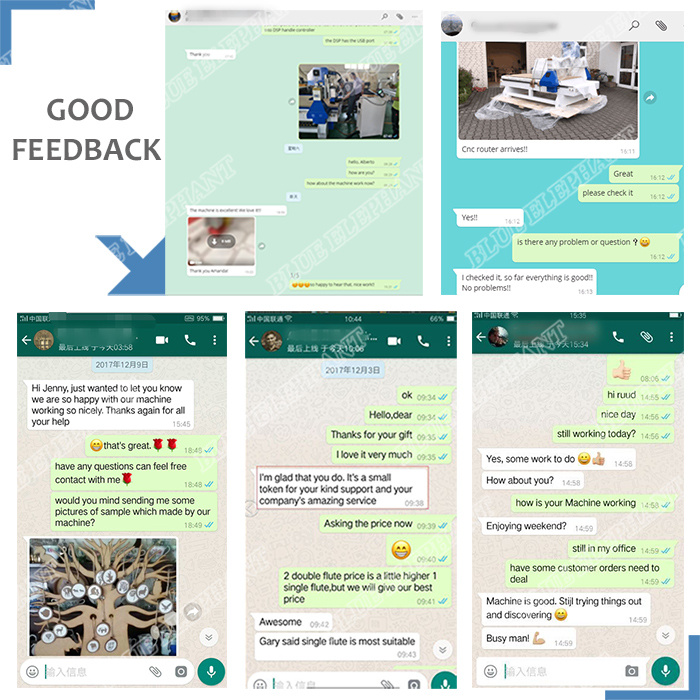

Feedback:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

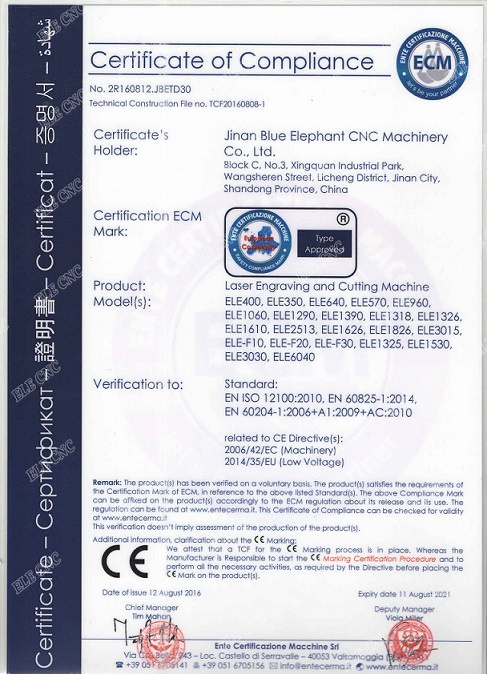

Certificates:

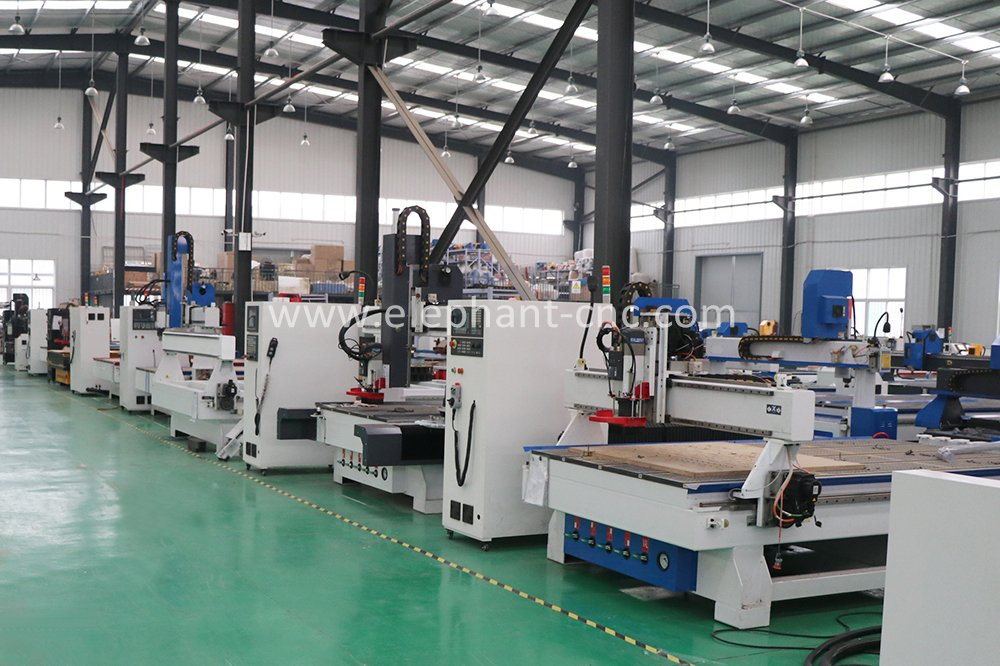

Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: |
ELE1530 |
| Power(W): |
12.5kw |
| Spindle Speed: |
0-24000rpm/Min |
| Inverter: |
11kw Taiwan Delta Inverter |
| Spindle: |
Italy Hsd Air Cooling Spindle |
| Spindle Power: |
9.0kw |
| X Y Transmission: |
Taiwan Hiwin #25 Linear Guide with Helical Rack |
| Z Transmission: |
Taiwan Tbi Ball Screw with Taiwan Hiwin Linear Gui |
| Magazine: |
8*Position |
| Control System: |
Germany Siemens 808d Control Sysem |
| Driver Motor: |
Germany Siemens 808d Servo Motor and Driver |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
