Grinding Wheel Used F16 Brown Fused Alumina
| Price: |
US $ 220-850/Ton |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
grinding wheel used F16 brown fused alumina
Browu fused alumina/carborundum Introduction

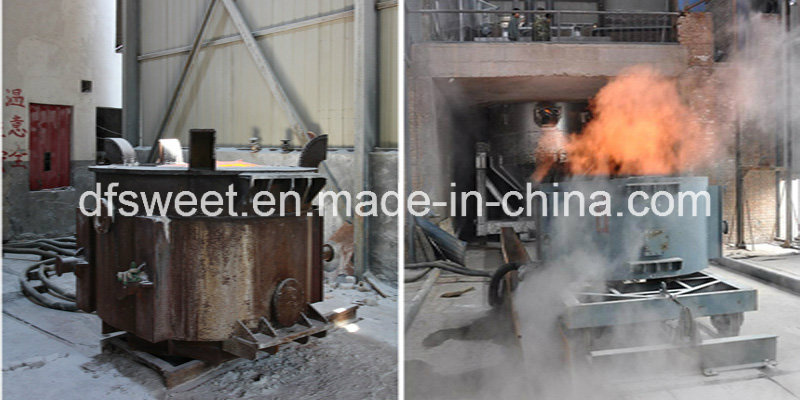

Brown fused alumina is made by high quality bauxite as main material, fusing and purifying in a pouring electricar at a temperature of over 2200c, and made into different grain size through
crystal, choosing, crashing, magnetic, separating, screening, washing and acid washing, etc.
Physical Index of Brown fused alumina/carborundum
| Color | Brown |
| Basic Mineral | α-Al2O3 |
| True Density | 3.90g/cm3 |
| Bulk Density | 1.68-1.95g/cm3 |
| Mohs Hardness | 9.0 |
| Microhardness | HV1800-2200 |
Chemical Composition of Brown fused alumina /carborundum | Al2O3 | 95.88% |
| TiO2 | 2.50% |
| SiO2 | 0.80% |
| Fe2O3 | 0.09% |
Brown fused alumina/carborundum Specifications: Abrasives F 1 # -63 # 4 # -80 # 90 # -150 # 180 # -240 #
Sand 0-1mm ,1-3mm ,3-5mm 5-8mm ,8-12mm 25-0mm 10-0mm 50-0mm 30-0mm
Powder 180 # -0, 200 # -0 320 # -0
F for Bonded Abrasives and sandblasting specification;
P for coated abrasivesspecifications;
W for the powder, 320 # that is the W40Brown fused alumina/carborundum Applications1) Abrasive:
Produce ceramic grind wheel, resinoid grinding wheel, Grinding stone, Grinding block, sand paper, sand cloth, sand belt, polish wax,etc..
2) Refractory material:
Mainly used for abrasion and high temperature resistance,in oxidizable aggregate and filling of shaped and monolithic refractory in steel metallurgy, various industrial stoves, electric furnace
3) Sandblasting abrasive:
Mainly used for various material workpieces to decontaminate, de rusting, prevent corrosion, remove oxide skin etc..
4) Abrasion resistance ground:
Mainly used for non-slip of airport and road, chemical factoryboard paving.
5) Precision casting:
Investment casting technics of stainless steel and aluminum casting in coating. Magnetic Material Content of Brown fused alumina /carborundum | Grain Size | Magnetic Material Content (%) LESS THAN |
| A | A-P1 | A-B | A-P2 | A-S |
| F4-F8 | 0.0520 | - | 0.0800 | - | - |
| F10 | 0.0500 | - | 0.0780 | - | - |
| F12, P12 | 0.0480 | 0.0480 | 0.0760 | 0.0810 | - |
| F14 | 0.0460 | - | 0.0740 | - | 0.0860 |
| F16, P16 | 0.0440 | 0.0440 | 0.0720 | 0.0770 | 0.0830 |
| F20, | 0.0420 | - | 0.0700 | - | - |
| F22, P20 | 0.0400 | 0.0400 | 0.0680 | 0.0730 | 0.0800 |
| F24, P24 | 0.0380 | 0.0380 | 0.0660 | 0.0710 | 0.0770 |
| F30, P30 | 0.0360 | 0.0360 | 0.0640 | 0.0690 | 0.0740 |
| F36, P36 | 0.0340 | 0.0340 | 0.0620 | 0.0670 | - |
| F40 | 0.0320 | - | 0.0600 | - | 0.0710 |
| F46, P40 | 0.0300 | 0.0300 | 0.0580 | 0.0630 | 0.0680 |
| F54, P50 | 0.0280 | 0.0280 | 0.0560 | 0.0610 | 0.0650 |
| F60, P60 | 0.0260 | 0.0260 | 0.0540 | 0.0590 | 0.0620 |
| F70 | 0.0250 | - | 0.0520 | - | 0.0590 |
| F80, P80 | 0.0240 | 0.0240 | 0.0500 | 0.0550 | 0.0560 |
| F90. P100 | 0.0230 | 0.0230 | 0.0480 | 0.0530 | 0.0540 |
| F100 | 0.0220 | - | 0.0460 | - | 0.0530 |
| F120, P120 | 0.0210 | 0.0210 | 0.0450 | 0.0500 | 0.0520 |
| F150, P150 | 0.0180 | 0.0180 | 0.0440 | 0.0490 | 0.0520 |
| F180, P180 | 0.0180 | 0.0180 | 0.0440 | 0.0490 | 0.0520 |
| F220, P220 | 0.0180 | 0.0180 | 0.0440 | 0.0490 | 0.0520 |
3. Applications: 1.For Free grinding, such as glass industry.
2.For Friction products and abrasion resistance ground
3.For Resin or ceramic bonded abrasive,such as grinding wheels,cutting off wheels.
4.For Refractory Raw material, Wear-resistant and fire-proof products.
5.For Grinding and polishing ,such as gringing stone, Grinding block, flap disc.
6.For Coated abrasives,such as abrasive paper,abrasive cloth,abrasive belt.

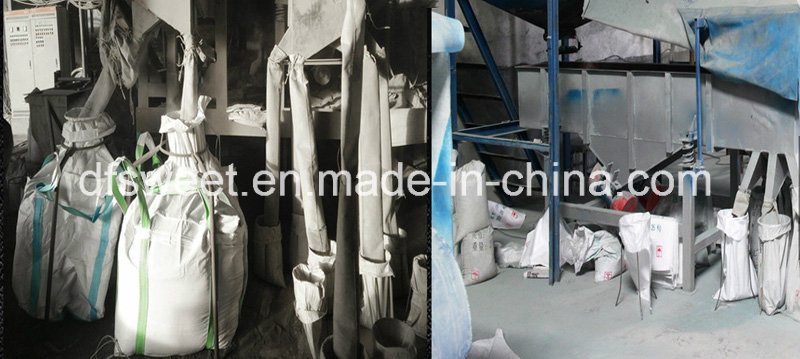

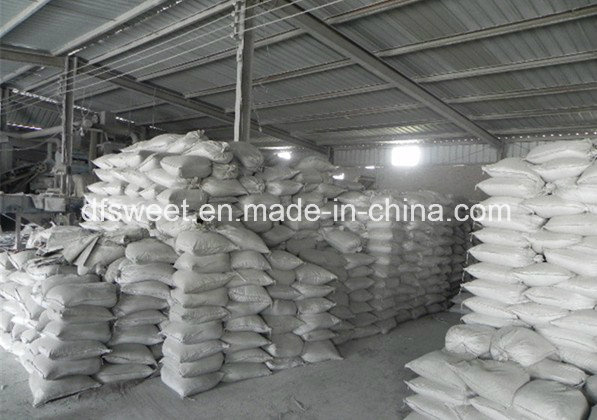

7.For Producing mold of precision casting and Grinding, lapping and polishing media.Packaging & Shipping1. 1 ton bags in container, 25 MT/20'FCL.
2. 25kg bags in container, 25 MT/20'FCL
3. 25kg bags in ton bags, then in container, 25 MT/20'FCL
4. as the customer' request.
Our Services1.Our strong team provide you reliable service that make you feel purchasing is more easier
2. We ensure that we can supply capability with competitive price.
3. Work strictly to guarantee product quality,
4. Highest standard of integrity. Guarantee customer's benefit.
5. Supplying Pet Coke, Met coke, Foundry Coke, Carbon Raiser etc
| Prod Model: |
SW42 |
| Hardness Moh: |
9.0mohs |
| Density: |
3.85g/cm3 |
| Fine Powdeer: |
180#-0 200#-0 320#-0 |
| Period Of Sand: |
0-1mm 1-3mm 3-5mm 5-8mm |
| P Grade: |
8#-80# 100#-150# 180#-220 |
| F Grade: |
16#-80# 90#-150# 180#-240# |
Dengfeng Sweet Abrasives Factory supplies all kinds of abrasives and refractory materials with high quality. Our Headquarters 'East Asia Grinding Group' is located in Shandong Province covers an area of about 40, 000 square meters, has more than 100 employees, is a collection of scientific research, development, production and sales as one of the new grinding materials company. Annual output 35, 000 tons of abrasive materials, 40, 000 tons of refractories, , 30, 000 tons of Steel balls & aluminum balls.
Our company has strong technical force, advanced production and testing equipment, there are four large grinding materials production line, with a larger production scale and capacity, it sets abrasive materials, metal materials, three large production lines, electric stove, plastic, sieve And other new equipment is equal to one, while the company has advanced production technology and technology, experienced senior engineer, well-trained workforce, for the stability of the product quality and laid a solid foundation.
At present, I produced the products in domestic and foreign markets with strong competitiveness, the products are widely used in polishing, sandblasting, refractories, abrasive products and other industries. The company and many domestic and foreign customers, suppliers and peers to establish a comprehensive strategic cooperative relations, sales network covering major cities in the country, while exports reached more than 60 percent, exported to Europe, Southeast Asia, the Middle East, South America, more than 30 countries and Area, by the majority of users of the trust and praise. We welcome new and old customers from all walks of life to contact us and we look forward to establish a long term cooperation with you and enjoy a win-win future!
