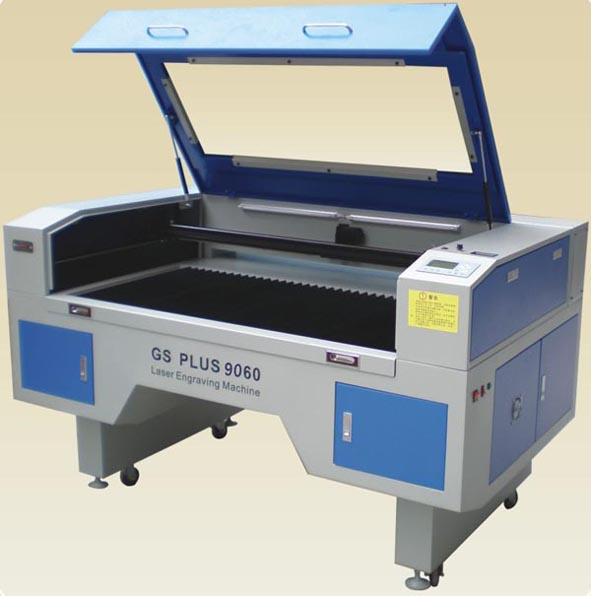

GS9060 80W Professional CO2 Laser Cutting and Engraving Machine
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Package- Outside; standard export plywood cases
- Innerside package:Damp proof polyethylene sleets
Shipping: 10-15 daysLaser power: 60W, 80W, 100W, 120W, 150W,180WWorking area: 600*400mm; 900*600; 1200*800mm; 1400*900mm; 1600*1200; 1300*2500mm; 1500*2500mm. Technical Parameters | Model | GS6040 | 1280 | 1525 |
| Working area | 600*400mm | 1200*800mm | 1500*2500mm |
| Machine color | As the customers need |
| Laser tube power | 60W/80W/100W/130W/150W/180W |
| Laser tube life | 10000 hours life,5 moths warranty for ordinary tube |
| Engraving speed | 0 - 64000mm/min |
| Cutting speed | 0-36000mm/min |
| Resolution ratio | 0.025mm |
| Resetting positioning accuracy | 0.01mm |
| Laser tuber cooling | Water cooling |
| Laser type | Sealed CO2 glass laser tube |
| Max power | About 1kw |
| Machine control system | |
| Working platform | Honey comb table or knives table |
| Power supply | AC 110 - 220V , 50 - 60Hz |
| Min. shaping character | Chinese 2.0mm*2.0mm / English 1.0mm*1.0mm |
| Supported graphic | BMP,CDR, PLT, DST, DXP, AI,JPG, DWG, TIFF, PSD |
| Driving system | Stepper motor |
| Software supported | CorelDraw, AutoCAD , Artcut,Photo shop |
| Software | |
| Running environment | Temperature:0ºC~45ºC; humidity:5%~95% |
| Support | 24 hours service support by calling,video or email |
Feature description1. 64 DSP high speed processor: adopts 64 DSP high speed control system, which highly improve the data processing speed and stability.- Support of USB and U disc: USB contact to the machine or U disc independently, which can use only one computer to control many laser machines.
- Storage function; large storage function, which can store hundreds of files for online or offline operation.
- Real time regulation: users can regulate the laser power according to needs to improve the engraving effect.
- Easy operation: control panel and software system have both English and Chinese language so that satisfies the needs of different customers.
- Rotary clamp for engraving cylinders (optional); can engrave not only sheets, but also roll materials and cylinders such as pencil vase, flute, bottle and so on.
Applicable materialsABS double color sheet, acrylic sheet, wood, glass, paper, leather, cloth, plastic, rubber, marble, ceramic tiles and other nonmetal materials stainless sheet carbon steel, 45 steel. Application:1. Advertising industry: character cutting a large plastic, two-color plate engraving cutting,standard plate engraving, crystal trophy engraving, sculpture and other licensing authority.2. Craft gift industry: wood, bamboo, ivory, bone, leather, marble, shells and other materials carved images and text.3. Packaging and printing industry: engraving print from rubber, plastic plates, two plates, knives cutting boards cutting.4. Leather garment processing industry: leather, synthetic leather, artificial leather, cloth,fur on complex text graphic engraving, cutting, carving,hollowing and other craft processing, garment, underwear, furnishings.5. Model industry: Construction sand table model of making model ships and aircraft ABS board cutting, cutting, multi-layer sheet.6. Product identification industry: equipment nameplates, security products such as playing table.7. Others: marble, granite and other decorative building materials carved on the market, paper cutting, cutting and other greeting cards and other paper craft.
