FEATURE Full digital imaging technology
Crystal-clear Image
Computer platforms, Abundant functions
Powerful image and report management
3D Image Function(optional)
DICOM display and transfer
250G large Storage volume
Broadband Multi-frequency probes
Compatible with USB laser/inkjet printers
Pretty and new appearance
15 inch touch screen color LCD monitor
Silica gel backlight waterproof keyboard
8 segment TGC, 16 step zoom
Complete application software packages
Can work with external battery(option)
2 probe connector
Can be fold, the transportation is convenient and lower freight
Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Standard Configuration •Host 1 unit
•Convex probe 1 pcs
•Ultrasound keyboard 1 pcs
•Computer keyboard 1 pcs
•Computer mouse 1 pcs
SPECIFICATION D-Maximum Scanning Depth: max.250mm
Multi-frequency: 5 segment frequencies
Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Image gray scale: 256 level gray scale
Cine Loop: max.1024 frames
Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
Real-time Zoom on B mode
Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
Gain: gain: adjustable between 0-100dB; Time gain control (TGC): 8 segment adjustment, B, M adjustment separately.
Monitor: 15 inch touch screen color LCD monitor
Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
Measurement and calculation(human): ^B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram; ^M mode: heart rate, time, distance, slope and stenosis; ^Gynecology measurement: Uterus, cervix, endometrium, L/R ovary; ^Obstetric: gestation age, fetal weight, AFI; ^Cardiology: LV, LV function, LVPW, RVAWT; ^Urology: transition zone volume, bladder volume, RUV, prostate, kidney; ^Small parts: optic, thyroid, jaw and face.
Measurement and calculation(veterinary): ^Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD;
^Sheep: BPD, CRL, TD
Image store: by 250G hardisk or USB disk
Print: by USB laser/inkjet printers
DICOM3.0, medical digital imaging and communication

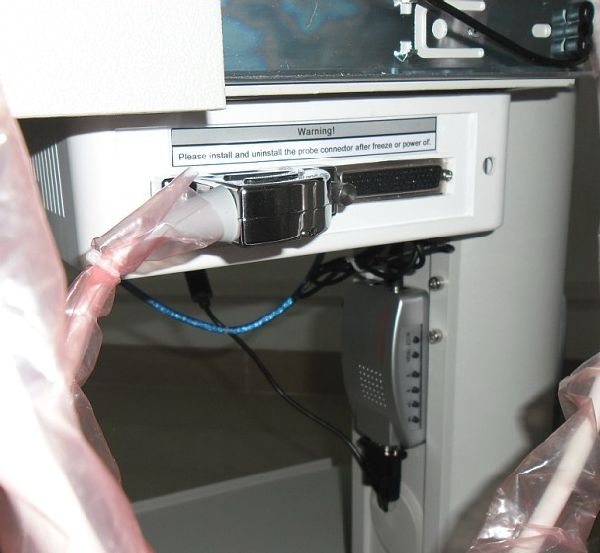

Probe Connector: 2
Weight: Around 28kg
