High Laser Power CNC Laser Cutting Machine for Metal Nonmetal

Name: High Laser Power CNC Laser Cutting Machine for Metal Nonmetal
Brand: china-crystals.com
SKU: 731980242
Availability: InStock
Rating: 4.5 (140 reviews)

Price:	US $ 6000-14000/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

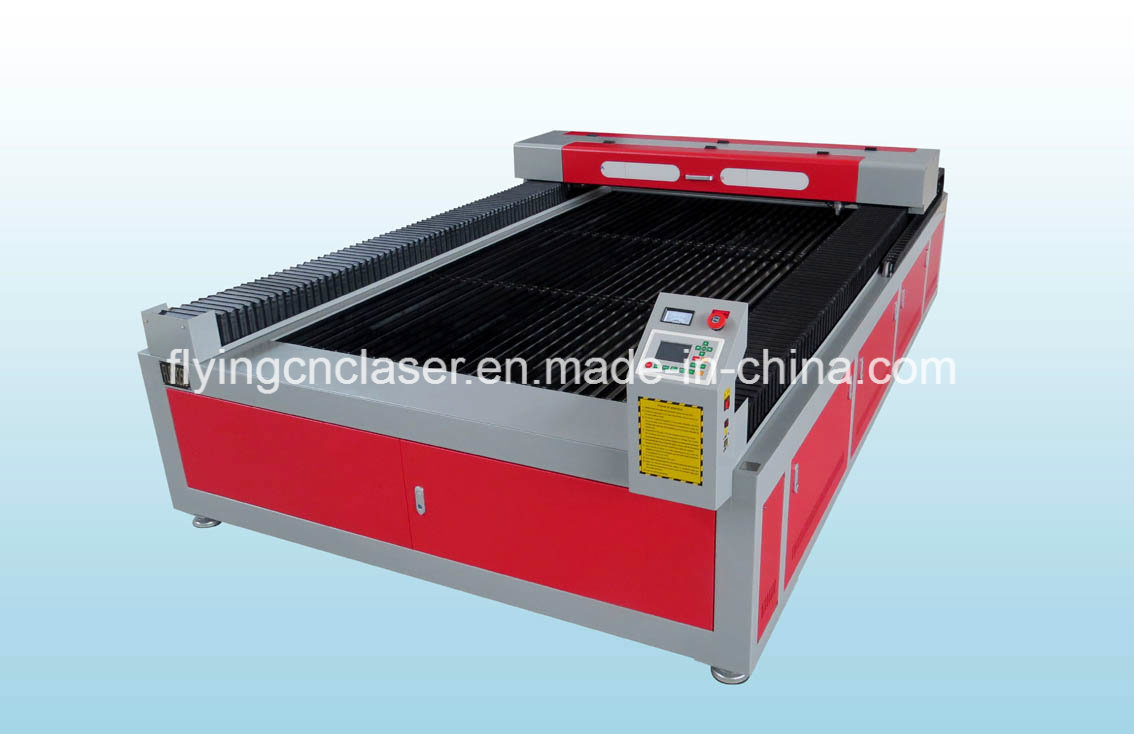

High laser power CNC laser cutting machine for metal nonmetal

Model: FLC1325

Features:

This machine is the latest design with the 100W-300W CO2 laser tube, can cut metal materials,such as stainless steel,carbon steel, also used for cutting non-metal materials, such as acrylic,wood,leather,etc. It is equipped with special laser head system with auto focus, if the metal sheet is not flat, the system can sense the distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.

Application materials:
Stainless steel, carbon steel, Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, Plexiglas, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.

Application industries:
Mainly used for advertising industries ( stainless metal and carbon steel ), sheet metal industry (carbon steel ), packaging industry (die board )and so on . steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries

Specifications:

Model	FLC1325B, FLC1325A
Working size	1300*2500mm
Laser type	Sealed CO2 laser tube
Laser power	RECI 130W (Peak Power 150w)
	RECI 150W (Peak Power 180w)
	Yongli 260w (Peak Power 290w)
Work platform	Stainless sheet and knife table
Transmission	Chinese best FULONG belt or Germany ball-screw for system
Driving system	Chinese stepper motor or Japan Yaskawa Servo motor for option
Cooling mode	Water cooling
Auxiliary equipment	Exhaust-fan with pipe, Air pump,Industrial Chiller CW5000 or CW6000
Highest scanning position	4000DPI
Compatible software	Coreldraw AutoCAD Photoshop
Working voltage	AC110-220V ±10%/10A,50-60HZ

Accessories

(01) User manual of machine(English version)
(02) User manual of software(English)
(03) USB cable
(04) Communication cable
(05) Air exhaust fans
(06) Air pump
(07) 3 reflecting mirrors (has been installed in the machine)
(08) One focus lens(has been installed in the machine )
(09) One laser tube(has been installed in the machine)
(10) Water chiller CW5000/CW6000

Items	Materials	Cut	Engrave
	Stainless Steel	√
Metal	Carbon Steel	√
	Mild Steel	√
	Acrylic	√	√
	Wood	√	√
Non metal	MDF	√	√
	Plywood	√	√
	Die board	√	√
	PVC board	√	√
	Double color board	√	√
	Rubber	√	√

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, foam, MDF, rubber, plastic, garments, paper, leather, marble, granite, tiles, carbon steel, stainless steel and etc...

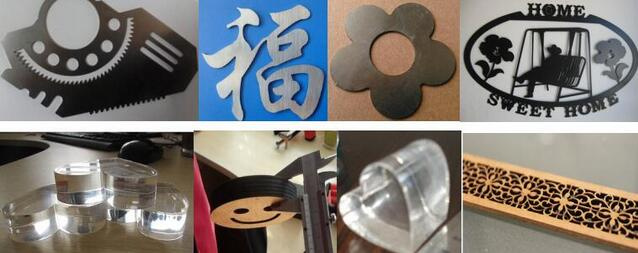

Samples Display:

Prod Model:	FLC1325
Working Area:	1300*2500mm
Laser Power:	130W-260W
Delivery Time:	in 10 Days
Warranty:	2 Years

Flying Technology Development Limited. Was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, CNC Router, CNC plasma cutting machine, Acryling Bending machine, Cutting Plotter, and so on.

Our company is the modern enterprise in combination with resarching, producing and selling, have excellent engineers, technical experts, etc. Each product has its enterprise standard. All of them have the strict quality testing departnment detection, complete with product standards. The product passed the European Union CE authentication and American FDA certificate, the products are sold in eighty countries. Most of the m- aterials which the product use for imported steel and electrical devices, true material anticipates, worth of the money. The employee of our company is very rigorous, serious and responsible. The product from design to production, every link excellence, plus factory's strict inspection so that making the product has excellent quality and minimum malfunction probalility.

Our company is famous for high quality and better after-sale service as the competitive price. Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.

We are searching the distributors around the world. Hope we can cooperate for the world market.
