Laser Marking Machine >>>Machine's main introduction
High quality fiber laser source ensures a long lifetime. IPG/SPI laser source boasts 100000 hours.Take 12 operating hours per day for example, nearly 22 years. Raycus/Max/JPT laser source boasts 50000 hours.
Take 12 operating hours per day for example, nearly 11 years; excellent beam quality; high precision and smooth cutting edge
>>>Series charactrristic:
1. With humanization design, and practical use testing.
2. Use famous well-know brand: Schneider.
3. The driving system uses rail guide and ball screw made by Taiwan Hiwin, the smoothly moving track increases the speed and accuracy.
>>> Features:
1 Good quality laser beam,USB control,,optical broad beam focusing System and high speed galvo scanner,stableperformance,long life expentancy,free of maintanenc
2 Widely used in the field of IC electronics,medical,good,crafts,leather and plastic products,etc
3It can be usely separately or linked with other machine in the work flow line
4The marking affect and speed fit very well with the bulk production which need high work speed,good quality
5The vector marking software support Autocad photoshop,etc. Powerful system is easy to operate
6 Permanent logo/number is as well beautiful for eye sight
7 Air cooling system,save power consumption
8 The laser repeat frequency is high and no deformation
>>> Technical Index
| Laser Power | 10W |
| Laser Wavelength | 1064nm |
| Laser beam quality | M2:1.5 |
| Repeat Frequency | 20KHz-80KHz |
| Repeat Positioning Accuracy | 0.005mm |
| Min linear width | 0.01mm |
| Marking Depth | 0.01-0.5mm |
| Marking Speed | 7000mm/s |
| Standard Marking Area | 110×110mm |
| Optional Marking Area | 70×70mm/175×175mm |
| Rated Power Consumption | <500W |
| Operating Voltage | 220V/50Hz/15A |
| Cooling | Air Cooling |

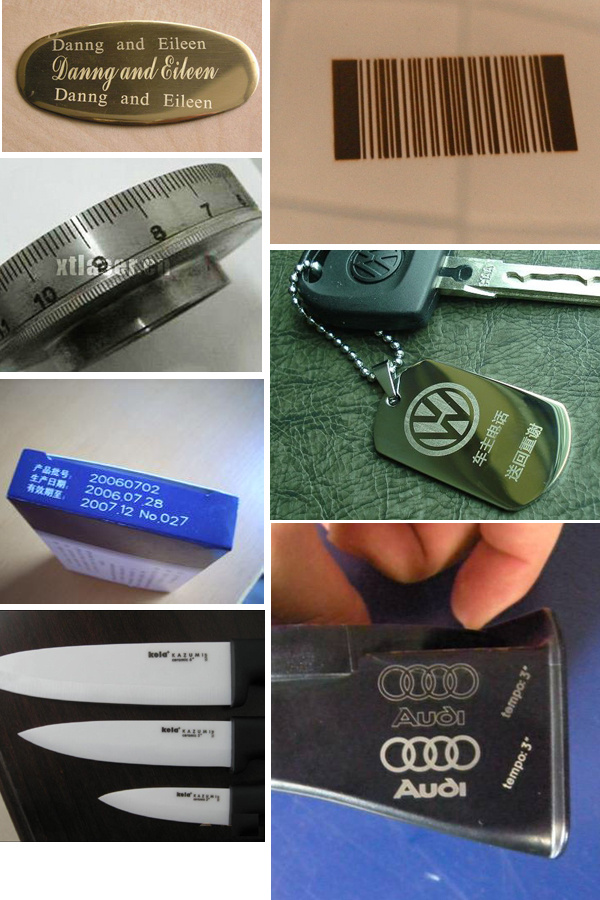

>>> Samples:
>>> After-sales service:
1.One year guarantee period for product quality.(man made damaged is negotiable).
2.Lifelong maintenance and spare parts supply.
3.Free design of fixtures as customers required.
4.Free training for machines installation and operation of the staffs.
5.Free samples marking of customer provided.
Warmly welcome you visit our factory!!!
Warmly welcome you contact us directly for more information!!!
FAQ:
Q1.What's the guarantee for the product quality?
A:We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.
Q3. What i need to do when the machine suffer trouble?
A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q5 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q6: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q7:Is it better to increase blow system to improve laser processing performance?
A: It works for some kind materials,it can stop firing
Q8: How long time does it take for a learning of the laser machine operation ?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.
Q9: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.
Q10: Does it need to be connected by a laptop or computer ?
A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
