Product Specifications
| Prod Model: |
SUNY-1280 |
| Packing Dimension: |
1850*1330*1150mm |
| Net Weight: |
280kg |
| Gross Weight: |
350kg |
| Working Area: |
1200*800mm |
| Laser Type: |
Sealed CO2 Glass Laser Tube |

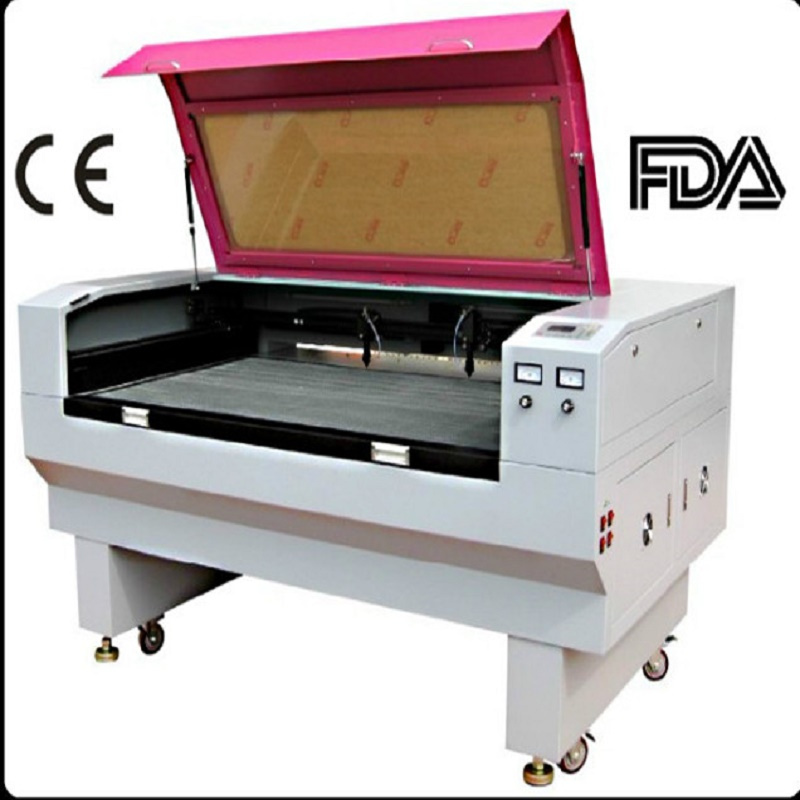

Product Description
Laser Cutting Machine Functions;1. Cut optimal cutting path, the shortest path can work, save time, improve efficiency
2. Chines,English, German big-screen LCD display, users can randomly access to stored documents, human convenient
3. System transfer graphics data, a simple layout editor (such as zooming and rotating, reproduction, etc.
4. Output data can be layered on each floor can separate definition output, the output speed, laser approach (sculpture, cutting), and the definition of parameters for each automatic preservation.
5. The images can be carved, right vector for line drawing, cutting and engraving, sculpture and accuracy can be erected.
6. USB data transmission, but also U-operation, can work off-line, easy to operate, fast.
Specifications:Control system: | DSP control system |
Work platform: | Honeycomb platform |
Laser power: | 60w/80w/100w/130w/150w |
Pass-thru doors: | Allow to cut extremely long materials(max thickness 40mm) |
Interface: | USB connection ( Work in Windows XP, 2000,Vista,7) |
Memory: | 64Mb Buffer Memory |
Driver system: | stepper motor |
Auxiliary equipments: | Exhaust-fan, air-exhaust pipe |
Laser Tube life hours: | 6000hours |
Repeating precision: | ±0.05mm |
Moving system: | CNC controlling units |
Cooling mode: | Water-cooling and protection system |
Max speed: | 600mm/s for engraving, 300mm/s for cutting |
Working voltage: | AC110/220±10% 50/60Hz |
Whole power: | <1250W |
Operating temperature: | 0-45°C(32° - 113° F) |
Operating humidity: | 5%-95% |
Controlling software: | Original sunylaser software |
Graphic format supported: | BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG,TIF,TGA,PCX,JP2, JPC,PGX,RAS,PNM,SKA,RAW etc |
Compatible software: | Auto CAD, CoreIDraw X2/X3/X4, Photoshop etc |
Resolution: | 4000DPI |
Workable Materials: Wood, Paper, Leather, Cloths, Organic glass, Plexiglass Resin, Acrylic, Woolens, Plastic, Rubber. Ceramic tile, Crystal,Bowler, Bamboo, Marble, Granite, Tile, Delrin, Doublecolor board, Glass, Painted metals, Anodized aluminum, EVA, etc.
After Sale Services: If you meet any problem or have any question about the machine and software, please feel free to contact us, we will help you to solve
the problems as soon as possible.
Sample:
Packing And Manufacture:
Company:
Dongguan City SunyLaser Technology Ltd. Is a professional R & D, production, marketing light aircraft, -- the integration of high-tech equipment modernization joint ventures. An international manufacturing company is located in the city -- DongGuan City, Guangdong Province, relying on the PRD advanced light machinery, electronic products manufacturing and personnel superiority, committed to the transformation of high-tech achievements and laser industry development.
Company in Tianjin, Hebei, Jiangsu, Zhejiang, Shanghai, Xiamen and other cities with branches respectively. And in Russia, Vietnam, Cambodia, Bangladesh, Singapore and Europe to set up agency. Sunylaser since its inception has been adhering to the "excellence, honesty and trustworthiness, excellent progress, collaborative innovation, " the spirit of enterprise Through the tireless efforts of all personnel, sunylaser now owns several thousand square meter production base and built modern independent research and development centers and laboratories. Southeast Asia has become a major laser equipment manufacturing enterprises, and companies with RKB Germany, the United States cutting-edge, Japan Haight many companies and institutions of the country to establish a long-term, stable relations of cooperation. The company is the leading products of laser cutting machines, laser engraving machines, laser engraving machines, and laser cutting machine, Laser Marking Machine series laser processing equipment, which are widely used in clothing, leather, advertising, technology gifts, plexiglass, electronics, electrical appliances, Instrumentation, hardware, auto parts, clothing, wood, furniture manufacturer, model making, plastics, tobacco, packaging printing and many other fields.
National Product times further, and take advantage of modern science around the world, sunylasers to revitalize national industry responsibility, and is willing to join hands to people from all walks of life, To create a world-class national enterprises laser unremitting efforts!
