Product Specifications
| Prod Model: |
HZ-AD200 |
| Command System: |
1.German Sew 2.China Sej / Snma |
| Safety Device: |
Radar Sensor, Magnetic Loop , Remote Control, |
| Perspective Window: |
1.2mm PVC Transparent |
| Standard Motor Position: |
Left or Right |
| Quantity Warranty: |
12 Months |
| Door Curtain Thickness: |
0.8/1.0/1.2/1.5mm |
| Opening Frequency: |
1000-1500times/Day |
| Control System: |
1.Japan Mitsubishi 2.China Holip |
| Motor Power: |
0.75kw-2.2K/50-60Hz |
| Drive System: |
1.German Sew 2.China Sej / Snm |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Certification: |
SGS |
| Position: |
Interior |
| Surface Finishing: |
Finished |
| Material: |
Stainless Steel+PVC Fibar |
| Opening Type: |
Radar |
| Special Function: |
Self Control |
| Color: |
Red/Blue/Yellow/Green/Gray/Orange/Transparent |
Product Description

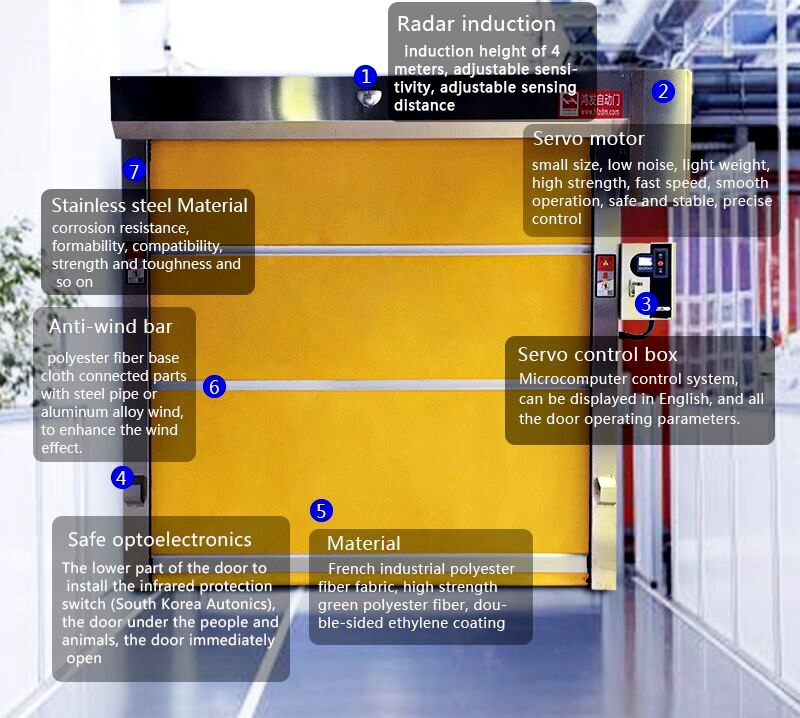

Automatic High Speed PVC Door
Product Details
PVC High Speed Rolling Door | |
Size | 6000mm(Max W)*8000(Max H) |
Speed (frequency control system) | opening 1.5m/s (adjustable); closing 1.2m/s (adjustable) |
Material | 1. 1.5mm coating galvanized steel; 2.0mm aluminum alloy; 2.0mm 304 stainless steel;
2. 0.8mm/1.2mm/1.5mm fabric; |
| Color | seletive colors:
0.8mm fabric: white 9002,yellow1001,orange 3056,bule 5007,red 3001,above fireproof;silver 7500,green 6036,etc.
1.2mm fabric:yellow1018,bule 5031,orange 3056,gray 7166, fireproof. |
| Safety Device | photoelectricity / airbag / bollards |
| Opening Device | Button / radar / remote control / rocker / geomagnetism / pull switch / swipe fingerprint machine, etc. |
| Control Systerm | JAD control system Kewei brand Misubishi technology Taiwan SHILIN brand Shanghai TOFFE brand ( PLC, transducer, switching power supply, breaker, etc.) |
| Motor | SEJ,SEW,BKJ, etc. 380V or 220V/50HZ 0.75KW/ 1.1KW/1.5KW |
| Main Features | 1. Box cover and track are made of high strength aluminum alloy that is treated by oxidation, both beautiful and durable;
2. New and beautiful aluminum alloy intergral bottom beam, whose bottom can be installed with safety rubber protection device;
3. Removeable windproof aluminum alloy rib makes the curtain replacement more convenient;
4. The system will automatically turn off the power when the door hasn't run for 30 minutes, the system will restart within 10 milliseconds once there is a new signal. It can save 30%electricity compared to the traditional system;
5. With most advanced control system which has many advantages, such as high speed, high stability, high precision, and intellignent. |
Material Selection
1. Frame: 2MM thicknesses cold-roll Stainless steel.
2. Motor: Germany SEW brake motor (outer), power 0.75KW, power supply 220V.
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box (150%1HZ)
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM, variety colors can be chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Tensile strength: 4000/3500N/5cm, tear strength 600/600N. Fire-proofing level: German standard DIN75200 Usage temperature: -30 ° C +70 ° C.
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken, save your cost.
9. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request, more safer.
10. Seal: Seal brush are Installed inside the guides, and the special bottom design, to fit any uneven ground.
11. Cotrolling way: Push button + radar sensor, very convenient.
12. Limiting Switch: Mechanical limiting switch, easily and exactly.
13. Emergency STOP: With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident
14 Fault recovery function: All Hongfa's production is with fault recovery function, system will self-recovery after power cut off.
Company Information
Hongze Auotomatic Co.,ltd. is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
What service you can get from us ?
1) OEM service for you and your clients .
2) Arrange the shipment for you to everywhere .
3) CE / ISO-9001 / SGS Certification
4) Installation video or instruction for you.
5) Available suggestion about the correct doors.
6) Professional service supporting with different language , email or phone calling .
7) Operating guidance and instruction after installation .
8) Professional / Tirelessly after-sales service .
9) 12 Months warranty for all doors and accessories.
Shenzhen Hongze Automatic Door Co., Ltd. is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
Our company introduces and absorbs the state-of-the-art technologies of the automatic door industry of the world whilst accumulating rich experience in design, production and engineering installation. The overall appearance, quality, performance and service life of our products are comparable to world-famous brands, whereas our prices are much lower than those of similar imports. All these are aimed at offering our customers excellent, low-priced products in the real sense.
Hongze has been persistently offering users all-round, diversified service of wide level. Meanwhile, we have been elaborately bringing about a rich corporate culture to serve as a faithful, honest and harmonious tie among enterprise, customers and employees.
Adhering to the principle of "proceeding from details and trivial matters", we try to embody our meticulous effort in all the links and shall spare no effort in bringing about the best products and perfect service.
Over the years, we have been guided by the principle and concept of "guarantee by brand, breakthrough by technology, supported by service". In the future, we shall do our utmost to provide our customers with related engineering consultation, scheme design, technical guidance, installation and debugging, after-sales repair and other service.
