| Price: | US $ 13000-21000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Features:
1).9 kw HSD ATC air cooling spindle from Italy
2).11kw DELTA inverter from Taiwan
3).Original Taiwan SYNTEC control system
4).850w Japan YASKAWA servo motor
5).5.5kw Tongyou vacuum pump
6).Vacuum and T-slot working table
7).3 kw double bag dust collector.
8).300mm diameter,2500mm length rotary axis.
Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1500x3000x200mm |
2 | Table Size | 1500×3000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum and T-slot working table |
6 | Frame | Welded Structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
10 | Max. Rapid Travel Rate | 33000mm/min |
11 | Max. Working Speed | 25000mm/min |
12 | Spindle Power | 9kw Italy HSD ATC air cooling spindle |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 850W Japan YASKAWA servo motor |
15 | Working Voltage | 380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
16 | Command Language | G Code |
17 | Operating System | Taiwan SYNTEC control System |
18 | Computer Interface | USB |
19 | Rotary device | 300mm diameter*2500mm length |
20 | Collet | IOS30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |

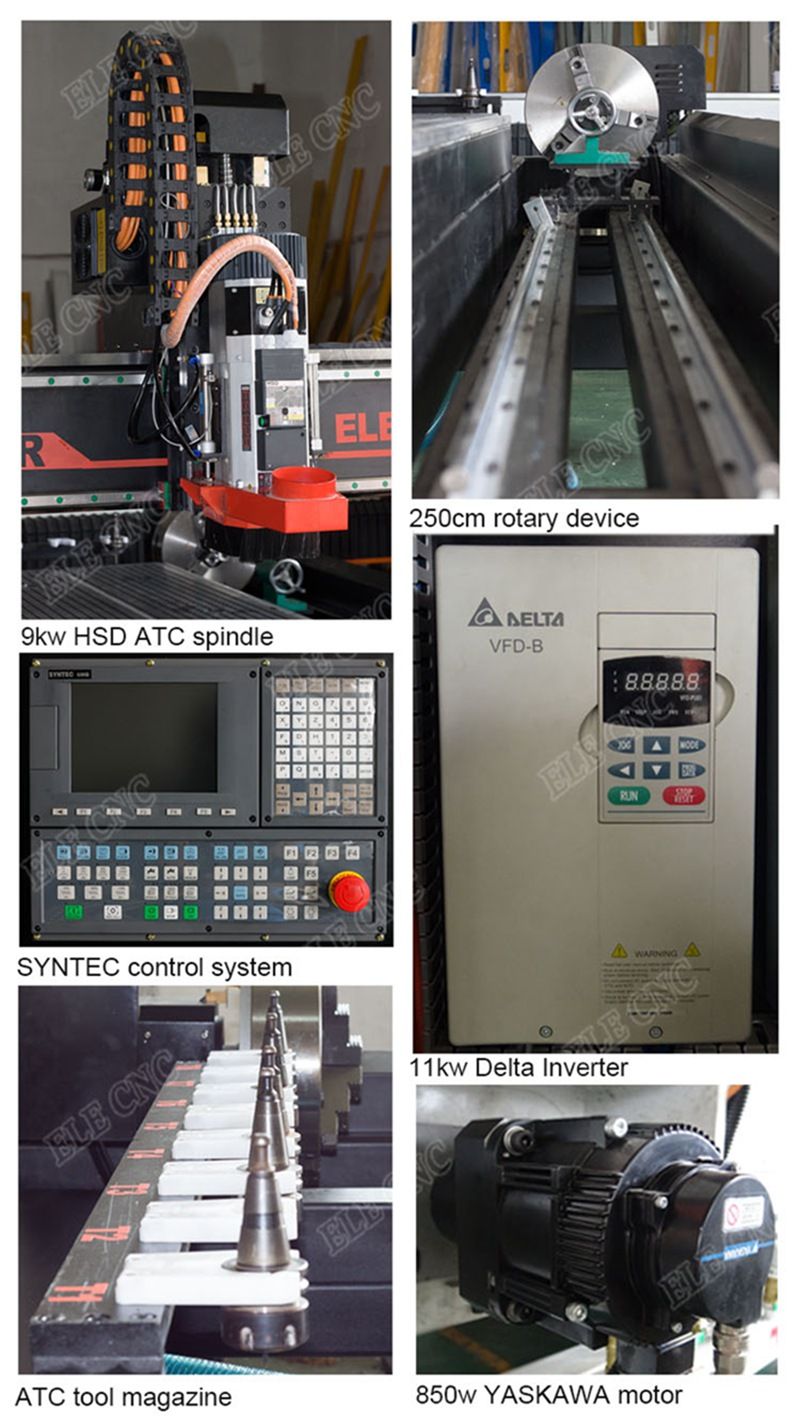

Main parts:
Applicantion:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Samples show:
Other models
We have any other models,and you can be customized it according to your processing material and working area.
3040(300*400*85)
6090(600*900*85)
1212(1200*1200*160)with rotation/sink/vacuum/vacuum clearer
1325(1300*2500*200) with ATC
1836(1800*3600*200)with 6 heads
separate double heads
one head with two spindles
and so on.
Its cutting or engraving material has wooden,stone,foam,glass,pcb,pvc and so on.
Feedback

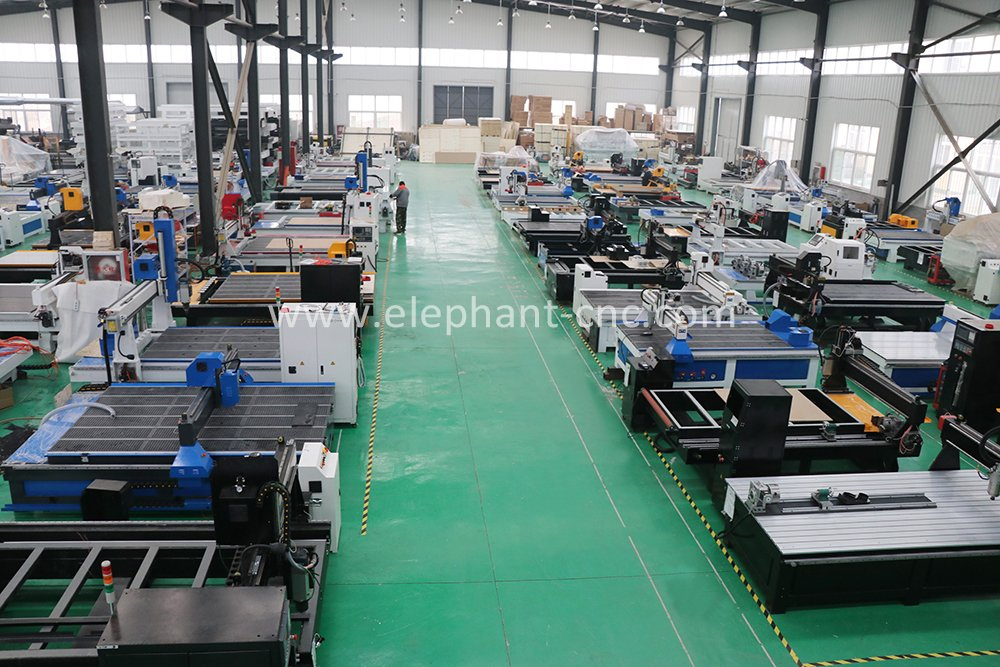

Our Factory
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: | ELE1530 |
|---|---|
| Voltage: | 380V, 3 Phase, 50/60Hz(Optional:220V) |
| Dimension(L*W*H): | 3700*2140*1950mm |
| X,Y,Z Working Area: | 1500X3000X200mm |
| Control System: | Taiwan Syntec Control System |
| Spindle Power: | 9kw Italy Hsd Atc Air Cooling Spindle |
| Inverter: | 11kw Delta |
| Motor And Driver: | 850W Japan Yaskawa |
| Spindle Speed: | 0-24000rpm |
| Frame: | Big Steel Tube Welded Structure |
| Table Surface: | Vacuum&T-Slot Working Table |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
