| Price: | US $ 2400-3310/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

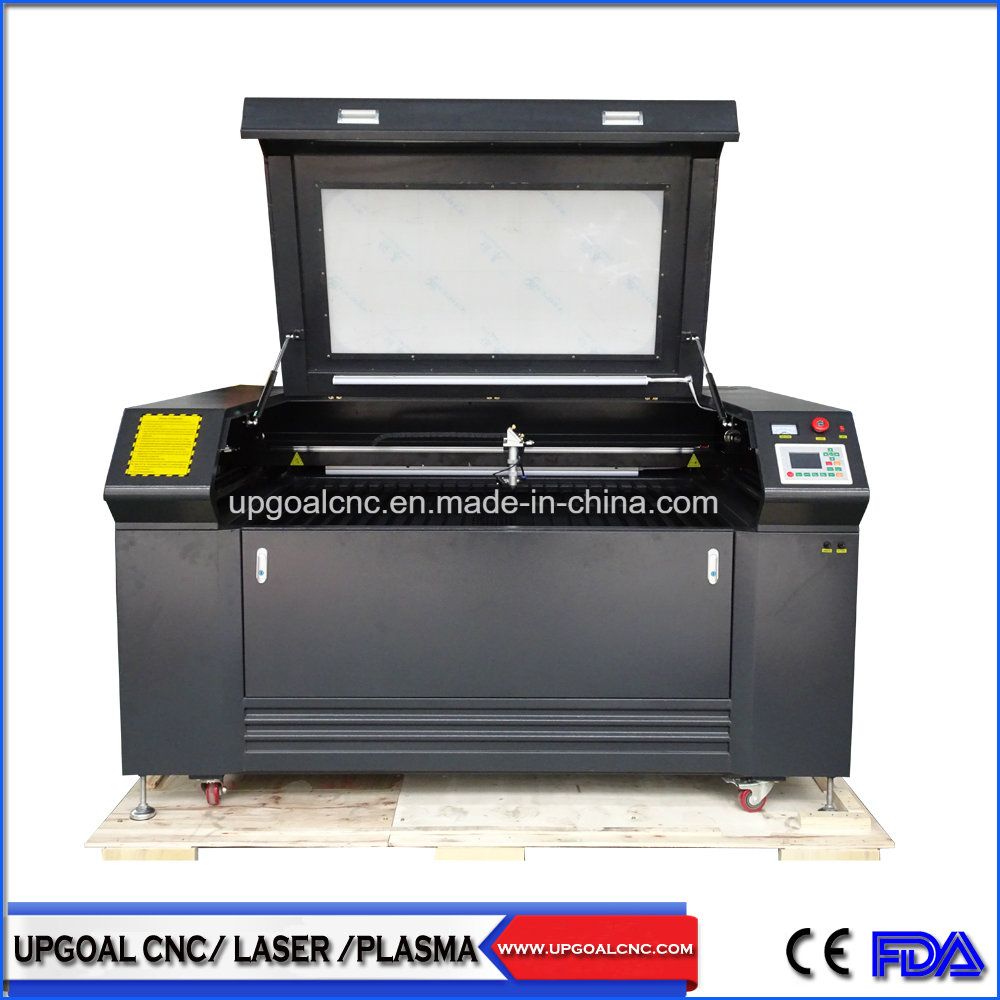

Hot Sale 1390 Acrylic & Wood Co2 Laser Engraving Cutting Machine
Features

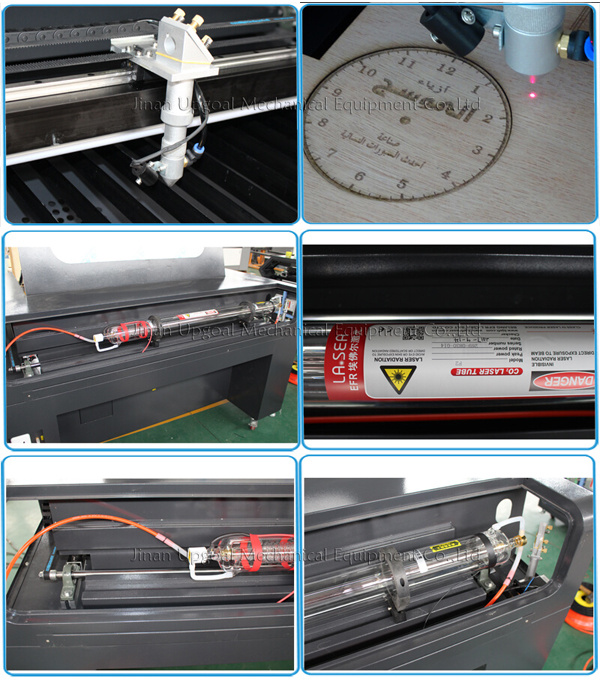

Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted high quality ERF F2 80W Co2 laser tube, long working time time and stable

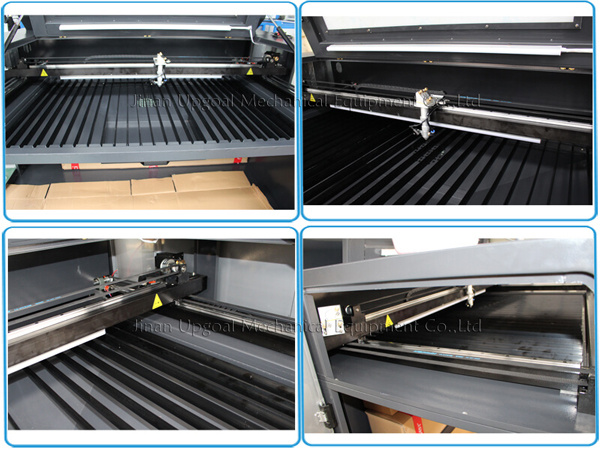

Working Table
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

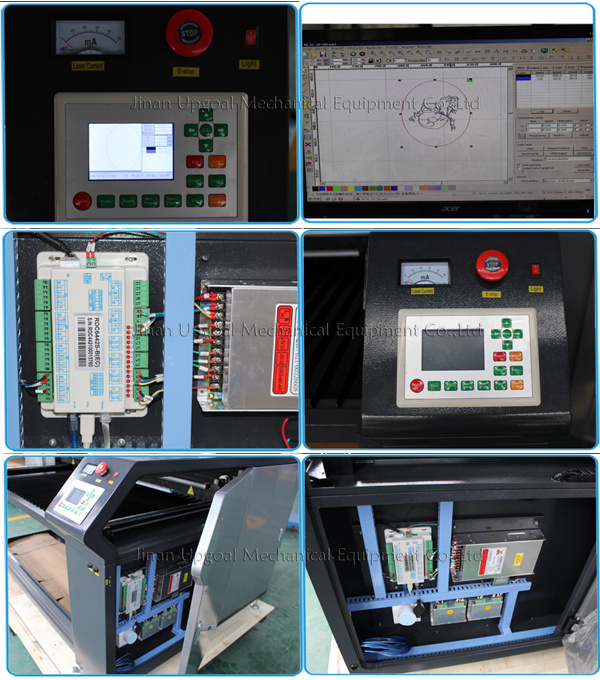

Operation System
Advanced USB port RuiDa 6442 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System

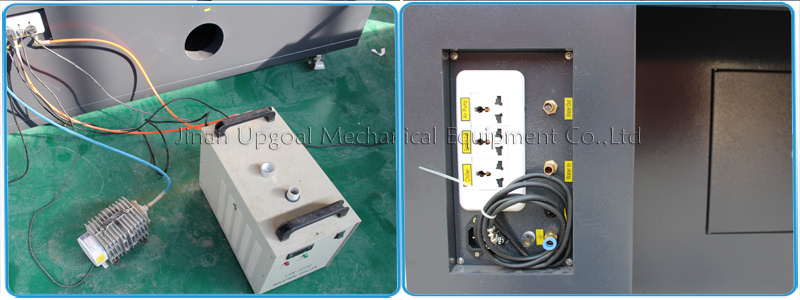

Industrial chiller CW-3000, ensuring the laser tube long time continuous working.
Technical Parameters
Effective working area | 1300*900mm |
Laser Type | Co2 sealed-off laser tube |
Laser tube power | EFR F2 80W |
Working table | Knife strip |
Driver mode | 3 phases stepper motor and Driver, Yako brand |
Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
Transmission | Belt transmission |
Control panel | English |
Laser output control | 1-100% software setting |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Control system | RuiDa 6442S |
Control software | RDWorks V8 |
Design software when delivery | CorelDraw |
Control panel | DSP offline |
Resolution accuracy | < 0.01mm |
Location precision | < 0.01mm |
Highest scanning accuracy | 2500DPI |
Type of cooling | Industrial chiller CW-3000 cooling |
Water protection system | Yes |
Blow-off system | Air pump for the laser head Air blower for the machine |
Working temperature | 0-45 °C |
Operating humidity | 5-95% (without condensed water) |
Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
Voltage | AC220V +10% 50/60Hz, single phase or AC 110V+10% 50/60Hz, single phase |
Certificate | CE/FDA |
Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

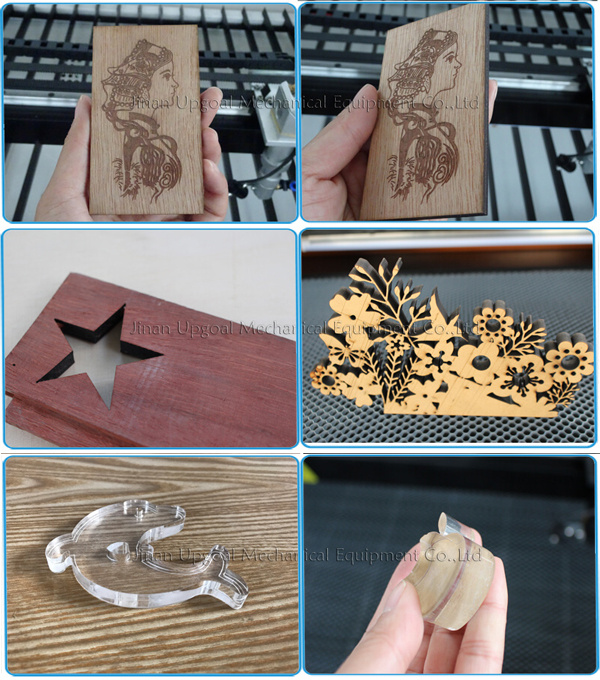

Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=zVh6O3b-Fkw&index=53&list=PLZ2SG5kTfvfOCXsQbxHpyInEaDg01cVvL

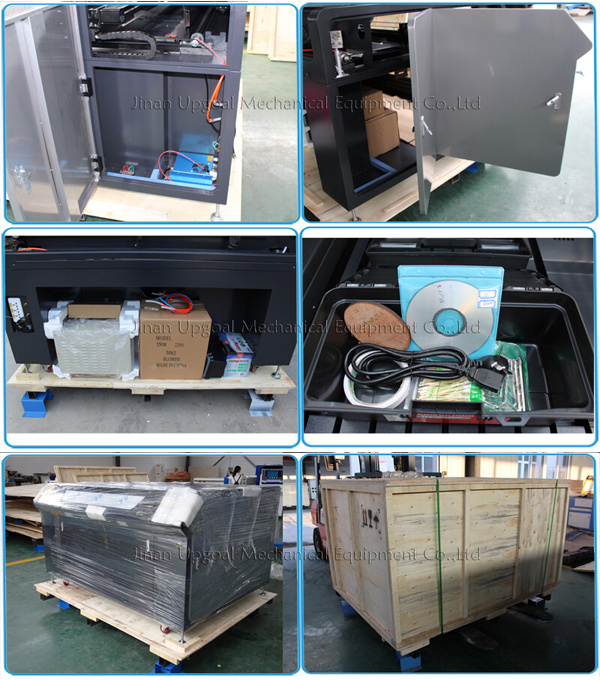

Accessories & Packing
For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
www.upgoalcnc.com, Mob: +86-13869132173
CNC Router/Laser Engraving Cutting Marking Machine/Plasma Cutting Machine
| Prod Model: | UG-1390L |
|---|---|
| Working Area: | 1300*900mm |
| Laser Type: | CO2 Sealed-off Laser Tube |
| Rated Laser Power: | Efr F2 80W |
| Working Table: | Knife Strip |
| Driver And Motor Type: | Yako Three Phases Stepper Motor and Driver |
| Guide Rail: | Linear Square Guide Rail |
| Transmission Type: | Belt Transmission |
| Cutting Speed: | 0-10000mm/Min |
| Control System: | Ruida 6442s |
| Software: | Rdworks V8 |
