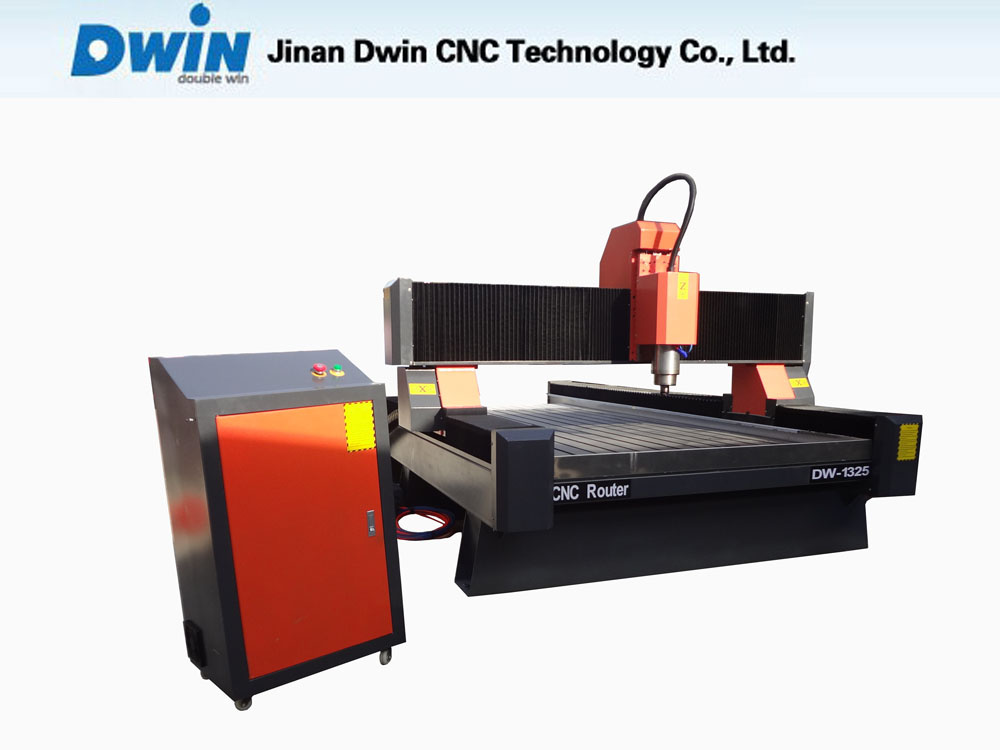

Hot Speed CNC 1325 Stone Edge Profile Router Machine (dw1325)

                            Hot speed cnc 1325 stone edge profile router machine(dw1325)

Features:
1.X,Y,Z three-axis all the imported linear square orbit .
2.X,Y,Z three-axis all have the waterproof, dustproof system
3.Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone
4.Adopt Taiwan transducer with stable output signals
5.Fully sgielded, bending circuity , and imported electronic components.
6.Adopt double drivers to drive y axis, motivity is more stronger
7.Whole seamless steel structure ,can load weight up to 1000kg

 Applications:
DW-1325 model is a comprehensive cost-effective than the professional type equipment for batch, work around the clock, can be a variety of plate engraving and cutting.
Stone caving: mainly used for marble, granite, glass,  MuYuShi hard material carving etc.
Carpenter: stereo wave pate processing, wood door, screen, process, and all kinds of furniture windows processing of auxiliary products processing.
The advertising industry: advertising signs, logo, acrylic cutting, blister, advertisement, decoration materials, making the manufacture of products.
Others: can carve all kinds of video sculpture, relief, widely used in craft industries.

Applicable materials:

Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo and other hardwood surface of virtue and sculpture

Machine Details :


Type	stone cnc router
Model	DW-1325  cnc router
Working area	1325X2500mm
Table size	1440X3000mm
Table structure	T-slot table (vacuum optional)
Working accuracy	0.05mm
Repositioning accuracy	0.05mm
Transmission	X and Y by rack and pinion, and Z by screw
Max. No-load speed	17m/min
Max. Working speed	12m/min
Spindle power	3.0KW/4.5KW/5.5KW
Spindle speed	0-24000RPM
Power supply	AC220V/50-60Hz
Command	G code/mmg/plt/
Controlling system	Syntec system/ DSP
Dimension	1700*3100*1500mm
Total weight	Approx. 2000kg

Warranty :

1) Guarantee for one year
2) Free training to make sure you master the operating of cnc router (on internet or by
telephone)
3) 24-hour technical supporton Internet or by Telephone, free instructions and problem
solving
4) Video CD for machine using and maintaining

 Our company:
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine  ,CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support f rom our clients.

Our after service
 1.One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

 5.24 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery.

7.Our staff can be sent to your company to install or adjust if necessary.
