| Price: | US $ 3500-12000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
Marking video:
https://youtu.be/1B3pUELt7wo
https://youtu.be/whWl_yK_n0g
Details:

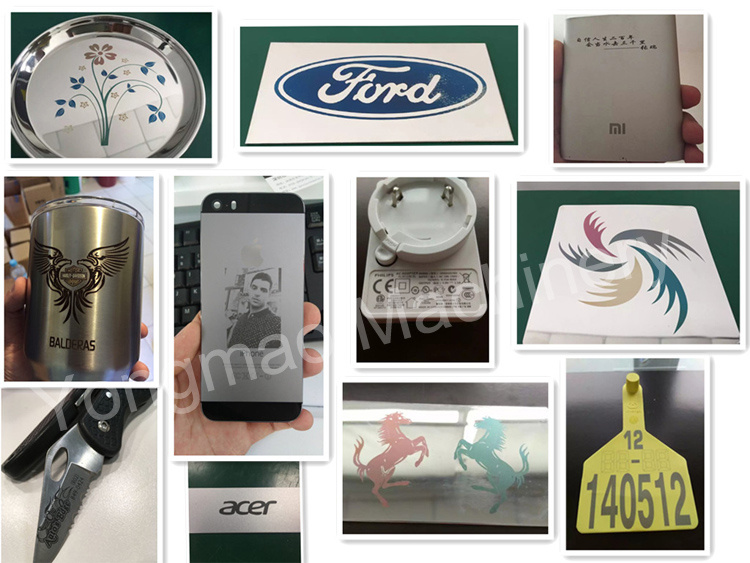

Sample shows:
| Material | Fiber Laer | Material | CO2 Laser |
| Aluminum | √ | Wood | √ |
| Stainless Steel | √ | Acrylic | √ |
| ABS | √ | Fabric | √ |
| Brass | √ | Glass | √ |
| Carbon Fiber | √ | Coated Metals | √ |
| Carbon Nanotube | √ | Ceramic | √ |
| Cobalt Chorme Steel | √ | Delrin | √ |
| Copper | √ | Cloth | √ |
| Colored Delrin | √ | Leather | √ |
| Diallyl Phthalate | √ | Marble | √ |
| Glass Filled PPEK | √ | Matte Board | √ |
| Glass Filled Telfon | √ | Melamine | √ |
| Magnesium | √ | Paper | √ |
| Metal Plated Ceramics | √ | Mylar | √ |
| Molybdenum | √ | Press Board | √ |
| Mild Steel | √ | Rubber | √ |
| Nylon | √ | Wood Veneer | √ |
| Polybutylene Terephthalate | √ | Fiber Glass | √ |
| Polysulphone | √ | Painted Metals | √ |
| PET | √ | Tile | √ |
| Santoprene | √ | Plastic | √ |
| Silicon Carbide | √ | Cork | √ |
| Silicon Steel | √ | Corian | √ |
| Silicon Wafers | √ | Anodized Aluminum | √ |
| Laser Type | Unit | Mopa | |
| Product Model | YDFLP-60-LM1-L1 | YDFLP-70-LM1-L1 | |
| M² | <1.8 | ||
| Delivery Cable Length | M | 3 | |
| Nominal Average Output Power | W | >60 | >70 |
| Maximum Pulse Energy | mj | 1.5 | |
| Pulse Repetition Rate Range | KHz | 1-1000 | |
| Pulse Duration | ns | 10-350 | |
| Longtime Average Power Stability | <5 | ||
| Cooling Method | Air cooling | ||
| Supply DC Voltage(VDC) | V | 24 | |
| Current Consumption | A | <15 | |
| Current Supply Consumption | A | >15 | |
| Power Consumption@20ºC | W | <350 | |
| Polarization | Random | ||
| Anti-Reflection Protection | Yes | ||
| Output Power Tuning Range | % | 0-100 | |
| Weight | KG | N.G:10,G.W:12 | |
| Dimension WxDxH | Mm | 315*275*99 | |
We are VIP customer for both DHL and TNT express, the end customer can enjoy fast door to door service with reasonable freight cost. We welcome customer to bear the freight by self-owned account ID, the exchange bank commission could be saved.
As for the wholesalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.
FAQ1.What's the service I can get if I buy your fiber laser marking machine?
Normally we give online support to our valuable customer, and we think online support is more than enough: with excellent technical documents and FAQ database,customers can trouble shoot and get the problem fixed in time, as for hardware failure, we would guide customer to get the proper replacement in most timely manner, make sure the production would not be hampered. On site service can also be given case by case.

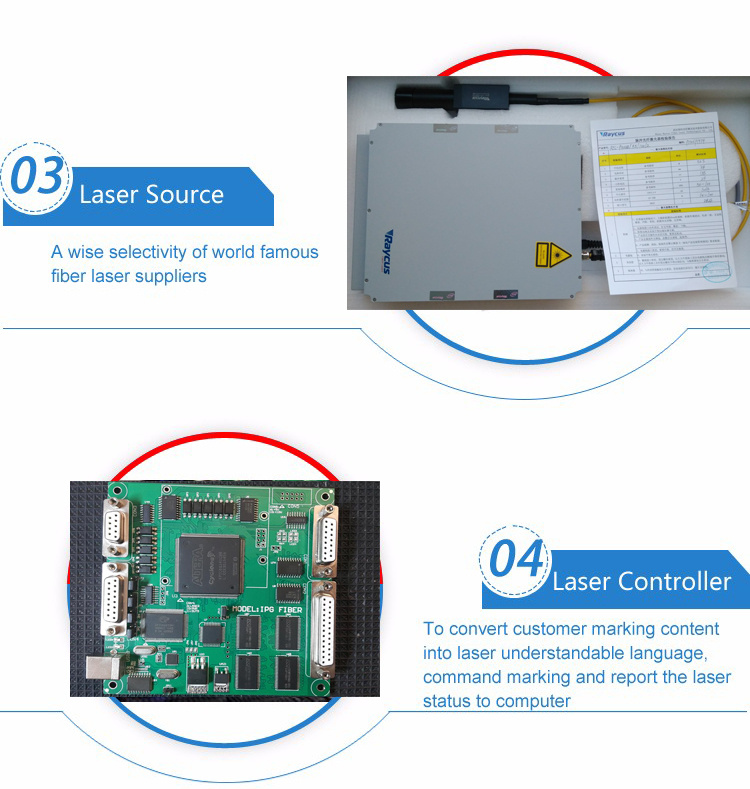

2.What is your fiber laser source, I need Germany lasers, can you make it, and what is the difference between them?
Normally we configure China top fiber laser for our laser marker, cutter, the imported lasers could be given as per request. You are most welcome to consult our marketing specialist for the laser difference.
3.Have you sent any fiber laser marking machine to my country?
We have sent the laser marking machine to the most of developed countries, and we also expanding fast in developing countries, you are most welcome to contact us in this regards.
4.What certificate does your company have?
CE, FDA and ISO for all.
Contact:Snowy Fang
Mobile:+86-182 2849 0406
| Prod Model: | LMT2000NM |
|---|---|
| Wavelength: | 1064nm |
| Cooling: | Air Cooling |
| Marking Window: | 110*110mm/200*200mm/300*300mm |
| Minimal Marking Width: | 0.01mm |
| Maximal Marking Depth: | 0.01~0.50mm |
| Minimal Marking Character Height: | 0.15mm |
| Pulse Frequency: | <=200kHz |
| Maximal Marking Speed: | 12000mm/S |
| Positioning Accuracy: | +/-0.02mm |
| Expected Laser Mtbf: | 100, 000 Hours |
