1) CE certificate
2) ISO9000: 2000 Certificate
3) Volume: 200-5L
4) PET bottle, glass bottle
| Model | R-6 | R-10 | R-15 | R-20 |
| Capacity | 6000BPH | 10000BPH | 15000BPH | 20000BPH |
General description
Linear self adhesive labeling machine is designed to label products of flat face. With optional labeling device for round bottle or square bottle, this machine is able to handle circular labeling for round bottles, as well as enwrapping labeling for square bottles.

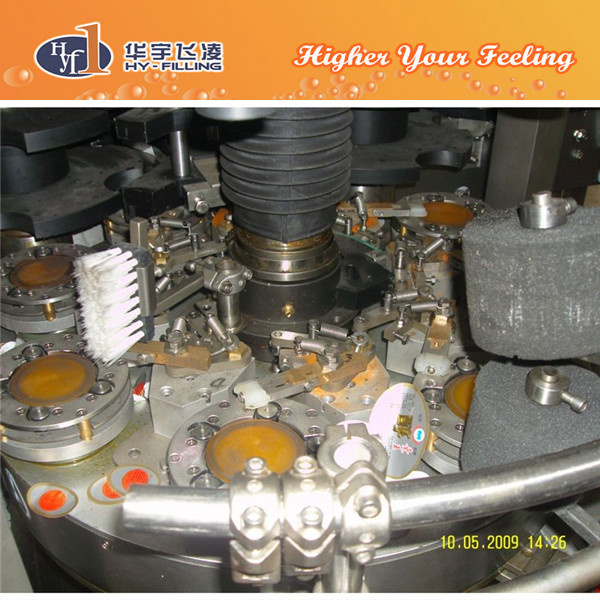

Rotary self-adhesive labeler is a new machine developed independently for applying self-adhesive and crystal label for brewage, fruit juice beverage, cosmetics and edible oil. With the most up-to-date system of cortronlling and transporting, the labeler is very accurate and reliable to apply label on containers. Adopting modular design concept, We can design quickly to meet customers'individual needs. Self-adhesive station is independent modularization that has possibility of combined labeling for cold glue and self-adhesive at the same labeler. Besides, cold glue and self-adhesive labeling can be exchanged on same labeler.
Features
1) Accurately apply label at different speed...
2) If changing label shape, need to alter program without exchanging any parts on station.
3) Low label consumption (reach international advance standard).
4) Transport label driven by servo motor keep applying label accurately.
5) Automatic control program make operation easily.
6) Label of Releasing and returning is driven independently so as to guarantee servo motor running smoothly.
7) Concentration lubrication system.
8) Easy and simple to handle and maintain.
Technology Parameters
1. Number of Heads: 6, 9, 12, 15, 18, 24, 30. Design base on the customers requirements.
2. Capacity: 3000-30.000 b/h.
3. Limit Capacity: 110-120%.
4. Pattern of Bottle: 50-120mm for cylindrical and square.
5. Number of Station: 1-3 stations. Apply labels of body, back and neck at same time.
6. Pattern of Label: Height is 160mm, Length and pattern is no limited.
7. Label Consumption: <0.5‰ .
8. Machine with Conveyor Belt: 2300-3800mm.
9. Voltage: 380± 10%V 50Hz.
10. Air Pressure: 0.6MPa.
Configurations
1) Servo Motor For Applying Label: LENZE.
2) Servo Motor for Releasing Label: Panasonic.
3) Main Motor: SEW motor including gearbox.
4) Motor for Conveyor Belt: SEW motor including gearbox
5) Pneumatic Element: SMC. AIRTAC.
6) Frequency Converter: DANFOSS.
7) PLC Control: Siemens.
8) Control Elements: P+F. SCHNEIDER. LEUZE.
9) Touch Screen: Siemens.
HY-FILLING, as one of famous beverage and dairy packaging machinery manufactures in China, it is located in Zhangjiagang city which is very near Shanghai with beautiful scenery and convenient transportation. Owning the top-ranking R&D center and more than 20 senior engineers and 30 senior technicians, our products has covered all the domestic markets. Furthermore, we have exported our products all over the world, such as American, Argentina, Brazil, Russia, Poland, Turkey, Iran, South Africa, and Southeast Asia, etc, and more than 600 filling lines running all over the words till to now. We also offer our customers with the best technical plan, superior products, and perfect after-sale service to optimize the process of production, and supply our customers with reliable machinery. With persistent development, now our company is becoming larger and larger, thanks for your support and trust on our machinery. We consider "Exploring the highest technology in machinery industry; Creating a brilliant future in this field" as our company policy. And we deeply believe that tomorrow of HUAYU COMPANY will be much more brilliant.
Main Products:
1.2000-48000 BPH Mineral/Pure Water Bottling Line;
2.2000-40000 BPH Juice Bottling Line;
3.2000-40000 BPH Carbonated Beverage Bottling Line;
4.3000-40000 BPH Beer Bottling Line;
5.6000-30000BPH Aluminium Can Filling Line;
6.120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;
7. Edible Oil Filling Line;
8. Aseptic Brick Packing Machine;
9. Aseptic Pouch Packing Machine (Pillow Type);
10. PET Preform Injection Machine;
11. Bottle Blow Moulding Machine;
12. Water Treatment;
13. UHT Plant;
14. Carbonating Mixer;
15. Bottle Unscrambler;
16. Film Shrink-wrapping or Carton Box Packaging Machine;
17. PA-Depalletizer;
18. Turn Key Project.
