Indoor Full Color Video LED Ball Display with Pixel 4.8mm
| Price: |
US $ 11000-85000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
P4.8 Indoor Full Color Mira LED Ball display for indoor advertising with 360 degree, perfect vision effection and with dynamic video, customized diameters is available, stand on floor or hang on ceilingProduct Features:
1. SMD black body leds confirm wider viewing angles,high contrast ratio, and close viewing distance
2. Advanced Video Processing: Produce crystal-clear, detailed image with smooth motion reproduction.
Deliver image feeds in both standard and high-definition formats.
3.Full-Depth Image Calibration: Provide a uniform display picture through factory and field calibration.
4.Seamless splice image, can be controlled by Synchronous or Asynchronous
5. Auto inspection technology can find out the broken lamp or other parts of LED Screen automatically, it is more convenient for maintenance.
6. The diameter of the ball mostly do with 1200mm, 1500mm, 1800mm, 3600mm,also can be bigger as request, and can be stand on the floor or be hung on ceiling or truss

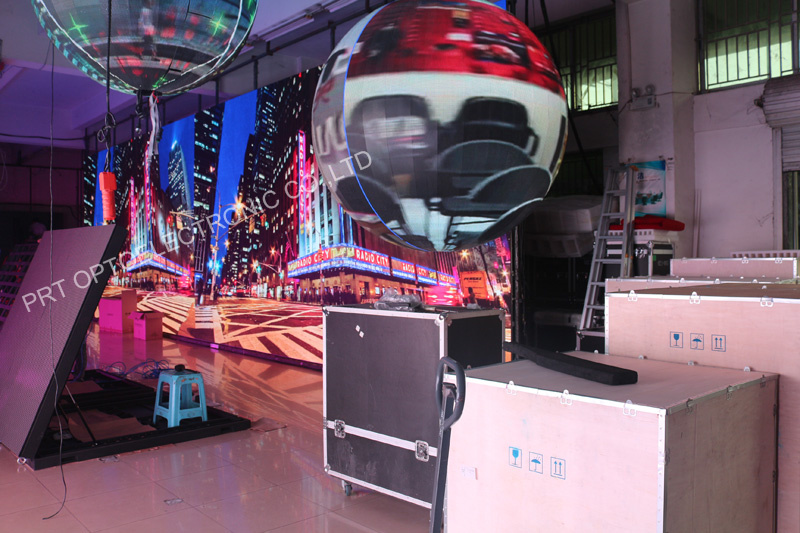

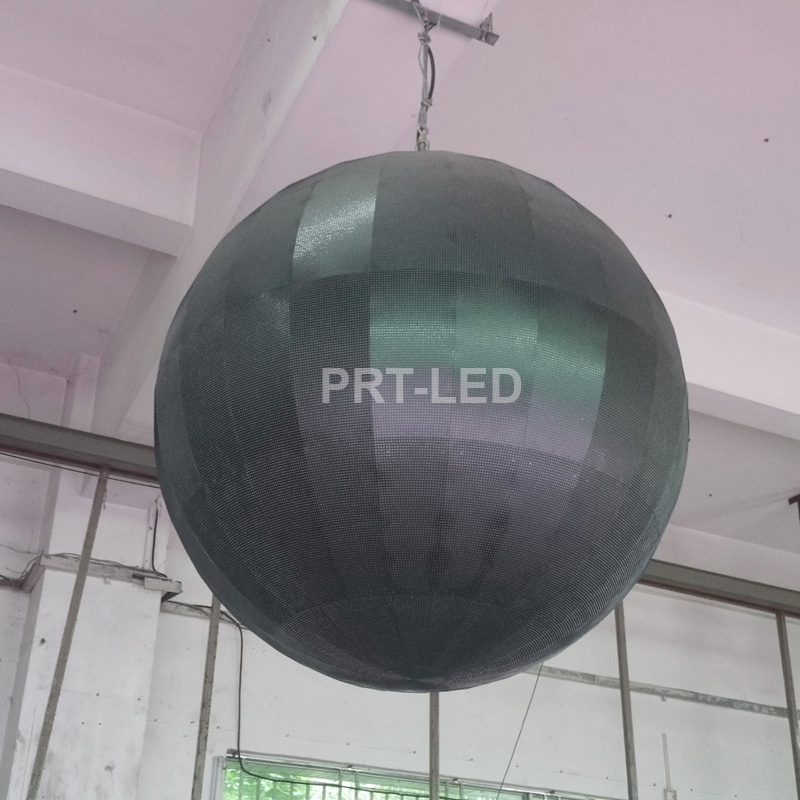

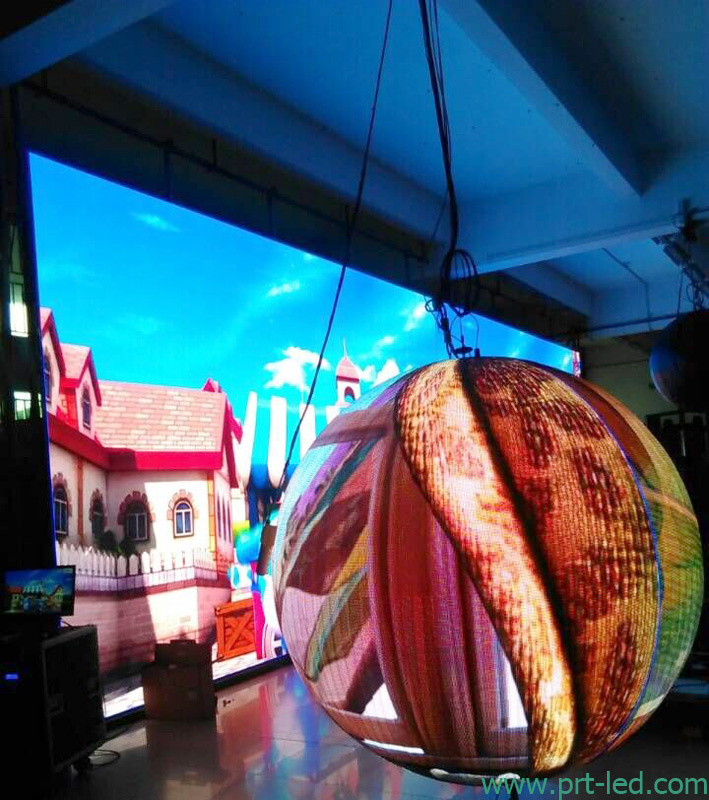

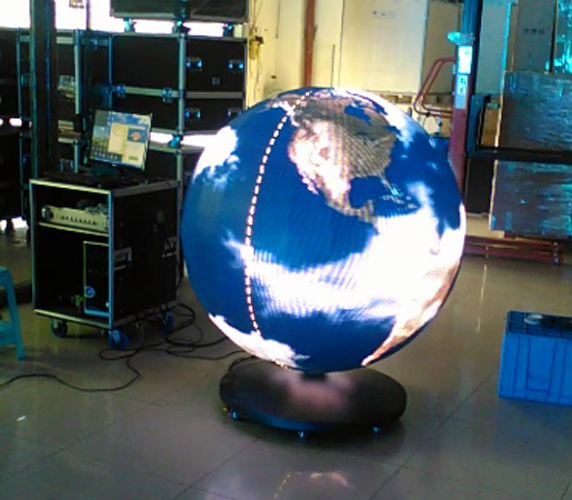

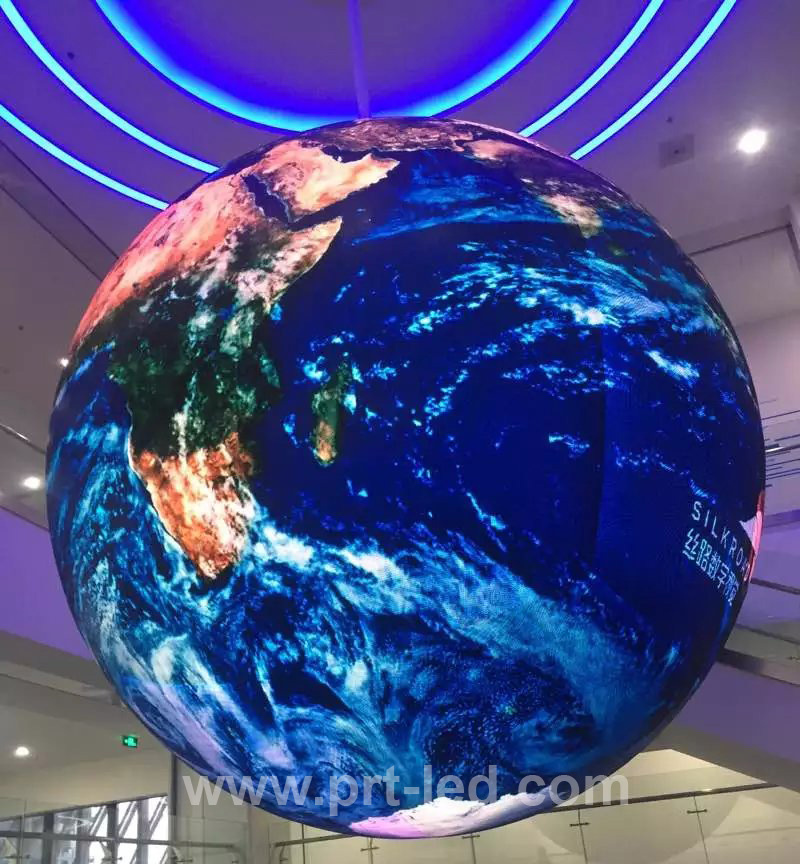

Please see more pictures as following,please contact us for details
Related parameters for reference,please contact us for details
| Parameter | Unit | Value |
| Pitch | mm | 4.8 |
| Brightness | nits | 1,800 |
| Color temperature | deg. K | 6,500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle - Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Net Weight | kg | 70 |
| Diameter | mm | 1,200 |
| Operating temperature range | deg. C | -30 to +60 |
| Material | | Steel |
| Ingress protection (front/rear) | | IP31 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3528 SMD |
| Dot per sq. meter | | 43402 |
| Recommended minimum viewing distance | m | 3 |
| Recommended best viewing distance | m | 4~30 |
| Colors | | 281 trillion |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | | 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 600 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/panel | 2,000 |
| Input power (typical) | Watts/panel | 800 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Multimedia data format | | DVI,MPG,AVI,WMV,RM etc. |
| Controller | | Linsn/Novastar/DB Star |
| Control way | | Asynchronous & Synchronous |
| Data interconnection | | UTP Cat 5/Optical Fiber |
| Mounting system | | Hanging & Stand on ground |
| Package | | Flight case |
| Prod Model: |
P4.8 |
| Control Method: |
Asynchronous/Synchronous |
| Module Size: |
154X154mm |
| Module Resolution: |
32X32dots |
| Brightness: |
>1500nits |
| Install Method: |
Stand/Suspend |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Rental.Decoration |
| Certification: |
CCC |
| Pixel Pitch: |
4.8mm |
| Pixel Density: |
43402dots/Sqm |
| Scanning Mode: |
1/10 Scan |
| System Operating Platform: |
Win XP,Win 2000.Win7/8 |
| IP Rating: |
IP31 |
