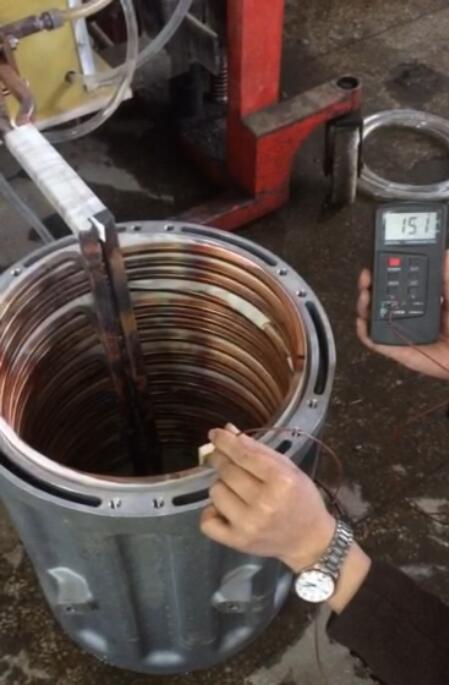

Induction Heating Power Supply for Shrinkage Fitting

Advantages:

•  More reliable: the cabinet is well sealed, no failure all year, IGBT never burst.
•  More Intelligent: Inverter power factor can reach 96%.
•  More Intelligent: Control precision can reach 0.1%, all load can be automatically matching.


Technical Parameters:

• Power range: 100-2000KW
• Frequency range:0.2-50KHZ
• Power Factor: >0.96
• Control Precision:0.1%
• Resonance Mode: Series resonance, parallel resonance, mix resonance
• Application field: heat treatment(hardneing, tempering, annealing, hardening&tempering),hot forging, melting,crystal drowth, induction evaporation, forging, casting and so on.

Working Environment:

• The power supply voltage big fluctuation.
• Product variety
• High quality requirement
• Products require high consistency

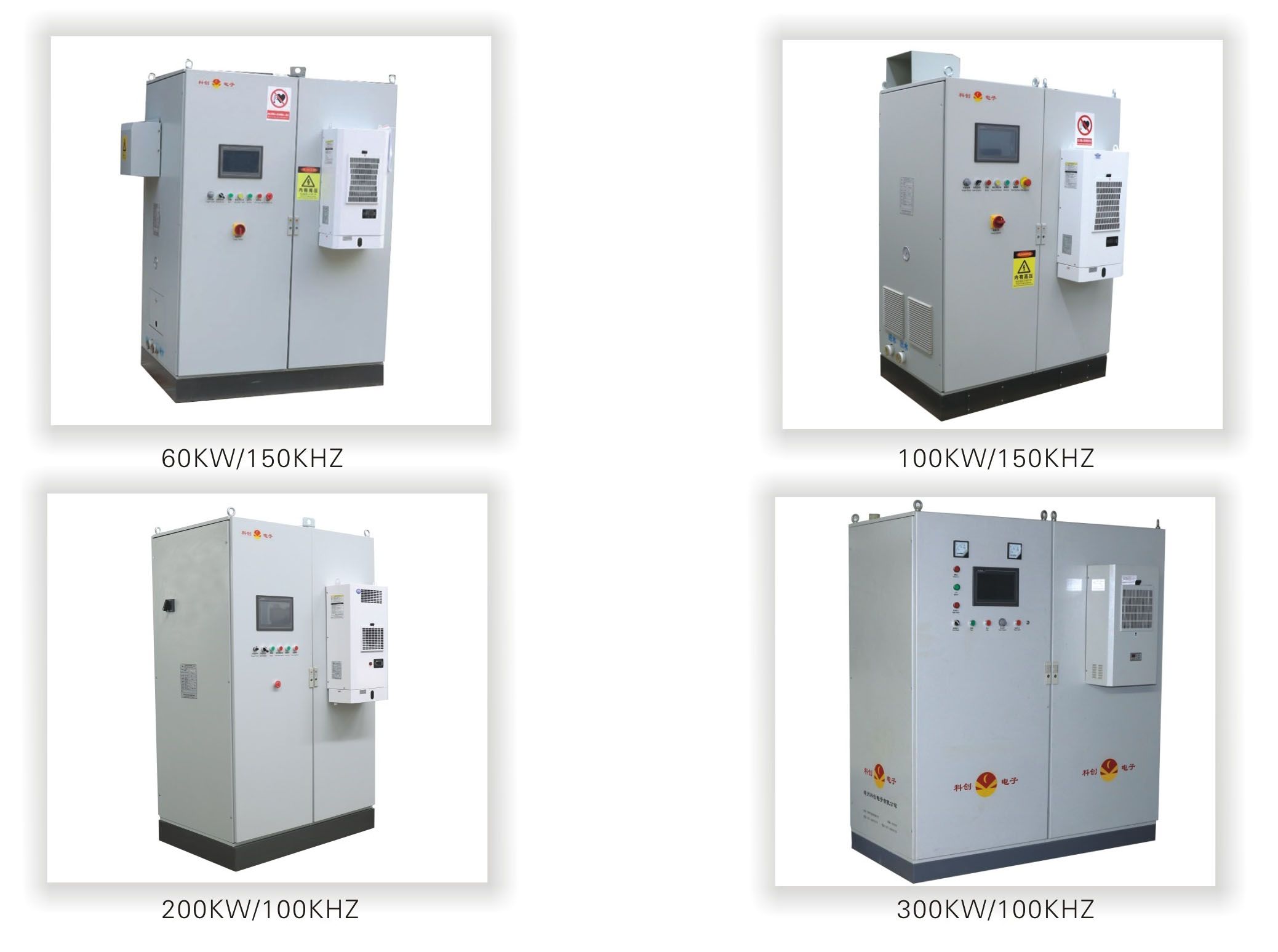

 Induction Heating Machine Display:

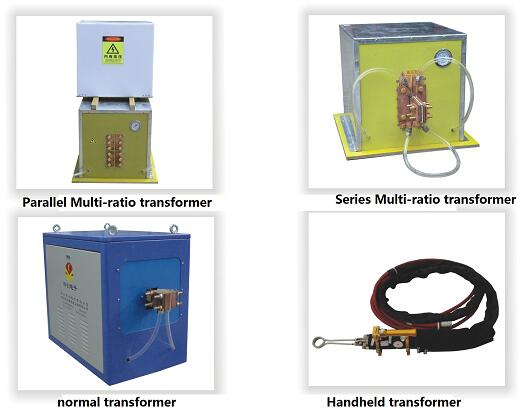

2. Induction heating  Machine Transformer:

     Induction machine Transformer parameters:

• Capacity range: 300KVA--3000KVA
• Frequency range: 0.1KHz--500KHz

     Induction machine transformer features:

• General Transformer----convenient operation, single turn ratio, need to adjust the induction coil to match the machine.
• Multi-ratio Transformer----suitable for all kinds of induction coils, used for all kinds of occasion,just need to adjust the turn ratio is ok.
• Coaxial Transformer---energy concentration, small volume, but the turn ratio is single, better suitable for fixed load.

3. Induction coil introduction:

   Technical parameters:

    made by the customers' detailed technical requirement.


   Features:

  Ø  Magnetic field distribution and design are precise, high efficient and energy-saving.

  Ø  Use with the magnetizer, easy to adjust the magnetic field intensity.

  Ø  Easy disassembly, exchangeability.

  Ø  Fastness and durability.

  Induction coil applications:

   Crankshaft induction coil, end-face induction coil, hub bearing induction coil, caterpillar track section hardening induction coil, inner hold induction coil, gear induction coil, shaft neck hardening induction coil, 3m inner hold hardening induction coil, crankshaft with fillet induction coil.

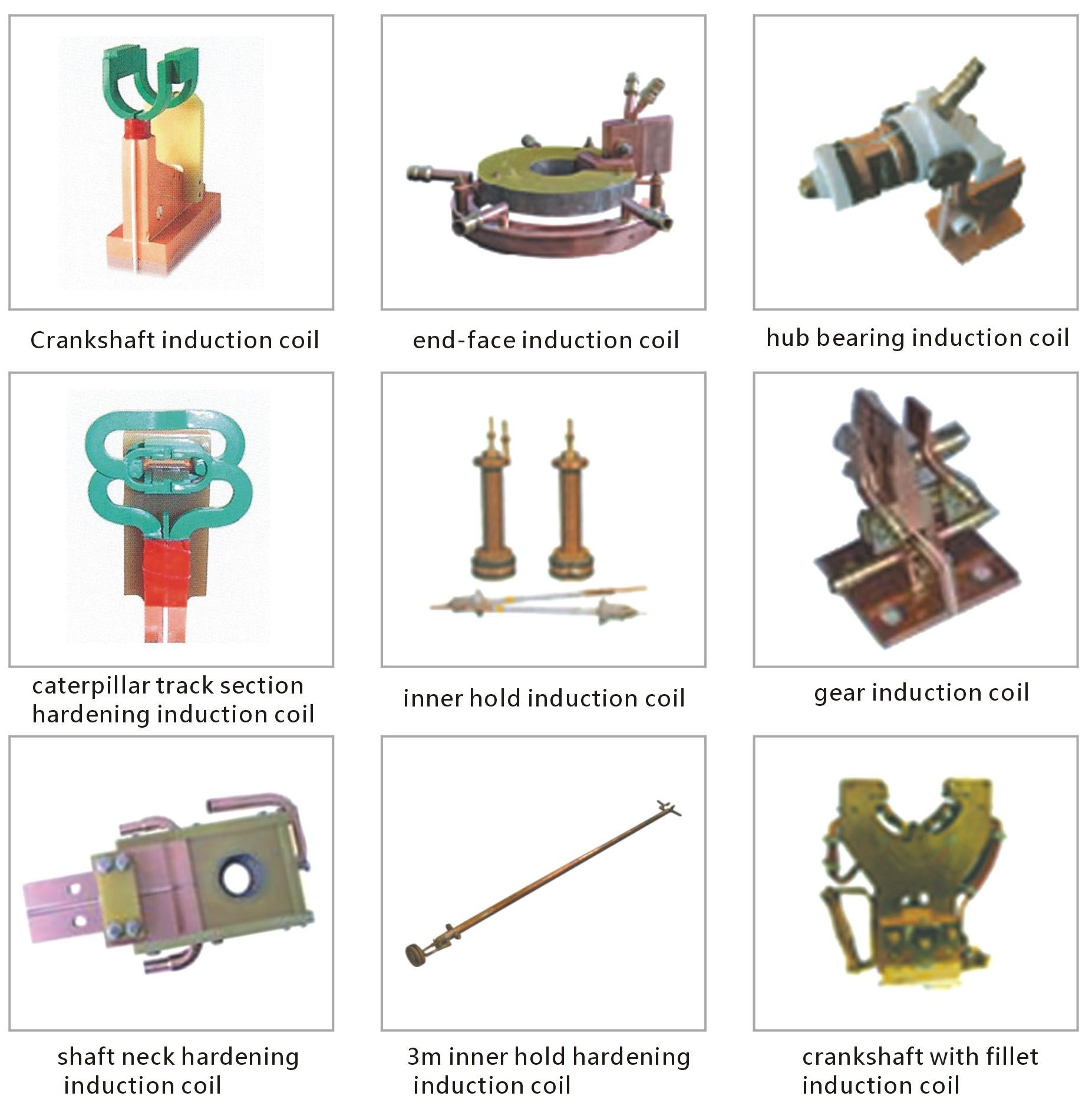

  Induction coil pictures:

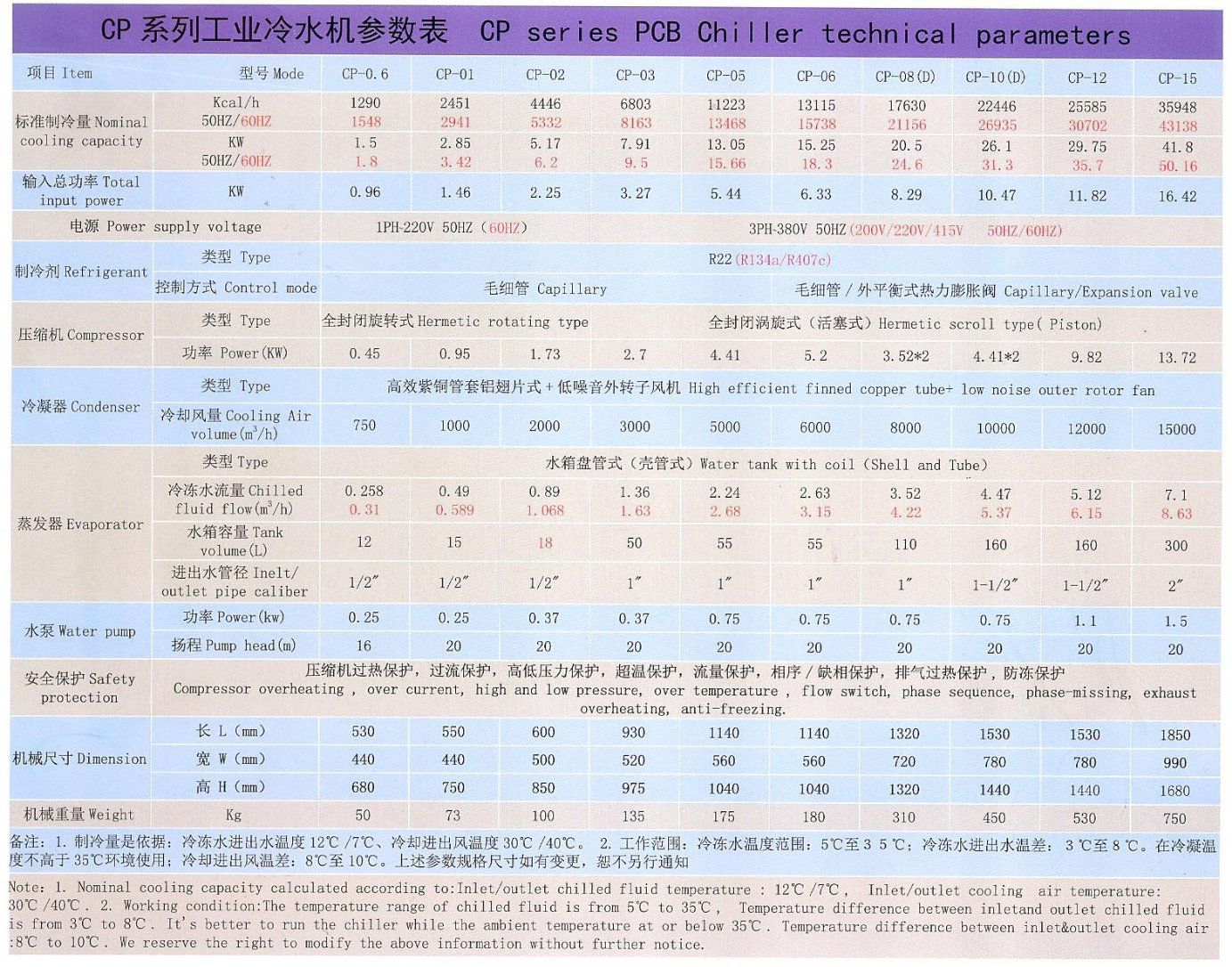

4.Industrial Chiller:

• Original American and Japanese compressor with built-in safety protection, low noise, power-saving and durability.
• Italian water pump with big flow, high efficiency and long durability.
• Microcomputer PLC control system and precise digital control system, making temperature tolerance at ±1ºC. Push button operation and work normally without professional personnel.
• Famous "SCHNEIDER" electrical components and guarantee stability and long service life.
• With DC circuit, water pump stops when CNC spindle not work to avoid condensate water.
• Stainless steel thick tank evaporator with built in auto filling water devices, convenient and quick for maintenance.
• Static spraying casing with compact size and easy dismounting plate.

5. CNC hardening machine tool:

CNC Hardening Machine Tool Technical Parameters:

• Ø  Vertical type universal machine tool: Φ10-Φ200,500-3000mm
• Ø  Horizontal type universal machine tool: Φ50-Φ200,500-10000mm
• Ø  Disk type universal machine tool: Φ50-Φ1000mm

Special-purpose machine tool: can design and make as the customers' requirement.


CNC Hardening Machine tool Features:
Ø  Running with high precision
Ø  Control function is perfect, can use single shaft, multiple shaft control system.

Ø  Can use together with the power supply power, meet the same part different power requirement.
Ø  One-touch operation

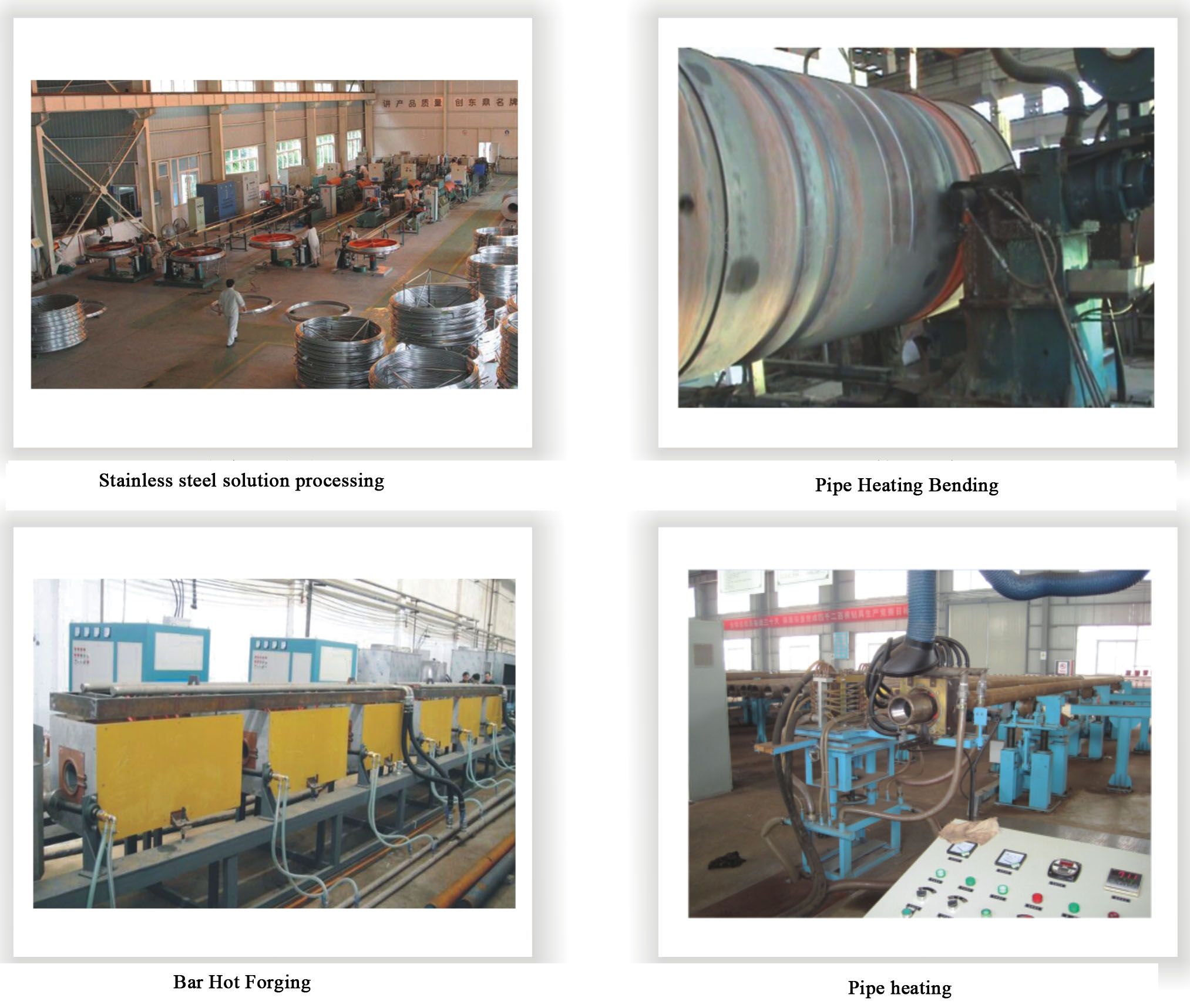

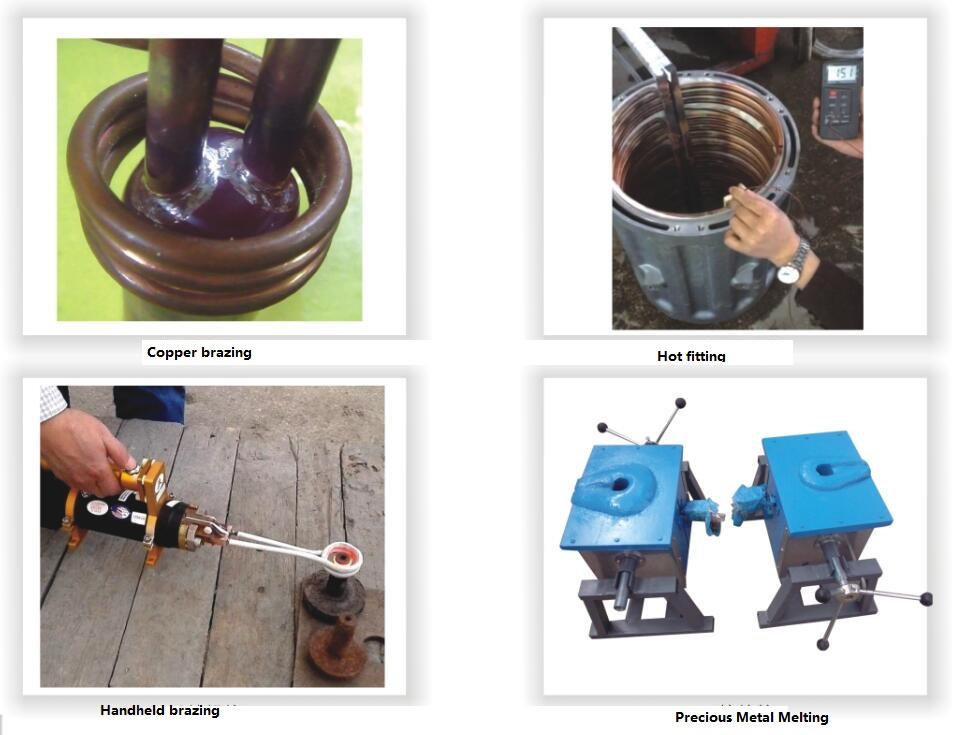

6.Application Fields:
  Heat Treatment
  Wire heating ,strip steel heating,panel material heating
  Bar forging heating,stainless steel heat treatment, pipe material heating, forging heating, pipe heating  bending.
 Oil pipe heating, pipe preheating heat treatment.
 Braze welding,  precious metal melting, hot charging and hot discharging.
 Cellphone and portable computer mould heating, induction coating and so on.


7.Customer Service

Call or e-mail us any time. Before you place your order, we will be happy to discuss your detailed requirements with you and help you find a selection of machine that is just right for your market.


8. Quick Delivery

With your wide requested of faucets with even less than our MOQ, we are able to fulfill most requests within short days of your order.

9. Promise

Customers Satisfaction, provide good quality and reasonable price and constant after sale service to be engaged in 100% of us .
