| Price: | US $ 37000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal |
KINKAI Heat Pump Drying Machine Introduction:
KINKAI heat pump drying oven is a device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in a refrigerator.
How Does The drying machine Work?
1, Dryer evaporator of refrigerant absorb the air from outside.
2, Then compressor works that make the air temperature rise.
3, Heat exchanger change the hot air into drying chamber.
4, Final material will be dried by the hot air circulating in drying chamber.
Video link about dryer working principle:Https://youtu.Be/K6WMogw0GDs
KINKAI Heat pump drying machine has large capacity and easy to operate characteristics.Mainly suitable for dehydrated vegetables, fruits etc.Agricultural and sideline products, Chinese herbal medicine as well as chemical materials dry.

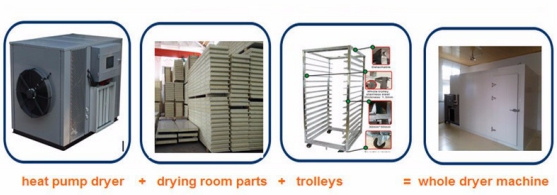

KINKAI drying machine consists of a trolley, drying tray, heat exchanger, blower fan, LCD controller cab inet and drying chamber, The entire machine is made of insulation material and stainless steel, fully satisfying food hygiene requirement.
Model:JK03RD, JK06RD, JK12RD
Power Supply:220V/1PH/50HZ or 380V/3PH/50HZ
Type:75% air source + 25% electric power
Max.Temp:75C
Working Temp:-10~45C
Functions:Heating / Cooling / Dehumidify
Dryer Type:Batch Type
KINKAI heat pump dryer Technical Parameters
| Single dryer + drying chamber | ||||
| Model | Unit | JK03RD | JK06RD | JK12RD |
| power input | KW | 4.8 | 8.5 | 15.0 |
| power supply | V/PH/HZ | 380V/3PH,50/60HZ | 380V/3PH,50/60HZ | |
| 220V/1PH,50/60HZ | ||||
| Rated current | A | 9.6A(380V),22A(220V) | 17.0 | 30.0 |
| Heating capacity | KW | 10.5 | 21.0 | 42.0 |
| Cooling capacity | KW | 7.8 | 18.0 | 50.0 |
| Dehumidify | L/H | 12.0 | 25.0 | 50.0 |
| Max. temperature | ºC | ≤75 | ≤75 | ≤75 |
| Working condition | ºC | 0-43 | 0-43 | 0-43 |
| Electric shock protection grade | 1 | 1 | 1 | |
| Max.exhause pressure | MPa | 3.0 | 3.0 | 3.0 |
| Noise | dB(A) | 75 | 75 | 75 |
| Power consumption/H | KWH | 4.8 | 8.5 | 15.0 |
| Electric heater | KW | 3.0 | 6.0 | 12.0 |
| Blowing type | / | HORIZONTAL BLOWING 360° | ||
| Dimension of dryer | MM | 1675×860×1280 | 1760×1060×1280 | 2120×1360×1590 |
| Weight | KG | 180 | 285 | 480 |
Installation Advantage
1.Easy to install and remove, covers small area , can be placed indoors or outdoors.
2.No-pollution, no burning, noemissions. Belong to environmental protection products.
3.Safe and reliable operation:There is no traditional dryer (coal, fuel, electric heating) may exist flammable,explosive,short circuit and other dangerous.It's a safe and reliable semiclosed drying system.
4.Long service life,low maintenance cost,developed in the traditional air conditioning technology. Mature technology,stable performance,reliable,long service life.Automatic no manual operation, intelligent control.
5.Convenient to operation,automatic PLC control.
Buying Guides
| Recommend Dryer+Drying Chamber Sizes | |||
| Item | Description | Product Capacity | Drying Chamber size |
| 1 | One unit JK03RD dryer + drying chamber | 300Kg / batch | 4000*2000*2200mm |
| 2 | One unit JK06RD dryer + drying chamber | 600Kg / batch | 6000*2800*2200mm |
| 3 | One unit JK12RD dryer + drying chamber | 1300Kg / batch | 6000*3000*2200mm |
| 4 | Two units JK03RD dryers + drying chamber | 1200Kg / batch | 7000*2200*2200mm |
| 5 | Two units JK06RD dryers + drying chamber | 1500Kg / batch | 10000*2800*2200mm |
| 6 | Two units JK12RD dryers + drying chamber | 3500Kg / batch | 10000*3000*2200mm |
If you are interested in our product , please contact us for more information, such as catalog and vedio etc.
Crystal, Lin
Add: Huadu District, Guangzhou City, Guangdong Province, P.R. China
Phone: +86+13723539881
Our services
| Prod Model: | JK12RD |
|---|---|
| New Technology: | Second Waste Heat Recovery Technology |
| Function: | Heating / Cooling / Dehumidify |
| Max.Temp.: | 75 Degree |
| Working Temp.: | -10~45 Degree |
| Heat Capacity: | 42.0kw |
| Cool Capacity: | 32.0kw |
| Dehumidify: | 50.0L/H |
| Noise: | 75dB(a) |
| Control System: | Touch Screen Operation |
| Material: | 304 Stainless Steel/Steel |
| Type: | Dryer |
| Voltage: | 380V |
| Customized: | Non-Customized |
| Power: | 15.0kw |
