Intelligent IC Card Control Residential and Business Building Elevator

Name: Intelligent IC Card Control Residential and Business Building Elevator
Brand: china-crystals.com
SKU: 730654812
Availability: InStock
Rating: 4.9 (93 reviews)

Price:	US $ 11000-25000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product application

The passenger elevator are designed for different types of residential buildings, villas residential, office buildings , adopt new design concept, bring in the customize host designed by one elevator drive brand who has one hundred years history , high performance elevator parts, permanent magnet synchronous drive and intelligent door system, open close precision, safe and reliable. For Large-Scale Buildings Vertical passenger flow. Provide planning design production and installation and monitoring service of operating. For Luxury residential buildings/Shopping Centers/CBD/Hotels. Transportation Junctions and other Public Buildings.

Small Machine Room Passenger Elevator
Saving Up to 50% Area of Machine room
Apart from the effective and intellectual control system, the small machine room elevator also applies small traction machine and thin control cabinet design; machine room could be smaller and compact.
Machine room is only an extension of the well. It is convenient in construction and low in cost. The application of compact gearless traction machine leaves a larger space for machine room.

The decoration of the car:
Ceiling: Rose gold stainless steel, acrylic lighting decoration
Car wall: Rose gold mirror stainless steel, mirror stainless steel
Car door: Rose gold stainless steel
Floor: PVC
Display: LCD liquid crystal display
Integrated control box

Main parameter
Name of the equipment:	computerized modularized VVVF controlled passenger lift / residential lift
Lift style:	BMEV3.0
Stops:	all doors face the same direction
Base floor:	the first floor
Main configuration
Operating system:	fully computerized and elective manner
Control system:	Modularized and fully computerized control system; serial link communication system.
Driving system:	the new type of BESTER alternating current variable frequency and voltage driving system with stepless (infinitely) variable speed
Door operating system:	BESTER door operating system with the function of variable frequency
The location of traction machine:	inside the machine room at the top of the hoistway

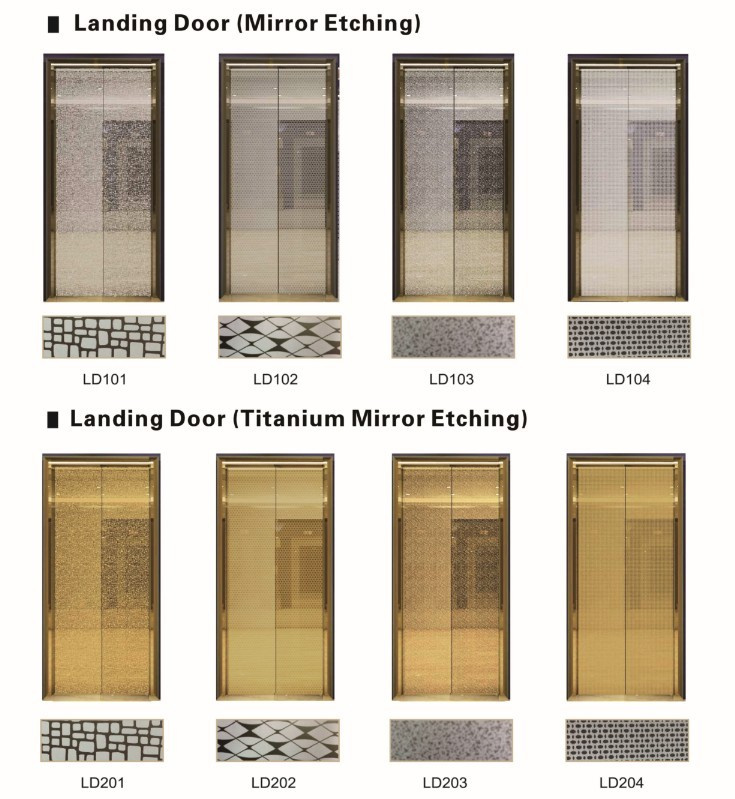

Devices of landing door
Material of landing doors:	hairline finished stainless steel for the first floor, and high quality spray painted steel plate for other floors (just for reference)
Material of landing door jambs:	hairline finished stainless steel for the first floor, and high quality spray painted steel plate for other floors (just for reference)
Configuration of landing door jambs:	standard miniature landing door jambs
Display unit of landing door:	adopting the advanced BESTER technology, -the digital display of the car location and running direction in the way of arrowhead (↑↓)
Hall call device:	adopting the advanced BESTER technology, -the cover plate is made of hair line finished stainless steel; micro button; LED dot-matrix display
Devices of car
Decoration of car walls:	high quality spray painted steel plate/ hair line finished stainless steel (just for reference)
Decoration of car ceiling:	in a standard mode
Car platform:	abrasion-proof plastic floorboard
Material of car door:	high quality spray painted steel plate/ hair line finished stainless steel (just for reference)
Lighting:	special light which is energy-saving and has high efficiency; sunlight illumination
Ventilating facilities:	air blower with micro noisy
Communication facilities:	concealed interphone
Inspection facilities:	under the car operating box
Display unit inside the car:	adopting the advanced BESTER technology, -the digital display of the car location and running direction in the way of arrowhead (↑↓)
Hall call device inside the car:	adopting the advanced BESTER technology, -the coverplate is made of hair line finished stainless steel; micro button; LED dot-matrix display
The way of opening:	2 panel center-opening door; 2P-CO.

Main function

1	Inspection operation	29	Over speed protection
2	Slow speed running	30	Contact protection for brake switches
3	Automatic door opening time adjustment	31	Interphone communication
4	Full load bypass	32	Wheeling protection
5	Automatic turn off lighting and fun	33	Alarm bell
6	Automatic return to home landing	34	Emergency lighting
7	Door re-closing	35	Level switch protection
8	Error recording	36	False call canceling
9	Hoist way self learning	37	Automatic reversal call canceling
10	Automatic door opening	38	Floor display directional setup
11	Attendant service	39	Isolate running
12	Bypass operation	40	Dot matrix floor indicator
13	Automatic correction of floor position signal	41	Rolling display of running direction
14	Lift locking	42	CAN communication protection
15	Protection of door lock up outside dooor area	43	Arrival gong
16	Infrared light curtain protection	44	Emergency return in case of fire
17	Over load protection	45	Main control protection
18	Reversal runing protection	46	Main control CPU WDT protection
19	Anti-skip protection	47	Discretional setup of service floor
20	Anti terminal switches protection	48	Test running
21	Anti-terminal over running protection	49	Clock control
22	Phrase protection	50	Direct landing
23	Contactor protection	51	Load weighting device
24	Failure analysis of shaft self learn	52	Full collective control
25	Motor temperature protection	53	Door opening button (external)
26	Door opening failure protection	54	Door opening button (internal)
27	Protection for door lock short circuit	55	Fire running function
28	Door lock failure for brake switches	56	camera function in the car

Civil parameter

Small machine room passenger lift specifications
No. of persons	Rated capacity (kg)	Rated speed (m/s)	Car net size	Door net size(DW*DH)mm	Shaft inside dimension			Machine room size	Max traveling height(m)
No. of persons	Rated capacity (kg)	Rated speed (m/s)	W*D(mm)	2P center opening	W*D(mm)	Pit depth	OH	WDH(mm)	Max traveling height(m)
6	450	1.0	1200*1000	700*2100	1750*1620	1500	4400	175016202500	45
8	630	1.0	1400*1100	800*2100	2000*1720	1500	4400	200017202500	45
8	630	1.6/1.75	1400*1100	800*2100	2000*1720	1600	4500	200017202500	96
10	800	1.0	1400*1350	800*2100	2000*2000	1500	4400	200020002500	45
		1.6/1.75				1600	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
13	1000	1.0	1600*1500	900*2100	2200*2150	1500	4400	220021502500	45
		1.6/1.75				1600	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180
15	1150	1.0	1700*1500	1000*2100	2300*2200	1500	4400	230021202500	45
		1.6/1.75				1700	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180
16	1250	1.0	1950*1400	1100*2100	2550*2100	1500	4400	260021002500	45
		1.6/1.75				1700	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180
18	1350	1.0	1950*1500	1100*2100	2550*2250	1500	4400	260022002500	45
		1.6/1.75				1700	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180
21	1600	1.0	1950*1750	1100*2100	2550*2500	1500	4400	260025002500	45
		1.6/1.75				1700	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180

Note: the parameter table shows the standard design of our elevator. We also can design elevator for you with your parameter.

WHY CHOOSE US?
1. Set up in 1979, 37 years manufacturing and exporting experience.
2. Professional technical global client center provides 24 hours service to solve your problems and questions on elevator.
3. Steady and durable use
3. CE, ISO14001, ISO9001, TUV, SGS authenticated

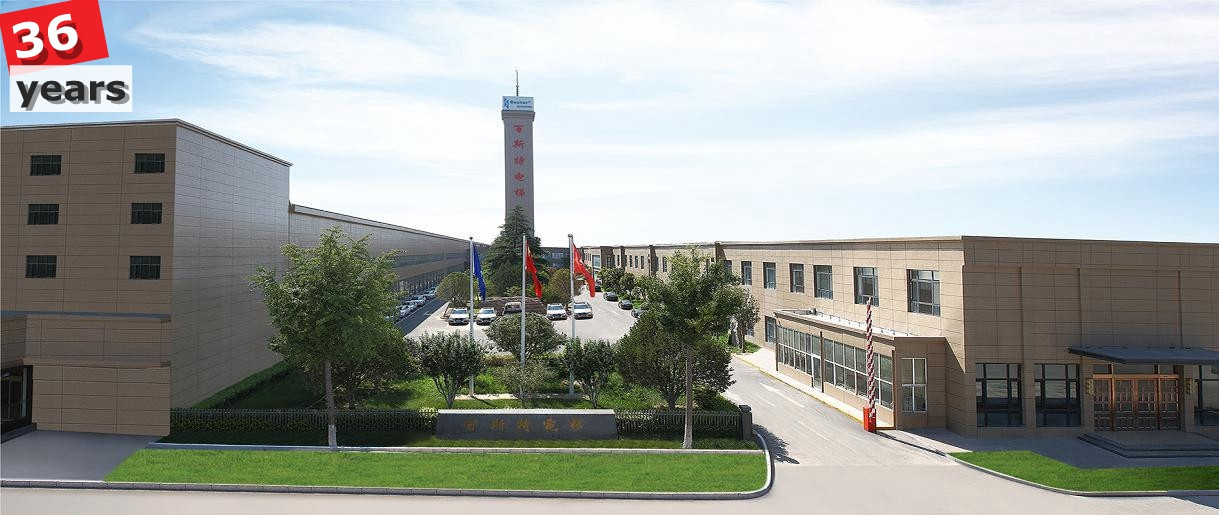

Factory showing

Shipping

Agent Wanted:
Welcome experienced elevator company as our distributors/agent to cooperate. We would like to provide our distributor/agent promotion price as reward for the cooperation. Contact with me if you are interested.

Control System:	Vvvf Elevator Control System
Date Of Delivery:	30day
Light Supply:	1 Phase, 220V, 50Hz
Others:	Over Load Buzzers, Gong on Var Roof
Attendant Control Ke:	Contain
Color:	Customer Required
Application:	Sightseeing
Driving Type:	AC Elevator
Capacity:	450kg ~ 2000kg
Persons:	6, 8, 10, 13, 19, 21 Persons
Speed:	1.0 -2.5m/S
Position Of Computer Room:	up and Without Machine Room
Elevator Door:	Center Opening and Side Opening
Door Knife:	Single and Double
