| Price: | US $ 662.69-735.59/Piece |
|---|---|
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union |
PC Kayaks Features:
1. Light trasmission: up to 82%
2. Impact resistance: 250 ~ 300 times that of same thickness glass, 30 times that of acrylic sheet.
3. Light weight: only 1/12 of the weight of glass at same thickness.
4. Flame resistance: B1 grade
5. Ultraviolet resistance: with UV protective layer.
6. Environment friendly
PC Kayaks Impact Resistant Test:
PC Kayaks Details:
| Size(cm) | 3350 (L) X850 (W) X300 (depth)mm |
| Hull Thickness(mm) | 6mm |
| Hull Material | 100% Virgin Imported GE Lexan Materia |
| Frame | T6 6061 Anodized Aluminum |
| Kayak with Accessories N.W. | 25kg |
| Accessory Including | 1 hull kayak,2 seats,2 floatings(PVC),2 paddles(fiberglass),2 balance beams(carbon fiber) |
| Capacity weight | 195KGS(450 Pounds) |
| Capacity person | 2-3 |
| Waranty of material | 10years |
Polycarbonate Characteristics:
| No. | Characteristics | Unit | Data |
| 1 | Impact Strength | J/m | 850 |
| 2 | Light Transmission | % | 85 |
| 3 | Specific Gravity | g/cm3 | 1.2 |
| 4 | Coefficient of Thermal | mm/m °c | 0.065 |
| 5 | Service Temperature | °c | -40 to +120 |
| 6 | Heat Conductivity | W/m2°c | 2.3-3.9 |
| 7 | Tensile Strength | N/mm2 | >60 |
| 8 | Flexural Strength | N/mm2 | 100 |
| 9 | Modulus of Elasticity | MPa | 2400 |
| 10 | Tensile Stress at Break | MPa | >65 |
| 11 | Elongation at Break | % | 100 |
| 12 | Specific Heat | kj/Kgk | 1.17 |
| 13 | Heat Deflection Temperature | °c | 140 |
| 14 | Effect of Soundproof | dB | 3-4 |
Applications:
Hotels, resorts, water sport rental companies, vacation homes, individual enthusiasts, etc.
Assembling Steps:
Step 1: Take out the assembling manual from enclosed plastic bag.
Step 2: Insert the frame inside the hull and line it up with the holes.
Step 3: Fasten the middle crossbar to the hull.
Step 4: Fasten the rest of the frame to the hull using the washers, hand-knobs and eye bolts. Ensure the nylon washers are on each side of the hull to protect the Lexan hull

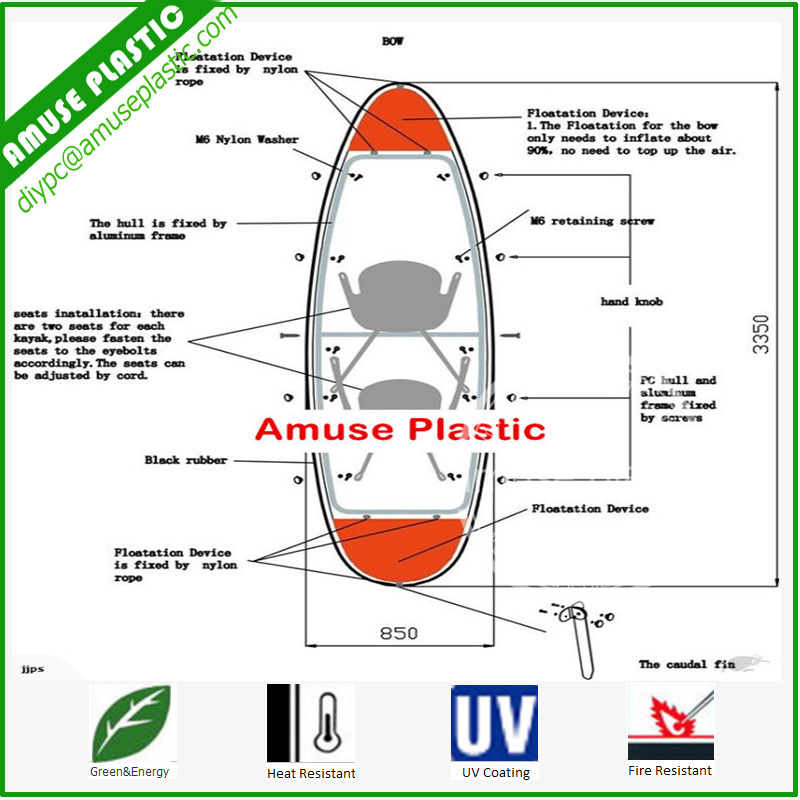

Step 5: Clip the seats to the eye bolts. For the correct seat arrangement see the diagram at the top of this page. Tighten the straps to desired fit.
Step 6: Inflate the flotation bladders (just 60% full to function properly). Secure them to the hull of the boat with the elastics and clips.
Step 7: Align the skeg assembly with the holes on the stern of the kayak. Attach the skeg with the bolts and tighten with an allen key.
Step 8: Use the remaining elastic to secure the skeg. Thread it through the hole in the skeg and loop it around the hand-knobs, using the bronze-colored fasteners to tighten it.
Step 9: To assemble the paddle connect the 3 metal pieces with the 2 plastic connectors. ( an extra metal piece for you to turn your paddle into two separate oars if want).
Step 10: Fixed! Enjoy your kayak paddling.
Packing & Loading:
Amazing outdoor sea discovery life begins with our Amuse PC Transparent Clear Kayaks! Let's Enjoy!
| Prod Model: | APPK-34 |
|---|---|
| Thickness: | 6mm |
| Light Transmission: | up to 88% |
| Quality: | Grade a |
| Stability: | High |
| Frame Material: | T6 6061 Anodized Aluminum |
| Net Weight: | 25kgs |
| HS Code: | 8903990090 |
| Capacity (Person): | 2-3 |
| Capacity: | 250kgs |
| Length: | 3.35m |
| Hull Material: | Polycarbonate |
