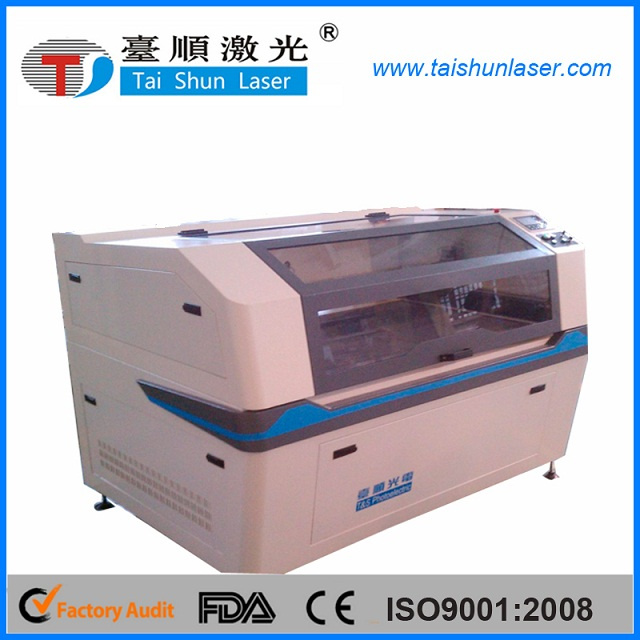

ISO Approved Rubber CO2 Laser Cutting Machine

Product parameter:

Laser type	Glass CO2 laser tube	Movement system	stepping motor system
Output power	80W	Cooling system	Water cooling
Working area	1800x1000mm	Electrical Voltage	AC220V+-5% 50/60hz
Working table	Conveyor working table	Supported file format	AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF
Working speed	Adjustable	Standard accessories	1 set 550W exhuast fans
Position accuracy	plus minus 0.1mm	Optional accessories	100w,130w,150w laser tube,auto feeding system,water chiller
CCD single screen view range	120x80mm	Connect interface	USB

Feature:
1, It's customized for various types materials'cutting for embroidery,sportswear,printing insoles,shoes,crafts,etc

2, It's good to cut any shapes without fringe and sewing automatically.

3,Converyor working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.

4,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.

5, DSP control system support online and offline data transferring.


Why our product better than other similar product?
1.International quality certificate:CE,FDA,SGS,ISO9001:2008,BV
2. Professional laser machine supplier in China with 12 years experience,over 80 type machines.
3. Adopt Japan imported mainboard and chip .
4. Adopt Germany imported bearing and high accuracy stepping belt.
5. The reinforced and thickened machine body ensure the long working process stable and withstand quake
6 High Precision Stepping motor makes cutting and engraving more precise.

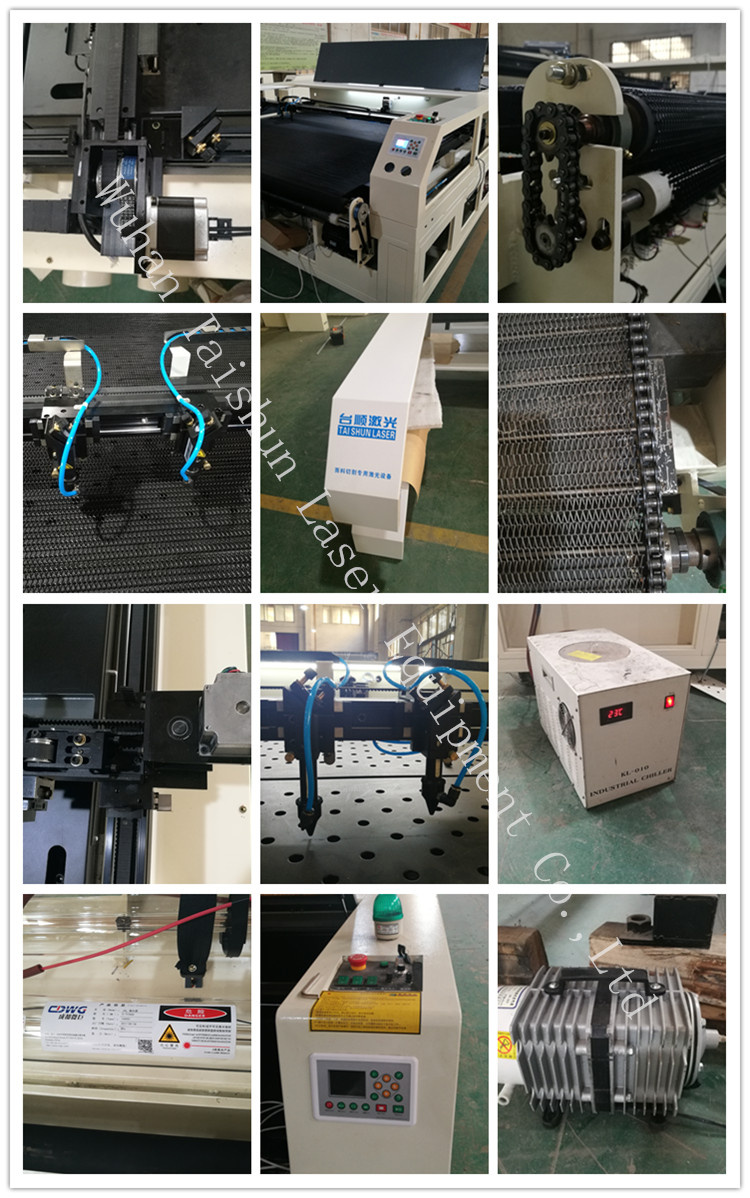

Part description	Brand	Characteristic
Linear guide	Taiwan Hiwin	1)High accuracy for positioning  2) Less abrasion and maintain accuracy for a long time; 3) for high speed movement and significantly reduce the required horsepower of drive machine;  4) can withstand the load from vertical and horizontal directions;  5) Easy assembling and with interchangeability;  6) simple lubrication structure
Transmission belt	Shanghai Fulong	Low noise , high transmission accuracy
Laser tube	Weiju	Domestic famous good brand with long lifespan
reflector Mirror and focus lens	America IIV(Diameter is 30mm)	long life span,precise focusing
Water Chiller	TEYU	alarm protection function,constant running
Ball Screw Rod	Taiwan TBI	enhance position accuracy
bearing	Japan NSK brand	high precision

FAQ:
Q1.What's the guarantee for the product quality?
 We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.

Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.

Q3. What i need to do when the machine suffer trouble?
A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.

Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.

Q5 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months

Q6: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.

Q7:Is it better to increase blow system to improve laser processing performance?
A: It works for some kind materials,it can stop firing

Q8: How long time does it take for a learning of the laser machine operation ?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.

Q9: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.

Q10: Does it need to be connected by a laptop or computer ?
A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.

Q11:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting



Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the material used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
